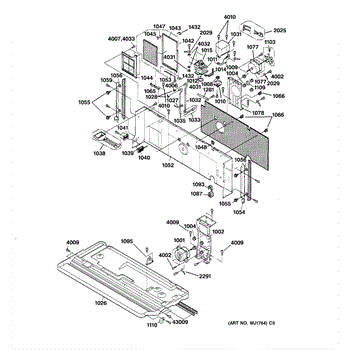

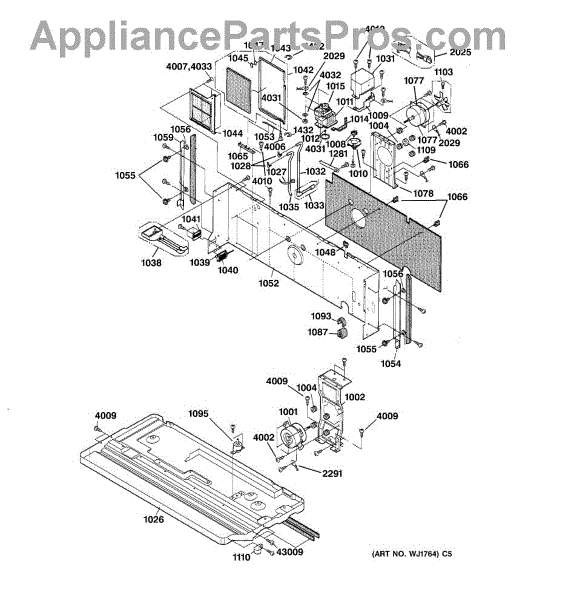

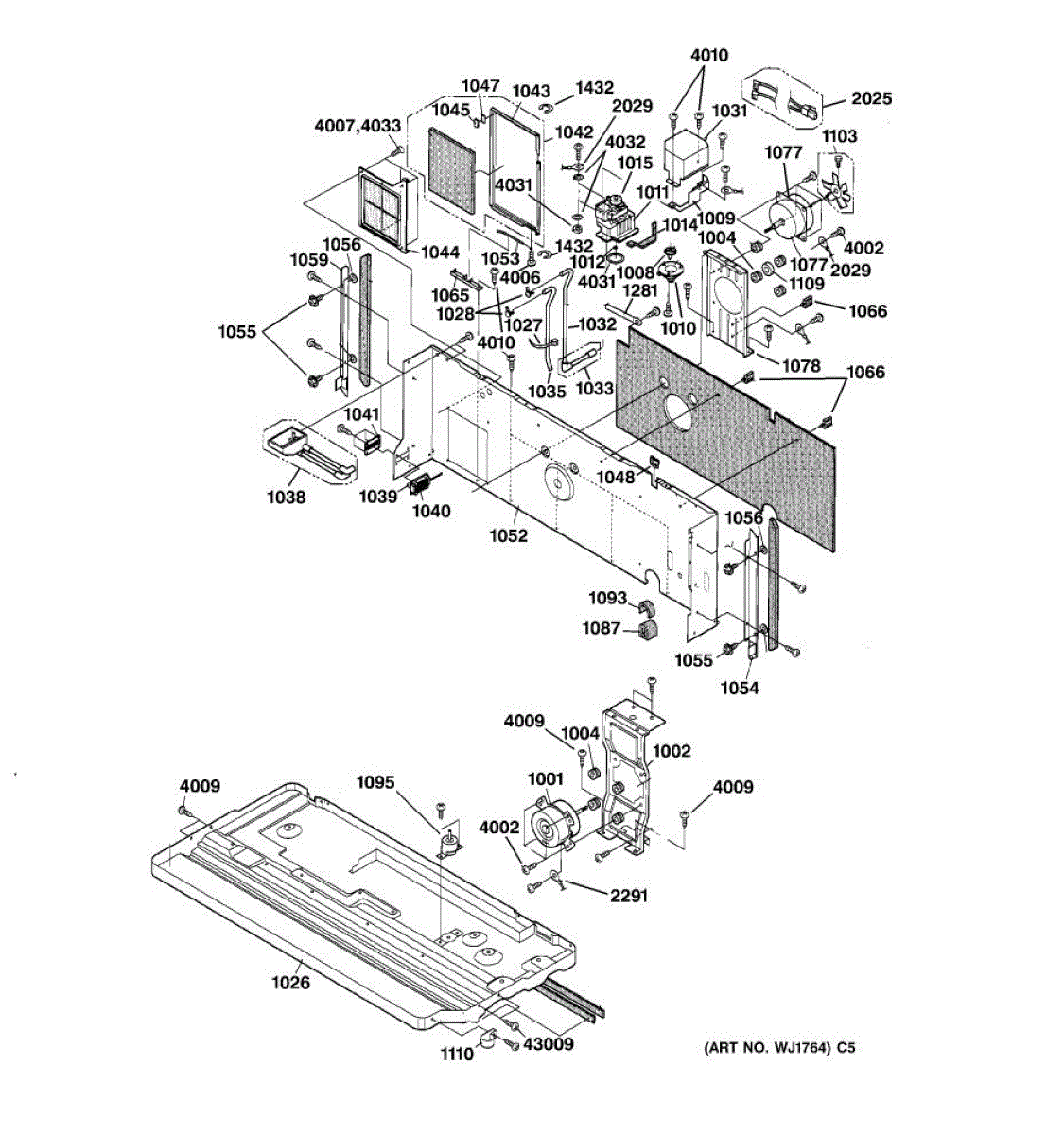

Parts for Ge AZ32H09D2DM1: 03 - Section3 Parts

Fix weak airflow or no cooling in your air conditioner with this fan motor replacement. Common fix for units that run but don't cool properly.

Rubber cushion that mounts between the air conditioner motor and housing to reduce vibration and noise. Replace if cracked, compressed, or missing.

This pump housing cover protects and seals the appliance drain/pump assembly to help direct water flow and prevent leaks. It replaces a worn or damaged cover to restore proper drainage and reduce water under the appliance. What it does:

• Seals the pump housing so water drains through the pump instead of leaking out
• Helps maintain correct flow path for the drain system
• Common replacement for symptoms like leaks under the appliance or water pooling after cycles
• Can be needed if cover is cracked, warped, or the pump seal area is damaged

• Disconnect power and water supply before starting any repair
• Drain remaining water from the appliance and work on a dry surface
• Remove access panels and mounting hardware to reach the pump housing; keep fasteners for reassembly
• Inspect sealing surfaces and gaskets; replace any damaged seals to ensure a leak-free fit; test appliance after reassembly

This replacement fan housing secures the evaporator fan motor and blade assembly to restore proper airflow inside the freezer compartment, helping the appliance maintain consistent cooling and temperature control. What it does:

• Holds the evaporator fan motor and blade in the correct position to direct airflow across the evaporator coils
• Restores stable, quiet fan operation when a cracked or damaged housing causes vibration or rubbing
• Helps improve cooling consistency when airflow has been disrupted
• Prevents contact between the fan blade and cabinet that can cause noise or motor strain

• 1 fan housing

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels or the evaporator cover; keep fasteners organized
• Inspect the fan blade and motor during install; replace any damaged components to prevent repeat failure
• Do not overtighten mounting screws; ensure the fan spins freely after installation

This base pan assembly replaces the dryer's lower cabinet panel to restore chassis support and provide a secure mounting surface for internal components. It helps keep internal parts protected and aligned for reliable operation. What it does

• Replaces damaged or rusted lower cabinet/base pan to restore structural support
• Provides a stable mounting surface for motor mounts, controls and other internal parts
• Helps protect internal components from lint, debris and moisture that can collect in the cabinet
• Can reduce rattles or misalignment caused by a bent or corroded base

• One base pan assembly

• High-level replacement: involves removing the dryer cabinet or front panel
• Disconnect power (and gas supply if applicable) before starting any work
• Use appropriate tools and fasteners; inspect adjacent seals, clips and mounts during service

Special mounting screw for air conditioner assembly. Secures internal components and panels. Replace if stripped, missing, or damaged during maintenance.

Rubber washer for air conditioner unit assembly. Installs between components to create seal and reduce vibration. Replace if cracked, worn, or missing.

This wire fixing band is a small retainer clamp that secures wiring harnesses and individual wires to appliance chassis to prevent rubbing, pinching, or accidental disconnection. It helps protect wiring from damage and reduces electrical faults. What it does:

• Holds wiring harnesses and loose wires in place to prevent contact with hot or moving parts
• Reduces wear from vibration and movement that can cause frayed insulation or shorts
• Helps maintain safe routing of wires to avoid pinch points and strain on connectors
• Commonly used where a simple clipped band or strap is needed to fasten wires to sheet metal

• Inspect surrounding wiring and connectors before installation; replace damaged wires or insulation
• Secure the band to the designated chassis hole or stud without over-tightening to avoid crushing wires
• Disconnect power before accessing wiring and follow all appliance safety procedures

Fix water pooling or leaking from your air conditioner with this drain valve. Restores proper condensate drainage in minutes with basic tools.

Replacement wire holder for air conditioners. Secures and organizes internal wiring. Order a new holder if yours is cracked, broken, or missing.

This icemaker lead wire supplies electrical connection between the icemaker module and the refrigerator wiring, restoring power and signal for reliable ice production. It's a direct-replacement harness used in affected GE refrigerators. What it does

• Provides the electrical connection that powers and signals the icemaker module
• Restores icemaker operation when a damaged or broken harness prevents cycling
• Helps stop intermittent ice production, no-power, or non-cycling icemaker symptoms
• Matches OEM connector ends and routing for a like-for-like replacement

• Disconnect refrigerator power before inspecting or replacing the harness
• Verify connector orientation and full engagement to avoid loose connections
• Route the harness following original wiring paths and secure clips as needed

Special mounting screw for air conditioner assembly. Replace if screw is stripped, missing, or damaged during maintenance or installation work.
