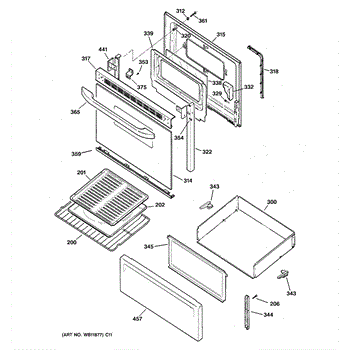

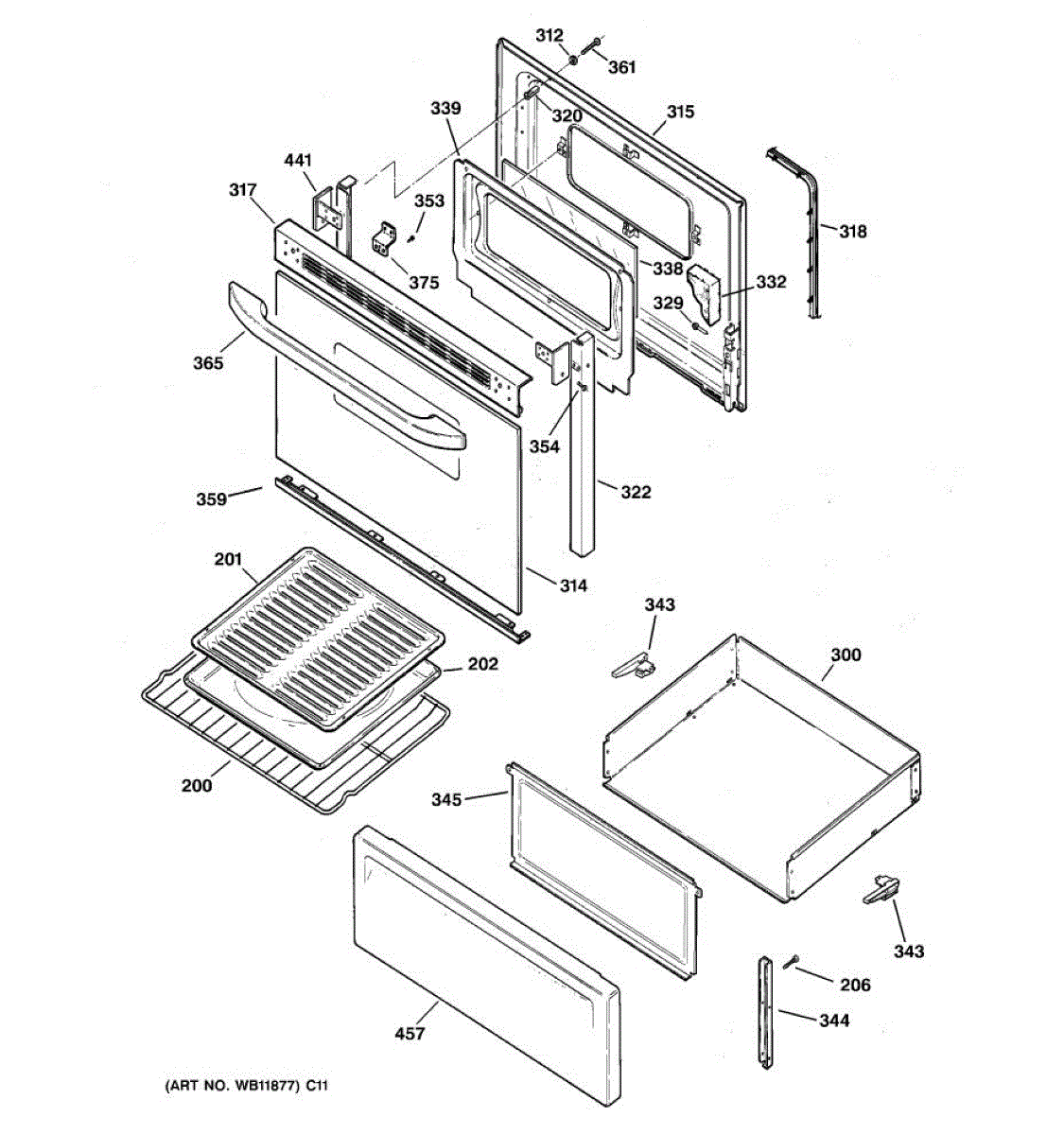

Parts for Ge RB536CH3CC: 03 - Door & Drawer Parts

Replacement oven rack for electric and gas ranges. Installs inside oven cavity. Needed when original rack is missing, damaged, or warped from use.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Size: 10-32 GXTT FLP.595 S

Includes 12 washers.

Replacement outer glass panel for range oven doors. Restores clear viewing area when original glass is cracked, broken, or fogged. Bisque color finish.

Seals your oven door to retain heat and maintain proper cooking temperature. Replace if torn, brittle, or heat escapes. Clips into place in minutes.

Spacer that fits between mating parts in your range or oven to maintain proper clearance and alignment. Replace if worn, missing, or damaged to prevent rubbing.

Includes 12 screws.

Insulation that installs on the side of your range door to reduce heat transfer and dampen sound. Replace if worn, torn, compressed, or missing.

Replaces cracked, shattered, or heat-damaged inner glass pane in your range oven door. Restores insulation, visibility, and protects from spills.

Insulation guard that installs inside the oven door assembly to protect internal components. Replace if cracked, torn, or missing during door maintenance.

Right-side drawer glide supports and guides your range's lower drawer for smooth operation. Replace if broken, cracked, or worn to restore alignment.

Plastic support guide that mounts to the rear of your range storage drawer. Replace if cracked, broken, or missing to keep drawer aligned and gliding smoothly.

Replaces the warming drawer cover on your electric range. Order a new cover if yours is cracked, broken, discolored, or missing to restore appearance.

Replacement mounting screw for range panels, brackets, and trim. Restores secure fit when original fastener is missing, stripped, or damaged.

This mounting screw secures an appliance end cap or trim piece, keeping covers and brackets fastened for safe, stable operation. It's a direct-fit replacement used when the original screw is lost, stripped, or damaged. What it does:

• Secures the end cap or trim to the appliance frame to prevent gaps and movement
• Stops rattling or vibration caused by a missing or worn screw
• Holds covers in place to protect internal components from debris
• Restores proper fit and alignment of the end cap/trim

• Disconnect power before servicing the appliance
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and tighten until snug—do not overtighten
• Replace damaged screws or threaded inserts to ensure a secure fit

Replacement mounting screw for range panels, brackets, and trim. Restores secure fit when original fastener is missing, stripped, or damaged.

Replaces cracked, rusted, or missing bottom trim on your range oven door. This decorative trim piece installs along the lower door edge for a finished look.

Includes 12 screws.

Secures the door panel to your range. Replace if the bracket is bent, cracked, or broken, causing the door to sag or misalign during use.

Bisque-colored drawer panel that restores the front appearance of your range drawer. Replaces cracked, chipped, faded, or dented drawer fronts.
