Parts for Amana CARDS801E / P1131936N E: 03 - Electrical Components Parts

Parts for Amana CARDS801E / P1131936N E: 03 - Electrical Components Parts

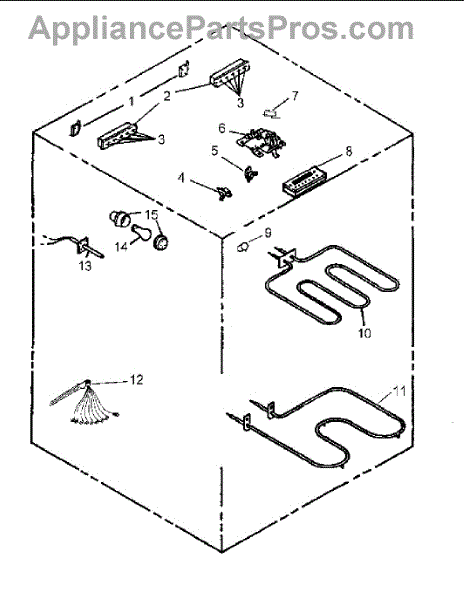

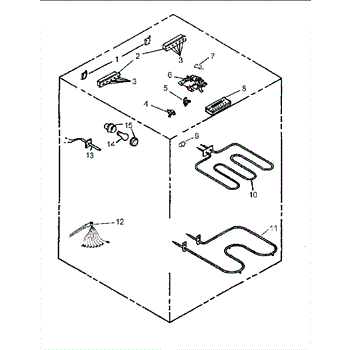

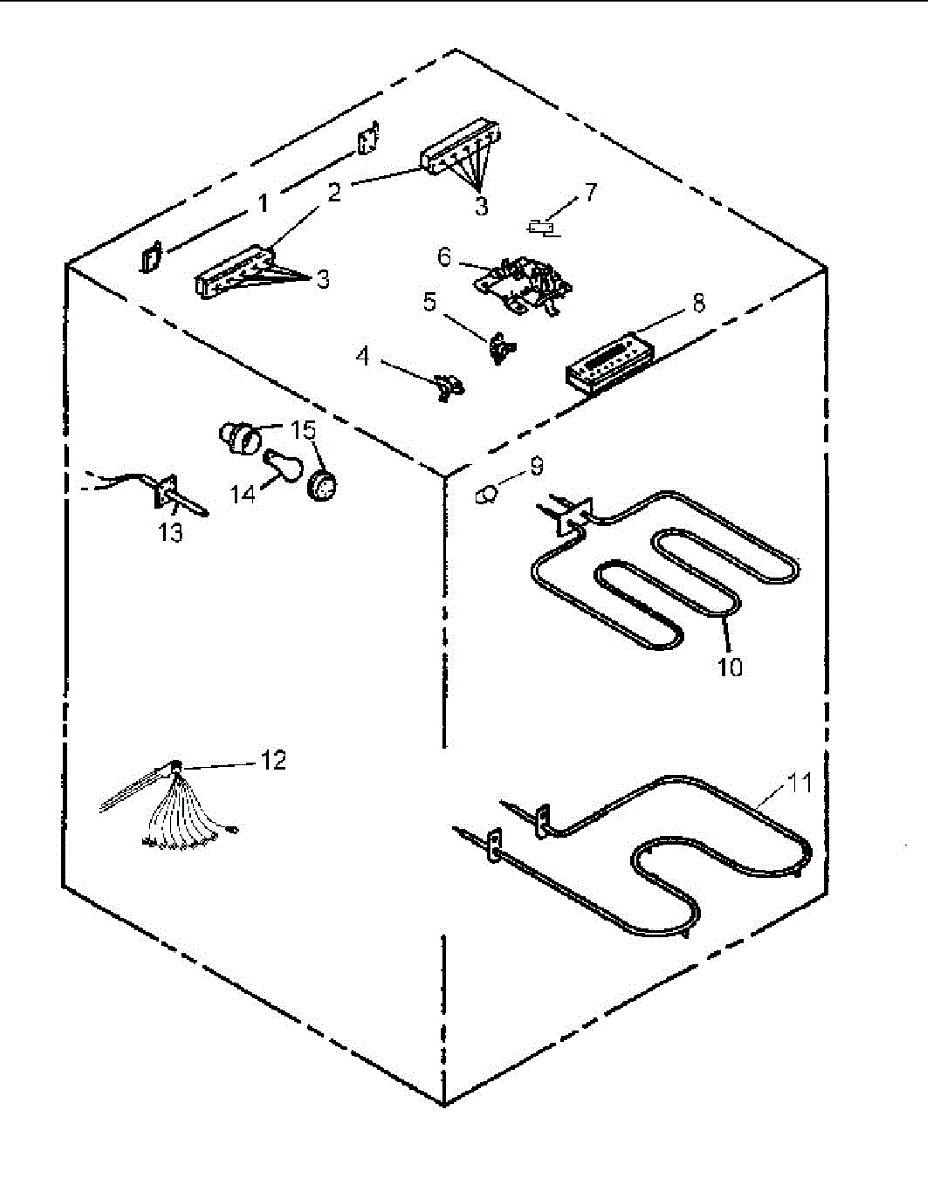

Location on Diagram
Part Description
Price & Availability
1
By: Whirlpool
Part Number: Y0054254
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2
By: Whirlpool
Part Number: Y0042210
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3
Product photo
By: Whirlpool
Part Number: Y0042123
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4
By: Whirlpool
Part Number: Y0042045
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5
By: Whirlpool
Part Number: 31933001
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6
By: Maytag
Part Number: 0314960
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7
Product photo
By: Whirlpool
Part Number: Y0065780
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

8
Product photo
By: Whirlpool
Part Number: Y0315030

The oven control board is the electronic brain located behind the control panel that manages all oven functions including temperature, timing, and cooking modes. Replace it if the oven won't heat, displays error codes, or if buttons don't respond properly.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

9
Product photo
By: Whirlpool
Part Number: 866294
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

10
Product photo
By: Whirlpool
Part Number: 77001097
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11
Product photo
4.9 (16)
By: Whirlpool
Part Number: WP77001096

This lower bake element supplies the primary heat for Bake cycles, restoring consistent oven temperatures and even results. Replace a burned-out or damaged element to resolve no-heat on Bake, extended preheat times, and undercooked food.

  • Heats the oven cavity from the bottom during Bake cycles for proper cooking
  • Restores heat when the original element is burned out or broken
  • Common symptoms: no heat on Bake, very long preheat, uneven or undercooked results
  • Visible damage such as blistering, cracks, or breaks indicates replacement
What's included: 1 bake element Installation notes:
  • Disconnect power at the breaker before servicing
  • Remove oven racks, take out the element's mounting screws, and gently pull the element forward
  • Transfer the two wires one at a time; do not allow wires to slip behind the oven liner
  • Reinstall the element and screws, restore power, and test Bake
If the oven still won't heat after replacement, check the thermal fuse, wiring connections, and control/relay.

More
$36.95

IN STOCK
Ships Tomorrow Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
12
By: Whirlpool
Part Number: Y0316154
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13
Product photo
4.6 (13)
By: Whirlpool
Part Number: WPY0314907

Fix F2 or F3 error codes with a new temperature sensor. Restores accurate oven temperature control. Most DIYers complete this repair in under 30 minutes.

More
$109.42

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
14
Best Seller
Product photo
4.9 (376)
By: Whirlpool
Part Number: 8009

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

  • Dimming or flickering light
  • Complete lack of illumination inside the appliance
  • Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

More
$19.55

IN STOCK
Ships Tomorrow Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
15
Product photo
4.9 (15)
By: Whirlpool
Part Number: WP74011278

Illuminates oven interior for monitoring cooking without opening the door. Replace if light fails, socket cracks, or bulbs blow frequently. Verify fit.

More
$79.26

IN STOCK
Ships Tomorrow Guaranteed

Most orders arrive by Tuesday, November 24

Add to Cart
NI
By: Whirlpool
Part Number: Y0091523
$7.45

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
