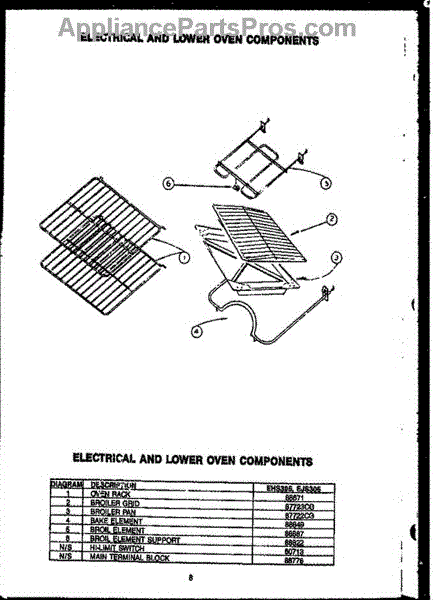

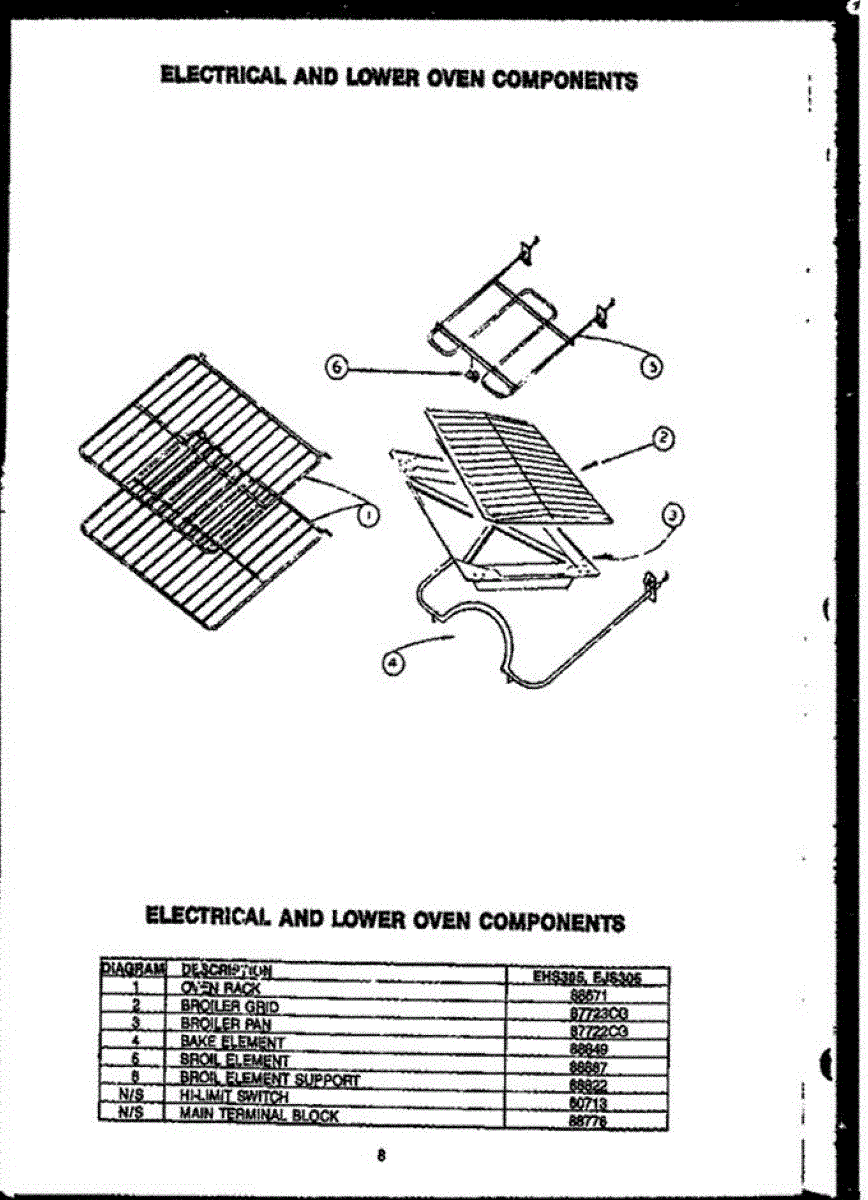

Parts for Amana EJS306: 03 - Electrical And Lower Oven Components Parts

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 30 in. bake element is the oven's lower heating element that produces the heat needed for baking and roasting. Replace a damaged element to restore proper oven heating and even bake results. What it does:

• Heats the oven cavity from the bottom to provide baking and roasting temperatures
• Promotes even browning and consistent cooking when functioning correctly
• Common symptom: oven does not reach set temperature or won't heat at all
• Common symptom: uneven baking, cold spots, or visible breaks/burn marks on the element

• One 30 in. bake element

• Disconnect power to the appliance before starting any work
• Allow the oven to cool completely and wear gloves to protect hands from sharp edges
• Inspect and reconnect wiring securely; replace if wiring or terminals are damaged
• Follow the appliance manufacturer's instructions for removing oven racks, access panels, and securing the element

This terminal block is the insulated connection point where the appliance's incoming power ties into the internal wiring. Replacing a heat-damaged or loose block restores a safe, reliable electrical path and helps prevent arcing and intermittent power loss.

• Connects the supply conductors to the unit's internal wiring
• Provides insulated posts to securely fasten and distribute power
• Helps maintain tight, low-resistance connections
• Common failure signs: melted/discolored plastic, burned or loose terminals, arcing, scorching, or intermittent/no power after confirming the cord and breaker

• Disconnect power at the breaker or unplug the appliance; verify no voltage before servicing
• Photograph or label wire positions to ensure correct reassembly
• Inspect and replace any heat-damaged wire ends or lugs; use appropriate terminals
• Tighten connections securely and ensure wires are fully seated and strain-relieved as originally installed
