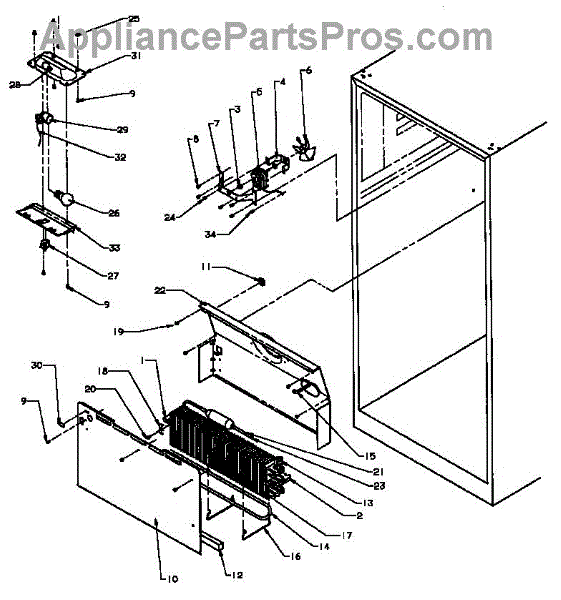

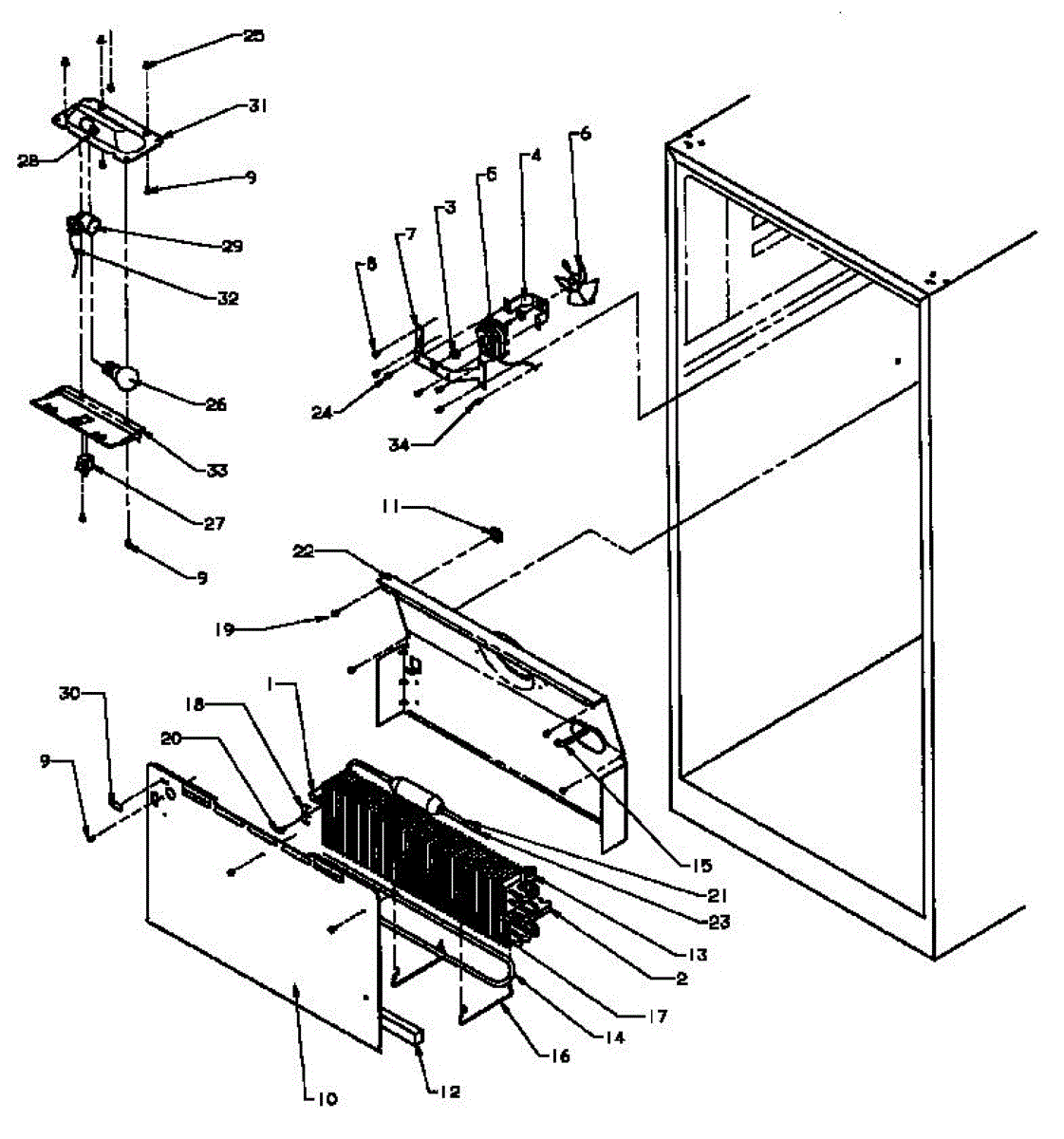

Parts for Amana 85375 / P1117206W E: 03 - Evap Area Parts

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

This evaporator fan motor drives airflow across the evaporator coils and circulates chilled air throughout the cabinet. Replacing a weak or noisy motor restores proper air circulation, helping stabilize temperatures and overall cooling performance.

• Circulates air across the evaporator and distributes it between the freezer and fresh-food sections
• Helps maintain even temperatures and consistent cooling
• Common symptoms: fan not running or intermittent, loud humming/squealing/rattling from the freezer area
• Presents as weak airflow from vents or a warm refrigerator section while the freezer seems colder

• Disconnect power before servicing to avoid electrical shock
• Access the motor behind the rear freezer panel; remove shelves/bins and panel as needed
• Transfer the existing fan blade, bracket, grommets, and wiring connectors from the old motor if required
• Match wire orientation, secure the motor, ensure the blade spins freely and blows the correct direction before reassembly

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

A replacement door gasket that restores a tight seal around the oven door to help maintain proper cooking temperature and improve efficiency. Fits Whirlpool ovens and ranges that use part A3189394. What it does

• Seals the oven cavity to reduce heat loss and help maintain consistent cooking temperatures.
• Helps prevent heat from escaping around the door, improving energy use and cook results.
• Worn, torn, or flattened gaskets can cause uneven baking or longer cook times.
• Replacing a damaged gasket can reduce hot spots on the exterior and nearby cabinetry.

• Disconnect power and ensure the oven is completely cool before starting.
• Remove the old gasket by pulling it out of the door channel; clean the channel before installing the new gasket.
• Press the new gasket into the channel around the full perimeter, working from one corner and ensuring an even fit.

The Defrost Thermostat is an OEM part for Whirlpool refrigerators. It monitors the temperature of the evaporator coils and triggers the defrost cycle when the coils get too cold, preventing frost buildup and ensuring efficient cooling.  It operates by closing the heater circuit to initiate the defrost cycle. It opens the circuit when the temperature rises above 55 degrees Fahrenheit. It then resumes operation when the temperature drops to 20 degrees Fahrenheit.

Causes of a bad defrost thermostat can include regular wear and tear, exposure to moisture, or electrical issues. Over time, the thermostat may lose accuracy or stop working altogether, leading to frost accumulation or inefficient cooling.

Symptoms of a bad defrost thermostat include:

• Excessive frost buildup in the freezer
• The refrigerator running continuously or not cooling properly
• The defrost heater not activating
• The refrigerator cycling on and off frequently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
