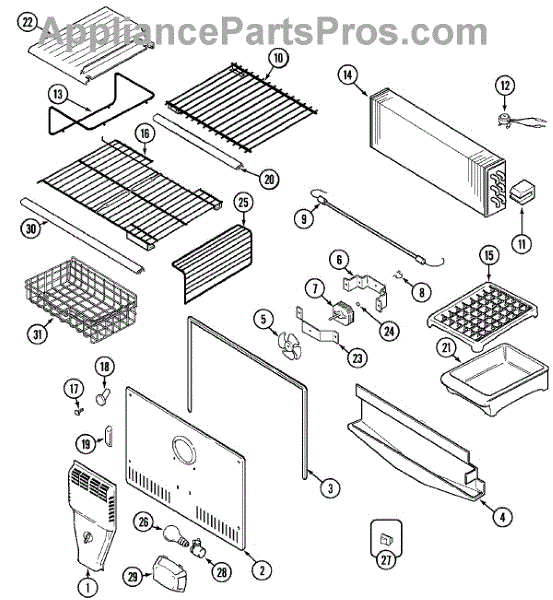

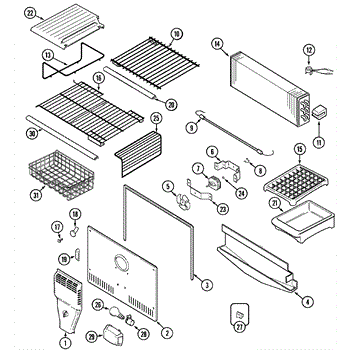

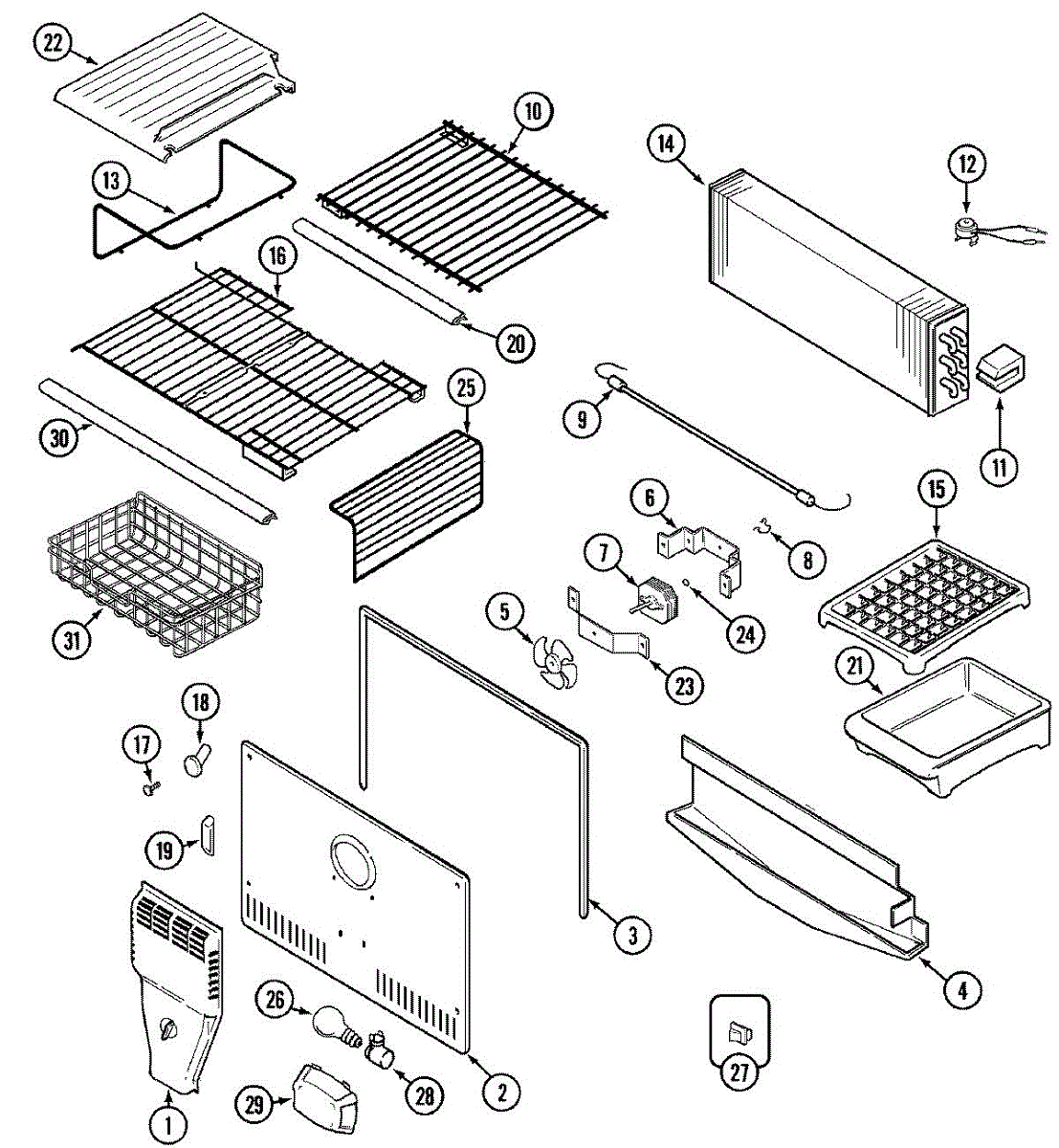

Parts for Maytag MTB2656FEB: 03 - Freezer Compartment Parts

Size: 8 x 1-1/4 inch.

This seal strip replaces a worn or damaged door gasket edge to restore a proper seal and help the appliance maintain temperature and operate quietly. It's a direct-fit service part used where a continuous seal is required. What it does:

• Provides a flexible barrier along the door/frame to reduce air leaks and heat/cold loss
• Helps prevent moisture buildup and improves energy efficiency when sealing is restored
• Reduces rattling and vibration caused by a compressed or torn seal edge
• Commonly replaced when the strip is torn, missing, or no longer adheres properly

• One seal strip

• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Clean and dry the mounting surface; remove old adhesive or residue for best adhesion
• Align the strip carefully and press firmly; allow any adhesive to cure per manufacturer instructions

Size: 8-32 x .312 inch.

This evaporator fan motor circulates cold air across the evaporator coils and through the freezer and fresh-food sections to maintain even temperatures. Replacing a failed or noisy motor restores proper airflow and dependable cooling performance.

• Drives the evaporator fan blade to move air over the coils and throughout the cabinet
• Helps maintain consistent temperatures between freezer and refrigerator compartments
• Failure symptoms include weak/no airflow, the fan not running, loud squealing/rumbling, or the fresh-food section warming up
• Poor airflow can also lead to frost or ice buildup on the freezer back panel

• Disconnect power before servicing; wear cut-resistant gloves and eye protection
• Access the motor behind the freezer's rear panel; use caution around sharp metal and evaporator fins
• Note wire positions; transfer the fan blade and any brackets/grommets from the original motor; secure wiring connections
• Ensure the blade spins freely; engage the door switch when testing and strong airflow after reassembly

This defrost thermostat is the temperature limit switch for the evaporator. It lets the defrost heater run when coils are icy and opens as they warm to end the cycle, helping stop frost buildup and restore steady cooling.

• Monitors evaporator temperature; closed when cold to allow the defrost heater to energize
• Opens as the coil warms to terminate defrost and protect components from overheating
• Failure may cause heavy frost on the back wall/evaporator and weak airflow or a warm refrigerator section
• Can also lead to long run times or cooling that returns only briefly after a manual defrost

• Unplug the refrigerator or disconnect power before servicing
• Located behind the freezer's rear panel on the evaporator; remove shelves/ice bin and panel to access
• Reinstall in the same position/clip for firm contact with the coil or tubing
• Make secure, insulated wire connections and route wiring away from sharp edges and moving parts

The Ice Cube Tray is an OEM part for Whirlpool refrigerators. This tray is designed to fit securely in the freezer compartment and is used to form and hold ice cubes. The tray ensures that ice cubes are consistently shaped and easily removable for everyday use. The tray measures about 8-1/2 inches wide by 11 inches deep.

Over time, ice cube trays can become damaged or worn due to repeated use, exposure to cold temperatures, or mishandling. Cracks or warping in the tray can lead to leaks or difficulties in removing the ice cubes.

Symptoms of a bad ice cube tray include:

• Cracked or broken sections
• Difficulty in removing ice cubes
• Leaks or water pooling in the freezer
• Misshapen or irregular ice cubes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Size: 8-32 x .312 inch.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This wire harness routes power and signals to freezer components so the compartment operates reliably. It replaces a worn or damaged freezer wiring assembly to restore electrical connections and help eliminate intermittent or nonworking circuits. What it does:

• Provides factory routing and connectors for freezer components so parts receive correct power and signals
• Restores lost or intermittent electrical connection that can cause fans, lights, or controls to stop working
• Helps prevent shorts from damaged or frayed wiring that can lead to component failures
• Supports normal defrost and cooling functions by maintaining proper wiring continuity

• One freezer wire harness

• Disconnect power to the appliance before starting any work to avoid shock or injury
• Match connector types and routing to the original harness; do not force connectors or bend terminals
• Secure wiring away from moving parts and sharp edges to prevent chafing
