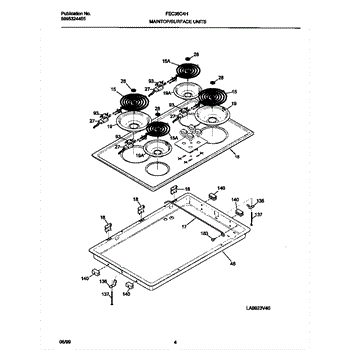

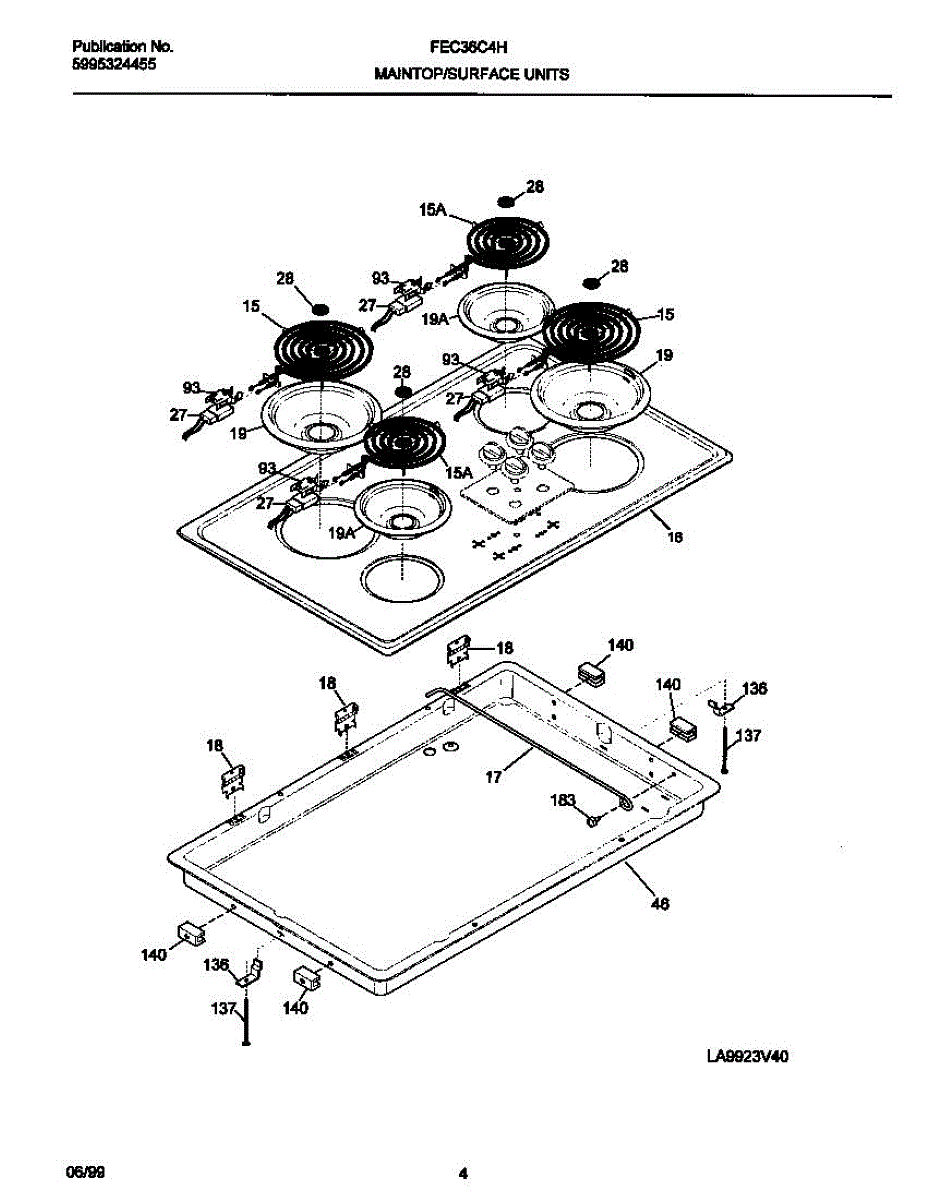

Parts for Frigidaire FEC36C4HCA: 03 - Maintop / Elements Parts

This is the large surface heating unit for an electric range or cooktop. Replacing a failing unit restores consistent stovetop heat so cookware warms predictably and meals cook evenly.

• Provides the heat source for the large burner position on an electric cooktop
• Converts electrical energy into controlled cooking heat
• Replace if the burner won't heat, heats intermittently or unevenly, or shows visible breaks, blistering, or burn spots
• Loose, pitted, or discolored terminals can also indicate the unit is failing

• Disconnect power to the appliance before servicing and allow all components to cool completely
• If your model uses plug-in coils: lift slightly and pull the old unit straight out of the receptacle; align and push the new unit straight in until fully seated
• Inspect the burner receptacle for heat damage before reassembly
• Restore power and test operation on low and high settings

The Large Chrome Drip Pan is an OEM replacement part for Frigidaire cooktops, designed to fit beneath the burner elements. It is responsible for providing a clean surface and maintain cleanliness. The drip pan catches spills and drips that occur during cooking, preventing them from reaching the interior of the stove where they can become burnt-on and difficult to clean. This large chrome drip pan measures approximately 8 inches in diameter.

Causes of a bad drip pan can include frequent exposure to high heat, spills, and regular cleaning, which can lead to discoloration, warping, or rust over time. When the drip pan becomes damaged or worn out, it may no longer effectively catch spills or reflect heat, affecting both cleanliness and cooking performance.

Symptoms of a bad part include:

• Visible signs of damage, wear, rust, or corrosion on the drip pan
• Uneven stove element
• Difficulty cleaning spills and grease accumulating on the pan
• Unsightly appearance of the stove
• Difficulty cleaning the stove surface

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This clip secures the appliance's terminal block to the chassis, keeping wiring stable and preventing strain on electrical connections. It's a small, durable mounting clip used where the terminal block needs a fast, reliable hold. What it does:

• Holds the terminal block firmly to the appliance frame to reduce wire movement and wear
• Helps maintain safe, stable electrical connections by preventing strain on terminal wires
• Prevents the terminal block from shifting during use or service
• Compatible with standard terminal block locations that use a push-in or snap-mount clip

• One terminal block mounting clip

• Always disconnect power before accessing or servicing electrical components
• Remove access panels and locate the terminal block; clip typically snaps into a chassis slot or aligns with an existing mounting boss
• Handle wiring and terminals gently to avoid loosening connections; verify all wires are secure after reinstall

This is a replacement mounting screw used to secure appliance panels, brackets, and components. Replacing worn or missing screws restores proper fit and reduces rattles or loose parts for safe, stable operation. What it does:

• Secures panels, brackets, trim, or small components in place
• Helps eliminate rattling, vibration, and loose or misaligned parts
• Restores proper fastening after maintenance or part replacement
• Matches the appliance's original fastener style for correct fit

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent thread or component damage
