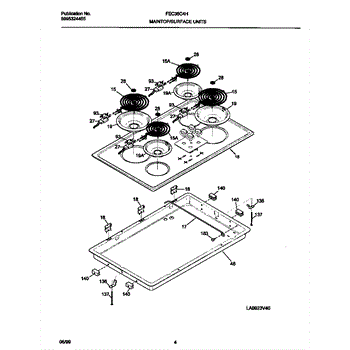

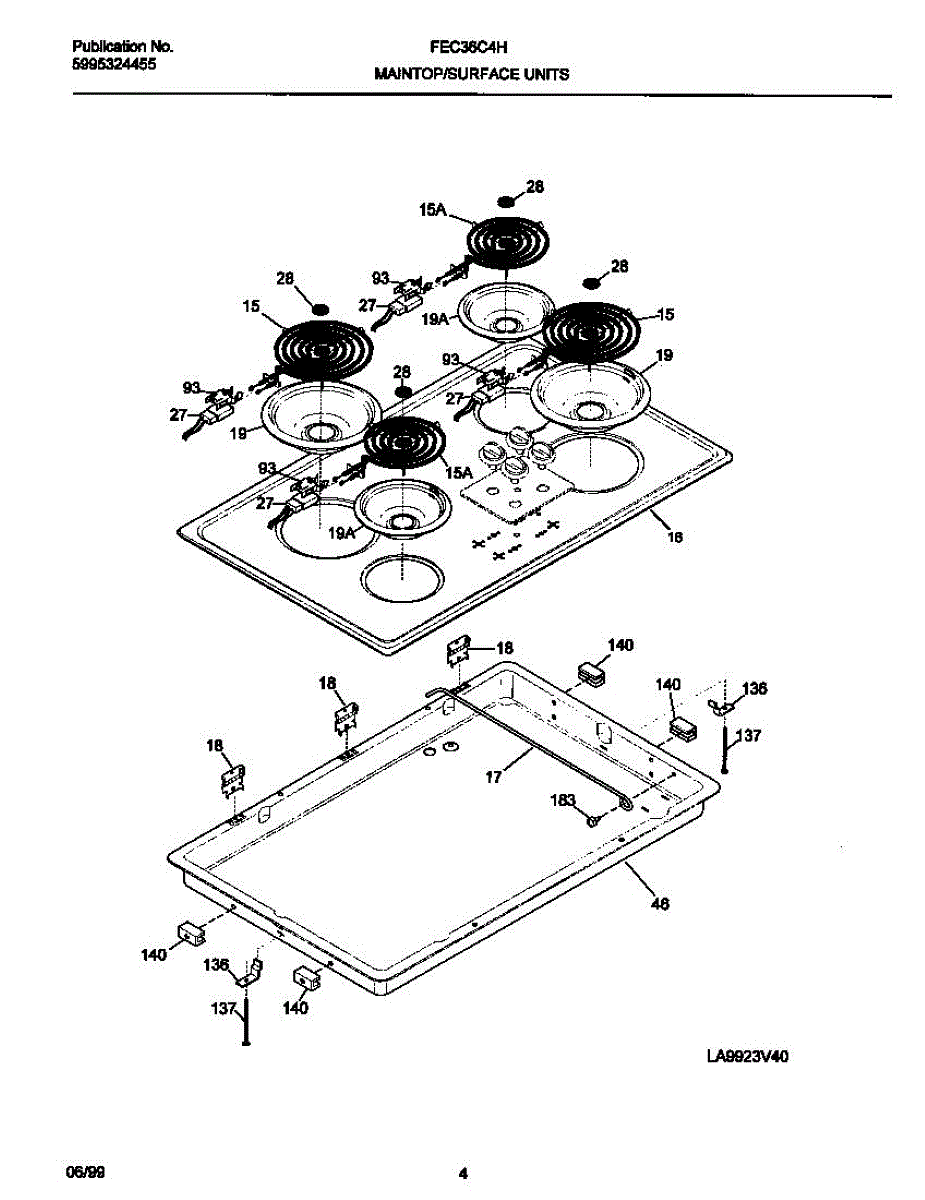

Parts for Frigidaire FEC36C4HTA: 03 - Maintop / Elements Parts

This electric heating coil provides heat for cooking on your range's cooktop surface, plugging into a receptacle beneath the cooktop. Replace when the element doesn't heat up, heats unevenly, or shows visible damage like cracks or burn marks.

This is the large surface heating unit for an electric range or cooktop. Replacing a failing unit restores consistent stovetop heat so cookware warms predictably and meals cook evenly.

• Provides the heat source for the large burner position on an electric cooktop
• Converts electrical energy into controlled cooking heat
• Replace if the burner won't heat, heats intermittently or unevenly, or shows visible breaks, blistering, or burn spots
• Loose, pitted, or discolored terminals can also indicate the unit is failing

• Disconnect power to the appliance before servicing and allow all components to cool completely
• If your model uses plug-in coils: lift slightly and pull the old unit straight out of the receptacle; align and push the new unit straight in until fully seated
• Inspect the burner receptacle for heat damage before reassembly
• Restore power and test operation on low and high settings

Replace cracked, rusted, or stained drip pans under your range burners. Catches spills and protects cooktop. Easy snap-in installation, no tools needed.

Chrome drip pan installs beneath range burner elements to catch spills and drips. Replaces cracked, rusted, or worn pans for a clean cooktop appearance.

This clip secures the appliance's terminal block to the chassis, keeping wiring stable and preventing strain on electrical connections. It's a small, durable mounting clip used where the terminal block needs a fast, reliable hold. What it does:

• Holds the terminal block firmly to the appliance frame to reduce wire movement and wear
• Helps maintain safe, stable electrical connections by preventing strain on terminal wires
• Prevents the terminal block from shifting during use or service
• Compatible with standard terminal block locations that use a push-in or snap-mount clip

• One terminal block mounting clip

• Always disconnect power before accessing or servicing electrical components
• Remove access panels and locate the terminal block; clip typically snaps into a chassis slot or aligns with an existing mounting boss
• Handle wiring and terminals gently to avoid loosening connections; verify all wires are secure after reinstall

This bracket kit secures your cooktop to the countertop during installation, providing stable mounting support. The brackets prevent movement and ensure proper alignment with the cutout opening. Install these brackets if your cooktop shifts, sits unevenly, or needs to be properly secured to meet safety requirements.

This is a replacement mounting screw used to secure appliance panels, brackets, and components. Replacing worn or missing screws restores proper fit and reduces rattles or loose parts for safe, stable operation. What it does:

• Secures panels, brackets, trim, or small components in place
• Helps eliminate rattling, vibration, and loose or misaligned parts
• Restores proper fastening after maintenance or part replacement
• Matches the appliance's original fastener style for correct fit

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent thread or component damage
