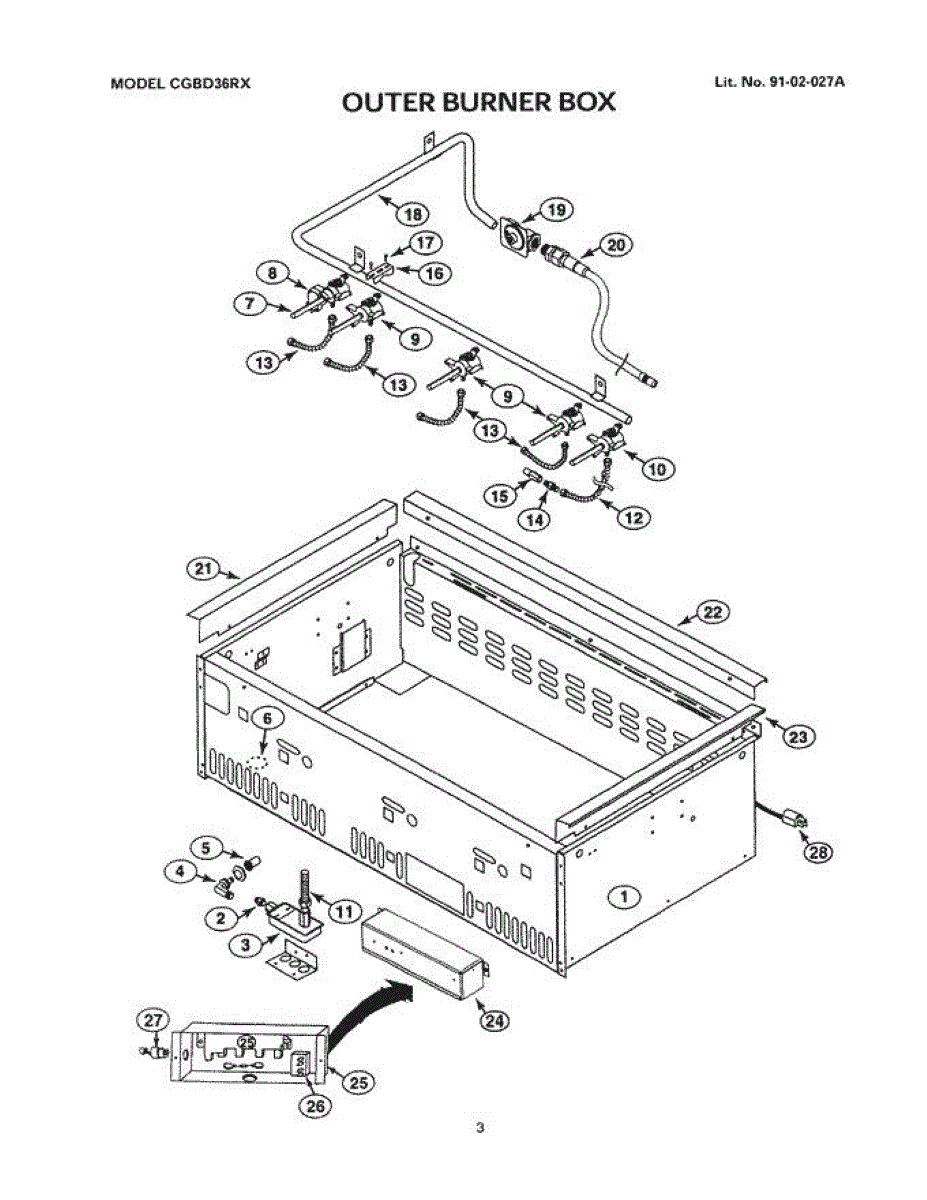

Parts for Thermador CGBD36RX: 03 - Outer Burner Box Parts

Bulkhead elbow fitting that connects gas lines in your range or cooktop. Replace if cracked, leaking, or damaged to restore proper gas line connections.

This replacement gas orifice (#54 drill) meters fuel to a burner for correct flame size and heat output. It restores proper burner performance when the jet is clogged, worn or the flame is weak or uneven. What it does:

• Precisely meters gas flow to a burner to maintain correct flame characteristics
• Helps correct weak, flickering, low or uneven flames
• Useful when a burner has restricted flow from debris or corrosion
• Compatible with applications that use a #54 drill-sized jet

• Turn off the gas supply and electrical power before servicing; follow local codes
• Use appropriate tools to remove the old orifice; avoid overtightening the replacement
• Check all connections for leaks with a gas leak detector or soapy water before use

The Spark Ignition Switch is an OEM part for Bosch ranges and cooktops. It controls the ignition of surface burner flames by emitting an electrical spark when activated.

Causes of a bad switch can be general wear and fatigue over thousands of start cycles. Exposure to moisture, dust or metal debris could also damage electrical components internally.

Symptoms of a bad spark ignition switch include:

• Burners failing to light even when valves are turned on
• Intermittent or irregular lighting of some burners
• No electrical sparks emitted from the ignition electrode

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Gas won't flow to burners or grill? This 48-inch gas supply tube connects the inlet to the valve, restoring safe fuel delivery when the original is damaged.

If your burners won't ignite or flames are weak, a damaged gas supply tube may be blocking fuel flow. This 9-inch tube restores proper gas delivery. 2-hour DIY repair.

Tube coupling connects gas lines in grills and smokers. Replace if cracked, leaking, or corroded. Essential for safe fuel line connections and proper fit.

This is a natural gas orifice jet (#63 size) that meters the flow of gas to a burner on a range or cooktop. It threads into the burner valve assembly and has a precisely sized opening to deliver the correct gas-to-air mixture for proper flame performance. Replace this orifice if the burner flame is too high, too low, yellow or uneven, or if you are converting the appliance between natural gas and LP and need the correct jet size.

Saddle clamp secures gas lines and wiring on cooktops and ranges. Replace if cracked, loose, or missing to prevent rattling and ensure safe operation.

Controls gas supply pressure to burner manifold. Replace if regulator is cracked, sticking, or no longer maintaining correct pressure for consistent flames.

This is a flexible gas inlet hose used to supply gas to the burners in a range or oven. It connects the gas valve assembly to the burner manifold, ensuring a secure and leak-free fuel path. Replace this hose if you detect a gas smell near the appliance, notice visible cracking or deterioration, or if the burners are not receiving adequate gas flow.
