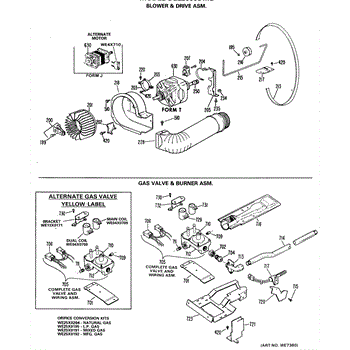

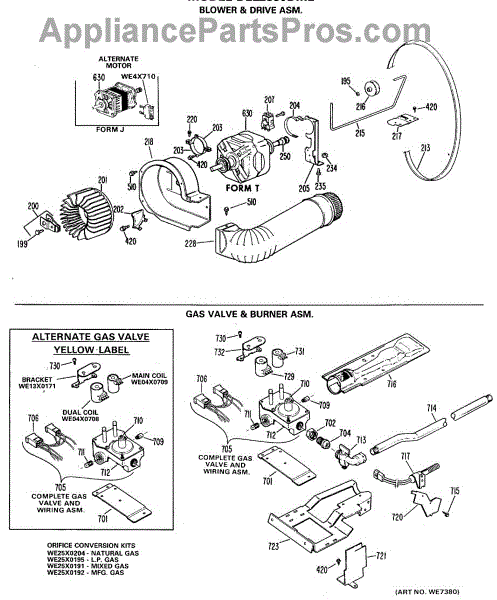

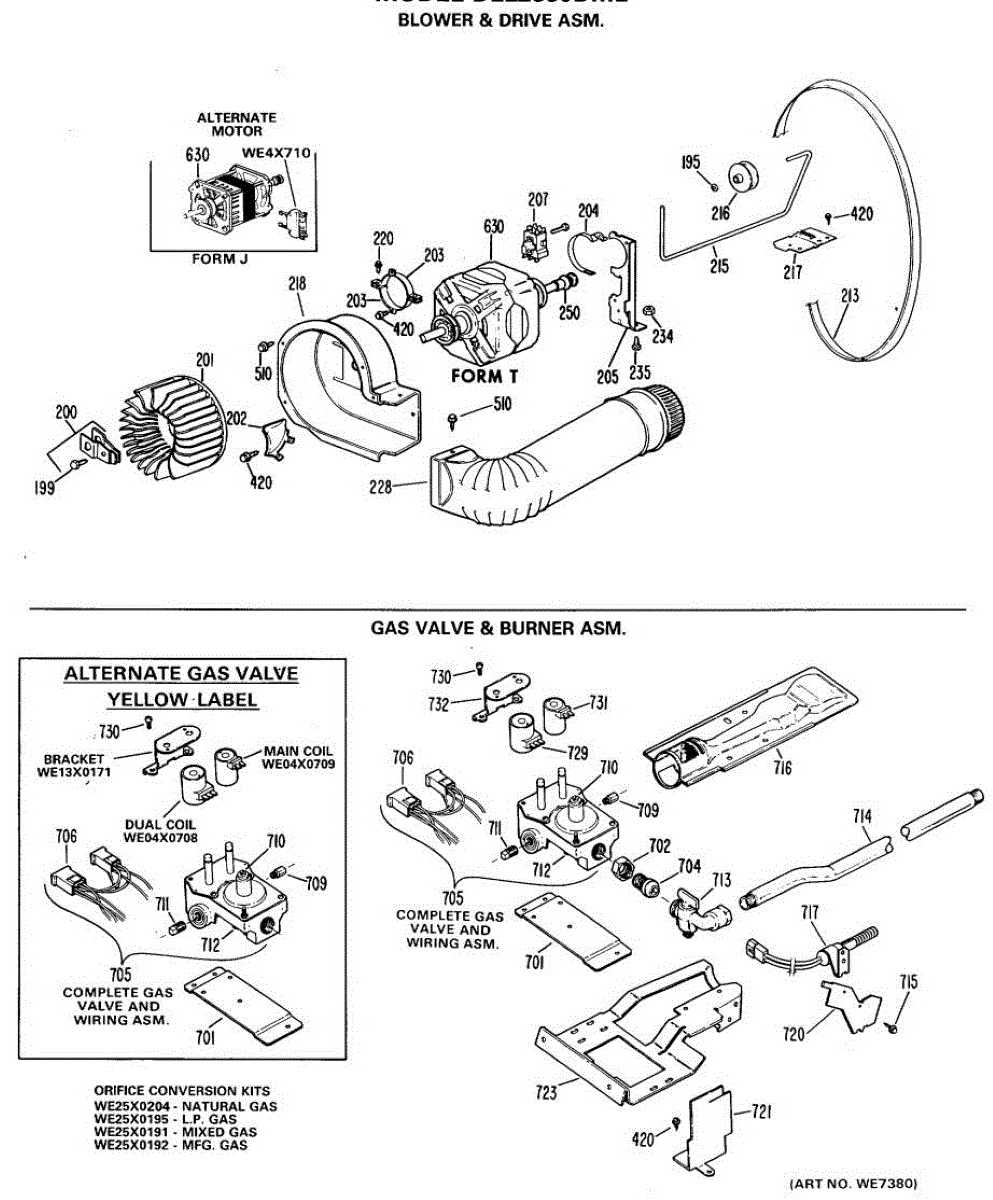

Parts for Ge DLL2880DML: 04 - Blower & Drive Asm. Parts

Size: 14-10 a.

Secures the blower wheel to the motor shaft. Replace when the wheel loosens or moves, causing rattling or rubbing noise. Includes clamps and screw.

The Blower Wheel is an OEM replacement part for GE dryers. It has a role in the air circulation within the dryer, aiding in the even and efficient drying of clothes. The blower wheel, connected to the motor, helps in expelling the moist air out of the dryer through the exhaust vent during the drying cycle.

Causes of a malfunctioning blower wheel are typically wear and tear from regular use, the accumulation of lint or debris, or damage to the wheel’s fins or central hub, which can impact its rotation and air circulation capability.

Symptoms of a bad Blower Wheel include:

• Unusual noises during operation
• Extended drying times
• The dryer overheating
• Reduced air circulation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Secures the drive motor to its mounting bracket. Replace if cracked, broken, or missing to keep the motor and blower aligned and stable during operation.

Secures your dryer motor to the cabinet to reduce vibration and noise. Replace if motor shifts or rattles during operation. Confirm fit with your model.

Connects motor to drum for rotation. Replace if dryer won't start, makes noise, or drum doesn't turn. Confirm fit with your model number before ordering.

The Idler Pulley is an OEM part for GE dryers. This critical component helps to maintain the correct tension on the dryer's drive belt, ensuring smooth operation and preventing it from slipping.

Symptoms of a bad Idler Pulley include:

• Squeaking or screeching noises during dryer operation, often a sign of bearing wear or failure.
• The dryer drum not turning smoothly, or at all, indicating that the belt may be slipping or has come off entirely due to a failed pulley.
• Excessive heat or a burning smell, which can occur if the pulley is seizing up and causing friction.
• Visible wear or damage to the pulley itself.

Causes of a bad idler pulley can include worn bearings, accumulation of lint and debris that impedes rotation, or material fatigue after prolonged use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replaces a worn, damaged, or misaligned dryer motor pulley. Guides the drive belt and transfers motor power to the drum for proper rotation.

Mounting screw for dryer drum support and internal components. Replaces lost, stripped, or damaged screws during repairs. Package of 12 screws included.

This dryer motor kit powers the drum and blower. Replacing a weak or failed motor restores proper tumbling and airflow so the dryer starts reliably and dries loads more evenly.

• Drives the drum via the belt and turns the blower wheel for airflow
• Helps resolve: dryer hums but won't start, drum won't turn, or stops mid-cycle
• Can reduce loud buzzing/grinding noises from the motor area
• Restores consistent operation when the motor overheats and trips its protector

• Disconnect power; turn off gas supply to gas dryers before servicing
• Remove panels to access the drive system; release belt tension and remove the drum as needed
• The blower wheel threads onto the motor shaft—support it carefully; many GE dryers use a reverse (left-hand) thread
• Transfer wiring and any reusable hardware to the new motor; test before reassembly

Dryer won't heat or you smell gas? The gas valve controls fuel delivery to the burner. Common fix for heating failures and gas leaks. Moderate DIY repair.

Meters gas flow to the dryer burner. Replace if damaged, clogged, or when converting between natural gas and LP. Installs at the burner assembly.

Leak limiter orifice for dryer gas conversion kits. Installs in the burner assembly to regulate gas flow. Replace if damaged, cracked, or missing.

Fix a dryer that won't heat or cycles but doesn't ignite with this gas burner assembly. Restores consistent flame when the original is corroded or clogged.

The Igniter is an OEM part for GE dryers. It is designed to ignite the gas burner to produce heat, which is essential for drying clothes. The igniter ensures that the gas is lit efficiently and safely, enabling the dryer to reach and maintain the proper temperature for effective drying.

You should replace the igniter if it becomes faulty. Causes of a bad igniter can include electrical failures, cracks or breaks in the igniter material, or wear and tear from regular use. These issues can prevent the igniter from generating the necessary heat to ignite the gas.

Symptoms of a bad igniter include:

• The dryer not heating up
• Extended drying times
• The igniter glowing but failing to light the gas burner
•  A lack of flame in gas dryers

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Dryer won't heat or you smell gas? The gas valve controls fuel delivery to the burner. Common fix for heating failures and gas leaks. Moderate DIY repair.

This dual coil kit controls the gas valve operation in your dryer, allowing gas to flow to the burner for proper heating. The coils work together to open and close the gas valve safely during drying cycles. Replace this kit if your gas dryer won't heat, takes too long to dry clothes, or if you smell gas around the unit.

Hex washer head screw for refrigerators, freezers, and other appliances. Replaces lost, stripped, or damaged screws during repairs or panel assembly.

Dryer won't heat or you smell gas? The gas valve controls fuel delivery to the burner. Common fix for heating failures and gas leaks. Moderate DIY repair.

The gas valve solenoid controls gas flow to the dryer's burner assembly for heating during drying cycles. Located near the gas valve, replace it when the dryer won't heat, heats intermittently, or won't ignite properly.
