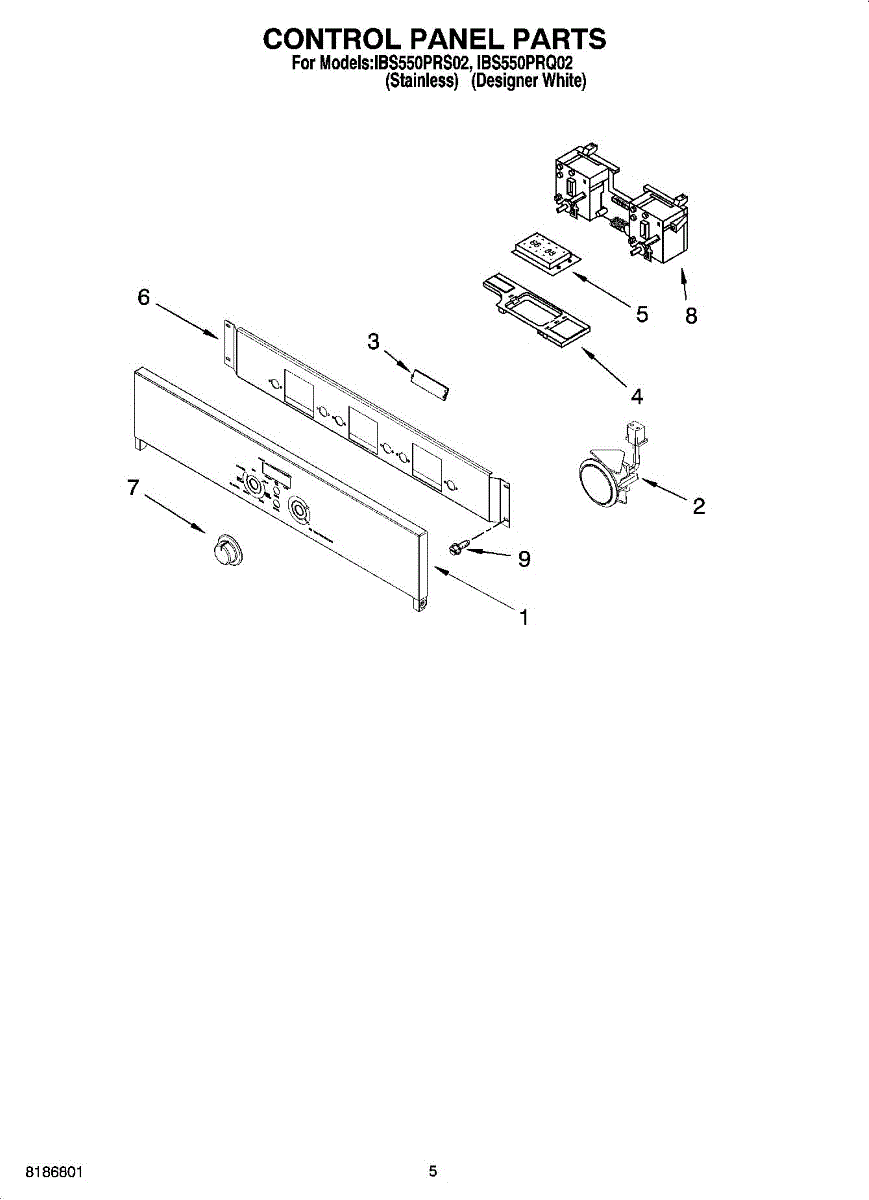

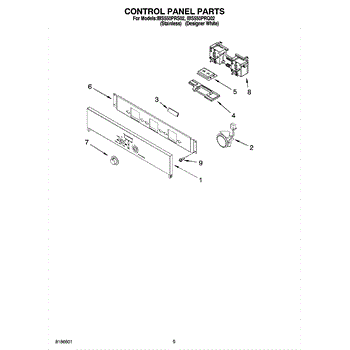

Parts for Whirlpool IBS550PRS02: 04 - Control Panel Parts

This display module is the electronic board that illuminates the control-panel readout on your oven. Replacing it restores a clear, reliable view of the clock, temperature, and status information so you can set and monitor cooking precisely.

• Drives the control-panel display for time, temperature, and function/status indications
• Receives signals from the main control and renders prompts and error codes
• Common symptoms: dim/faded or blank display, missing segments, flickering, intermittent readout
• Helps when the oven operates but the display is not readable

• Disconnect power at the breaker and allow the unit to cool before servicing
• Remove the control panel/console to access the module; note wire locations or take photos
• Handle the board by the edges and transfer any mounting hardware from the original
• Restore power, set the clock, and verify display operation

This user interface control is the front control panel assembly for the oven, giving you the buttons and display to set cook modes, temperature and timers so the range responds correctly to your inputs. What it does:

• Registers button/touch inputs and sends commands to the oven control board
• Displays clock, temperature, timer and mode information for user feedback
• Enables selection of bake, broil, convection and timer functions (depending on model)
• Can resolve symptoms like unresponsive or missing display, incorrect mode selection, or non-working keypad entries

• One user interface control/oven control panel assembly (as pictured)

• Disconnect power to the appliance before beginning any service to avoid shock
• Remove trim and access screws to lift out the control assembly; handle the display and glass carefully to avoid damage
• Re-seat connectors firmly; only replace this assembly if numbers match the part you removed

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned
