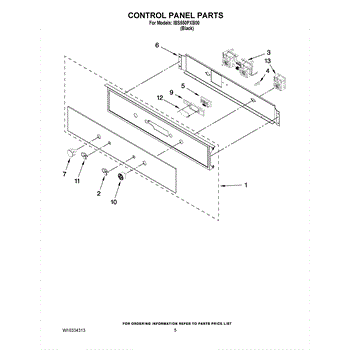

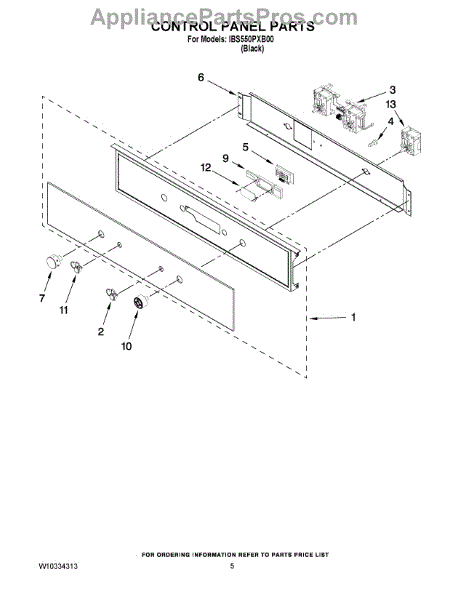

Parts for Whirlpool IBS550PXB00: 04 - Control Panel Parts

This large user interface control panel is the oven's front control assembly that gives you the touchpads and display needed to set cook modes, temperature and time. It restores responsive controls and readable status feedback. What it does:

• Houses the touchpad buttons and display used to choose oven functions, set temperature, timers and clocks
• Transmits user commands to the oven control so cycles start and stop as expected
• Restores operation when buttons are unresponsive, display characters are missing, or touch input fails
• Works with the oven's main control board and ribbon connector to relay inputs and status

• Disconnect power to the appliance before servicing to avoid shock or injury
• Handle the glass/overlay and circuit board carefully to avoid damage; avoid touching contacts
• Reconnect any ribbon cable(s) and mounting screws securely; ensure proper alignment before testing
• Test all functions after installation; if other symptoms persist, the main control board may also need inspection

Screw for side trim.

This white display module replaces the user interface board that shows temperature and status and lets you control refrigerator functions. Restores visible display and front-panel control responsiveness for models that use this exact assembly. What it does:

• Provides the front-panel digital display and keypad interface so commands register and settings are shown.
• Relays user inputs to the main control so features respond.
• Resolves symptoms like a blank or dim display, unresponsive touch/buttons, or missing status indicators.
• Works as the visible control surface and status readout for compatible refrigerator models.

• Disconnect power before replacing to avoid shock and protect electronics.
• Handle the board and ribbon connectors gently; avoid bending or touching contacts.
• Verify connector alignment and seating; test operation before fully reassembling.

This oven selector switch controls the oven temperature/power setting so the range heats to the selected cooking level. Replaces a worn, damaged, or unresponsive oven control switch to restore reliable temperature selection. What it does:

• Routes power to the oven heating element based on the selected temperature/power setting
• Commonly needed when the oven won't heat, heats inconsistently, or temperature knob feels loose/unresponsive
• Works as the user interface for choosing bake/temperature levels on compatible ranges
• Designed to match OEM fit and function for straightforward replacement

• One oven selector switch

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Access usually requires removing the control panel or knobs; keep fasteners and orientation noted for reassembly
• Verify correct part and knob alignment before restoring power and testing
