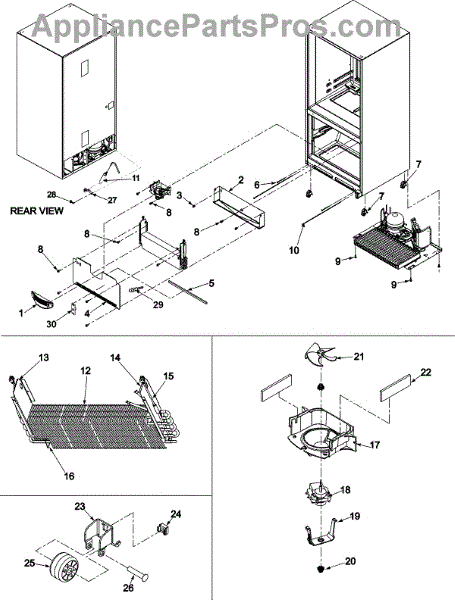

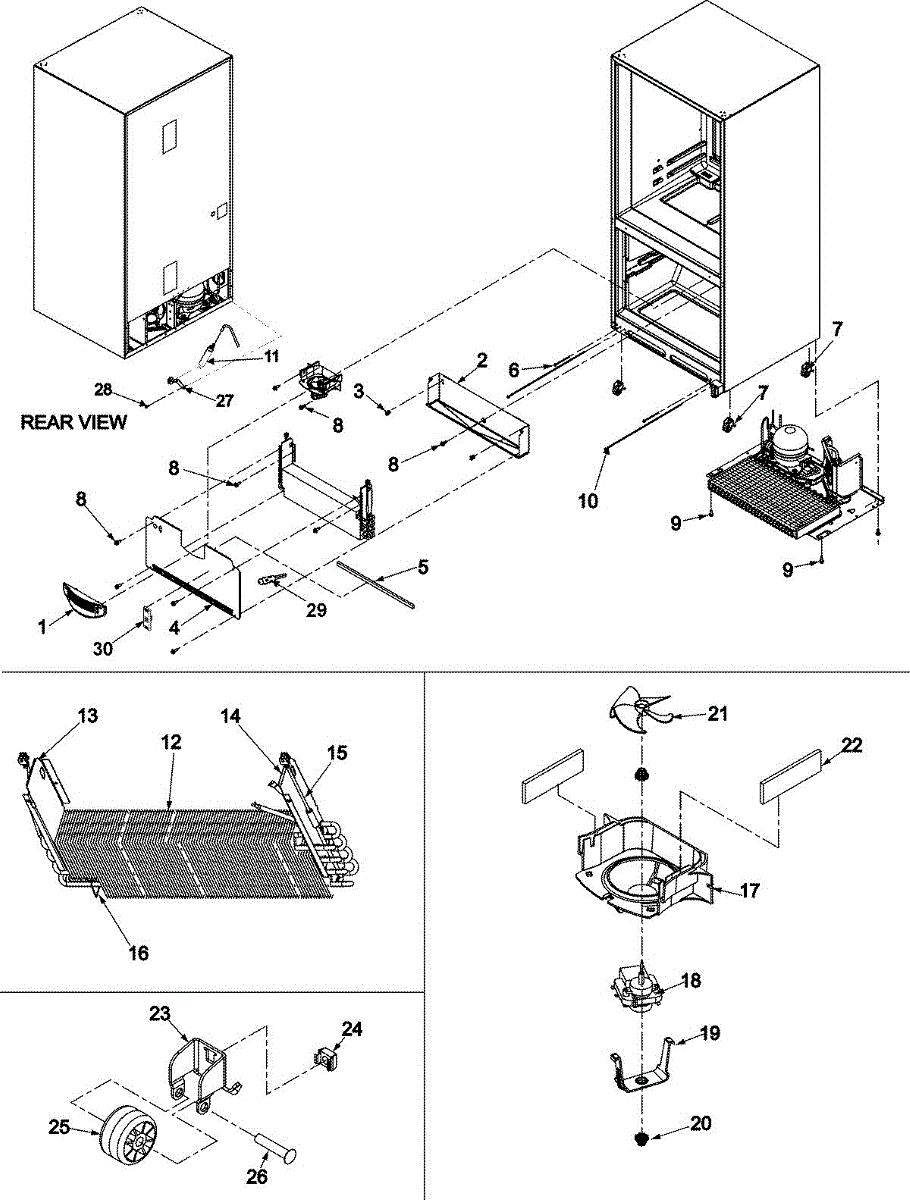

Parts for Amana AB2225PEKS: 04 - Evaporator Area & Rollers Parts

This is a plastic vent grille that covers the air intake or exhaust area on the refrigerator, typically located at the bottom front or top of the unit. It allows airflow to the condenser while keeping debris out. Replace this grille if it is cracked, broken, discolored, or if missing louvers are restricting proper ventilation and causing the refrigerator to run warm.

Drip tray for refrigerators. Installs beneath the evaporator coils to collect defrost water. Replace if cracked, broken, or missing to prevent leaks.

This evaporator clip secures the refrigerator evaporator assembly and related components so the cooling system stays aligned and vibration-free. It helps maintain proper airflow and prevents rubbing or loose parts. What it does:

• Holds the evaporator coil/assembly or associated covers in place
• Prevents vibration, noise, and contact between the coil and cabinet parts
• Helps maintain consistent airflow for reliable cooling performance
• Commonly linked to rattling, buzzing, or loose parts around the freezer evaporator

• Disconnect power before servicing the appliance
• Handle evaporator and surrounding fins carefully; they are sharp and fragile
• Verify clip orientation against the OEM diagram before fastening

Replacement mounting screw for securing appliance panels, brackets, or trim. Restores tight fit when original fastener is missing, stripped, or rusted.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This is a filter drier installed in the sealed refrigeration system that removes moisture and contaminants from the refrigerant as it circulates. It protects the compressor and other components from damage caused by moisture or debris in the refrigerant lines. Replace this filter drier if the refrigerator or ice machine is not cooling properly, the compressor is struggling, or during any sealed system repair where the refrigerant lines have been opened.

Freezer frosting up or refrigerator not cooling? This evaporator coil kit solves frost buildup and cooling issues. Advanced repair, 2-3 hours.

Directs airflow from the evaporator fan to cooling coils in your refrigerator. Replace if cracked, broken, or missing to restore proper air circulation.

Fix a noisy refrigerator or warm cooling with this evaporator fan motor. Common repair for frost buildup and inconsistent temperatures in fridges.

This mounting clip secures the evaporator fan motor in place within your refrigerator's cooling system. It prevents motor vibration and ensures proper alignment for efficient air circulation. Replace when you hear rattling noises from the freezer section or notice reduced cooling performance.

This grommet isolates the refrigerator's fan motor from its mounting bracket to reduce vibration and noise while keeping the motor secure. Replacing worn or missing grommets helps stop rattles and prevents the fan blade from rubbing.

• Cushions the fan motor to maintain proper alignment and clearance
• Absorbs vibration to help reduce humming, buzzing, or rattling sounds
• Helps keep the motor stable so the blade doesn't contact the shroud
• Common signs of failure include excess vibration, noise, or a loose fan motor

• Disconnect power to the refrigerator before servicing
• Access the fan motor area (rear of unit or inside the freezer, depending on model) and support the motor
• Remove mounting hardware and seat the new grommet fully in the bracket/mount
• The fan blade spins freely with even clearance before reassembling and restoring power

Loud noise or freezer warming up? This evaporator fan blade circulates cold air over coils. Simple DIY fix—most repairs done in under an hour.

Seals refrigerator or freezer door to prevent air leaks and maintain temperature. Replace if torn, deformed, or door won't close tightly. Confirm fit.

Roller bracket that mounts refrigerator rollers to the base frame. Replace if your bracket is cracked, bent, broken, or missing to restore stability.

This small metal fastener secures the roller assembly to the refrigerator's bottom panel, allowing smooth door movement. Located underneath the appliance, it needs replacement if the refrigerator rocks, tilts, or has difficulty rolling when moved.

This replacement screw fastens internal components and panels so parts stay secure and quiet. It's a direct-fit fastener used where the original mounting screw is missing or damaged to restore proper assembly. What it does:

• Secures panels, brackets or components to prevent movement and vibration
• Restores proper alignment for covers and access panels
• Stops rattling or loose-fitting parts caused by a missing or stripped screw
• Works as the factory-specified fastener for the original mounting point

• The screw location and type before installing; use the original hole and thread
• Power off and disconnect the appliance before accessing internal components
• Start the screw by hand to avoid cross-threading, then snug with the appropriate screwdriver
• Do not overtighten — stop once the part is secure to avoid stripping or cracking

Freezer freezing up or fridge running warm? This thermistor monitors temperature to control defrost cycles. DIY repair takes 1-2 hours with basic tools.

Freezer freezing up or fridge running warm? This thermistor monitors temperature to control defrost cycles. DIY repair takes 1-2 hours with basic tools.

Freezer running too warm or too cold? This thermistor cover shields the temperature sensor for accurate cooling. Simple snap-in installation fixes misreads.

Freezer icing up and fridge running warm? This defrost thermostat regulates defrost cycles to prevent frost buildup. Takes about 30 minutes to install.
