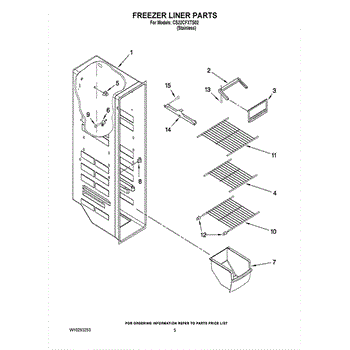

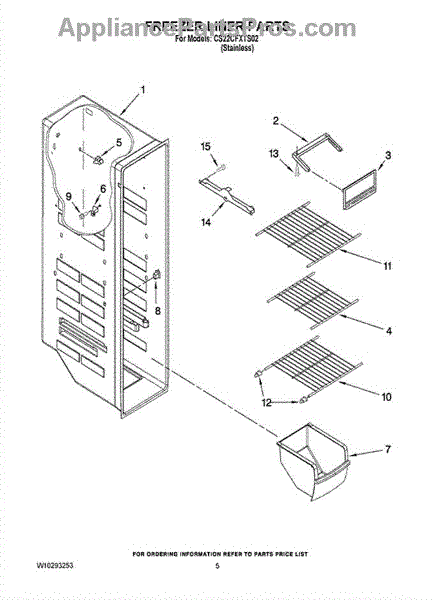

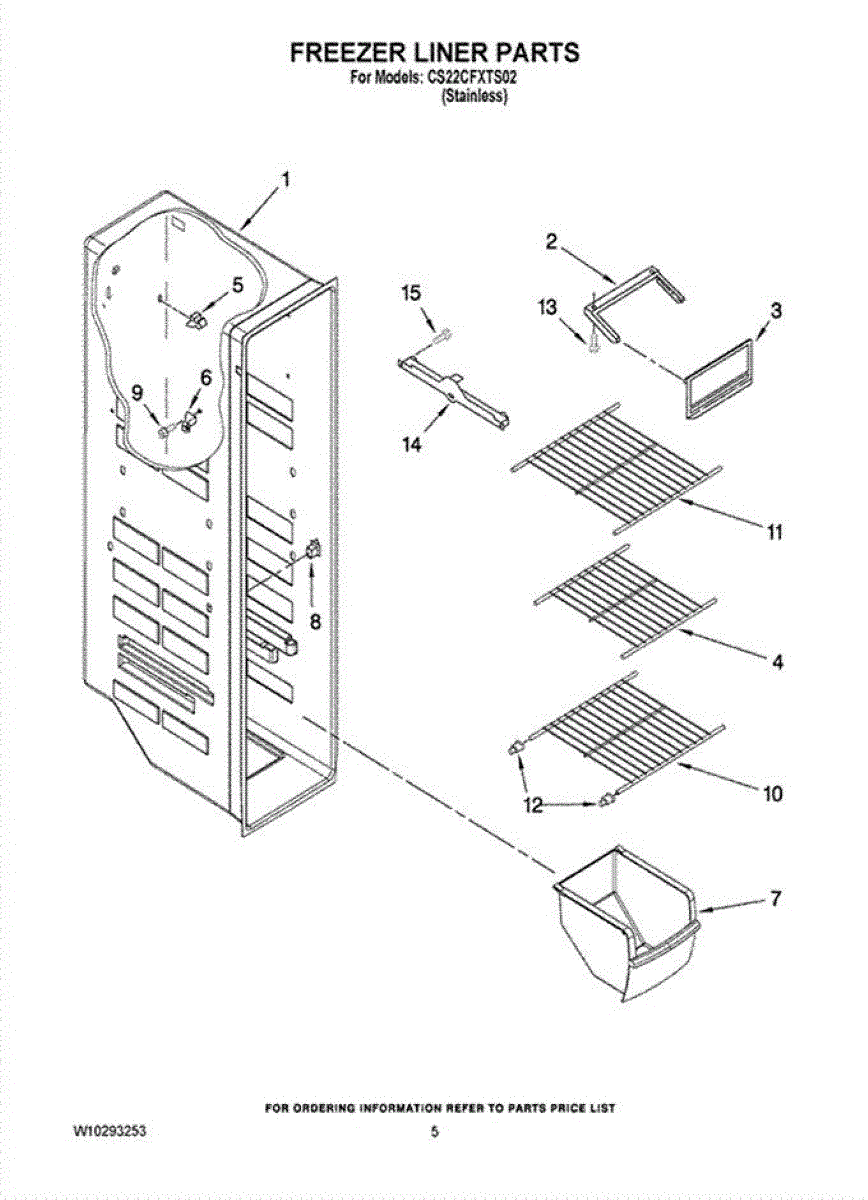

Parts for Whirlpool CS22CFXTS02: 04 - Freezer Liner Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

Replacement ice dispenser door that restores proper ice chute coverage and helps prevent ice spillage and air leaks in compatible refrigerators. OEM-style fit keeps the dispenser operating cleanly and helps maintain freezer interior order. What it does:

• Covers the ice chute so cubes are directed into the dispenser, reducing spills and mess.
• Prevents drafts and helps limit frost buildup around the dispenser opening.
• Replaces cracked, warped, or stuck dispenser doors that interfere with ice delivery.
• Restores proper alignment so the dispenser lever and chute operate smoothly.

• Disconnect power to the appliance before accessing the dispenser area to avoid injury.
• Removal typically requires taking off the inner door trim or access panel; retain all fasteners for reinstallation.
• Handle edges carefully to avoid damage; verify proper alignment and dispenser function after installation.

This air duct clip secures an appliance's air duct or vent to the housing, keeping airflow channels properly aligned and reducing air leaks. A simple replacement that restores correct duct positioning and minimizes airflow issues. What it does:

• Holds the air duct or vent in place to maintain proper airflow alignment
• Prevents the duct from slipping or separating from the housing
• Helps reduce air leaks that can affect performance or cause noise
• Fits where a small plastic/metal retainer is required to secure ducting

• One air duct clip/retainer

• Disconnect power before servicing the appliance to avoid shock or injury
• Use basic hand tools to remove the old clip and snap or screw the new clip into place
• Handle carefully to avoid breaking plastic tabs; the clip fully engages the duct and housing
• If the clip doesn't fit securely, re-check the duct orientation and mounting position

This shelf support stud secures a refrigerator shelf or rail to the liner wall, restoring proper support so shelves sit level and stay in place during everyday use.

• Provides a stable mounting point for the shelf/rail in the cabinet wall
• Helps correct a sagging, loose, or uneven shelf
• Replaces a broken, stripped, or missing stud
• Helps prevent shelves from slipping or falling when loaded

• Unplug refrigerator and wear cut-resistant gloves
• Remove the shelf/rail to access the mounting point
• Install the new stud fully seated and aligned before reinstalling the shelf
• Do not overtighten or force; replace any damaged mating parts for a secure fit

This freezer bin replaces a cracked or missing bin to restore organized storage in your freezer. It mounts on existing tabs or rails to keep frozen items secure and easy to access.

• Provides storage and organization within the freezer compartment
• Replaces a broken, warped, or missing bin
• Helps prevent items from tipping or falling when the door opens
• Restores proper fit so the bin stays seated on its mounts

• Power isn't required for this replacement; open the freezer and remove items from the affected area
• Lift the old bin straight up and out from the tabs/rails
• Align the new bin with the mounting points and slide or press down until fully seated
• Do not force into place; distribute weight evenly and avoid overloading

The Door Switch is an OEM part for Whirlpool refrigerators. It is designed to detect when the refrigerator or freezer door is open or closed. This switch controls the interior light and ensures that the cooling system operates efficiently.

Causes of a bad Door Switch can include mechanical wear from frequent use, electrical faults such as short circuits or burnt contacts, and physical damage from impact or mishandling of the refrigerator door.

Symptoms of a bad Door Switch include:

• The interior light not turning on when the door is opened or not turning off when the door is closed
• The refrigerator or freezer not cooling properly
• The light staying on continuously
• The cooling system running continuously or not running at all due to incorrect signals from the switch

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is a wire shelf for the freezer compartment that restores stable, usable storage space. Replace a bent or missing shelf to keep items level and help maintain proper airflow and organization.

• Provides a sturdy, level surface for frozen foods in the freezer compartment
• Slides into the existing side rails/slots and removes easily for cleaning
• Replace if the frame is bent, coating is chipping/rusting, or it won't stay seated
• Restores designed spacing to support proper air circulation

• Unplug the refrigerator and clear the freezer area before starting
• If rails are iced over, defrost first to avoid damage
• Insert the shelf into the matching rail slots; ensure both ends are fully engaged and level
• Wear cut-resistant gloves; wire edges can be sharp

Approximate measurement: 15" x 11"

This freezer shelf mounting cup fits into the liner opening to support the ribbed freezer shelf post, keeping the shelf level and secure. Replace cracked or missing cups to restore proper shelf support and prevent sagging.

• Supports the ribbed freezer shelf post and anchors it in the liner
• Helps keep the shelf level and properly positioned
• Replaces cracked, worn, or missing cups
• Common symptoms: shelf tilts, won't stay in place, rattles, or falls

• Unplug the refrigerator before starting
• Remove the freezer shelf; carefully pry the old cup straight out of the liner opening to avoid damage
• Press the new cup fully into the opening until flush; reinstall the shelf post into the cup
• Verify the shelf is seated and level before loading items

Size: 8 x 1/2 ab.

This track is the replacement rack guide that supports and guides a dishwasher or oven rack so it slides smoothly in and out. It restores proper rack alignment and prevents the rack from sticking or tipping. What it does:

• Provides a smooth sliding surface for a rack to roll or glide along
• Restores proper rack alignment to prevent tipping and rubbing
• Replaces worn, cracked, or broken guides that cause sticking or noisy operation
• Compatible with factory mounting points to maintain original movement

• Disconnect power and water (if applicable) before servicing the appliance
• Remove the affected rack and any retaining clips or screws to replace the track
• Tighten fasteners securely and test rack movement after installation

This track is the replacement support rail that guides and stabilizes a sliding component so it moves smoothly and stays aligned. Replacing a worn track restores proper slide action and reduces binding or scraping. What it does:

• Guides a drawer, rack or assembly along a straight path to prevent tipping or catching
• Keeps the sliding component aligned for smooth opening and closing
• Reduces noise and wear caused by a worn or damaged rail
• Common symptom: drawer or rack sticks, drops, or moves unevenly when operated

• Disconnect power (or unplug appliance) before starting repairs to reduce shock risk
• Keep track of all screws, clips and any retained fasteners during removal
• Use basic hand tools; support the sliding component while removing/installing the track
