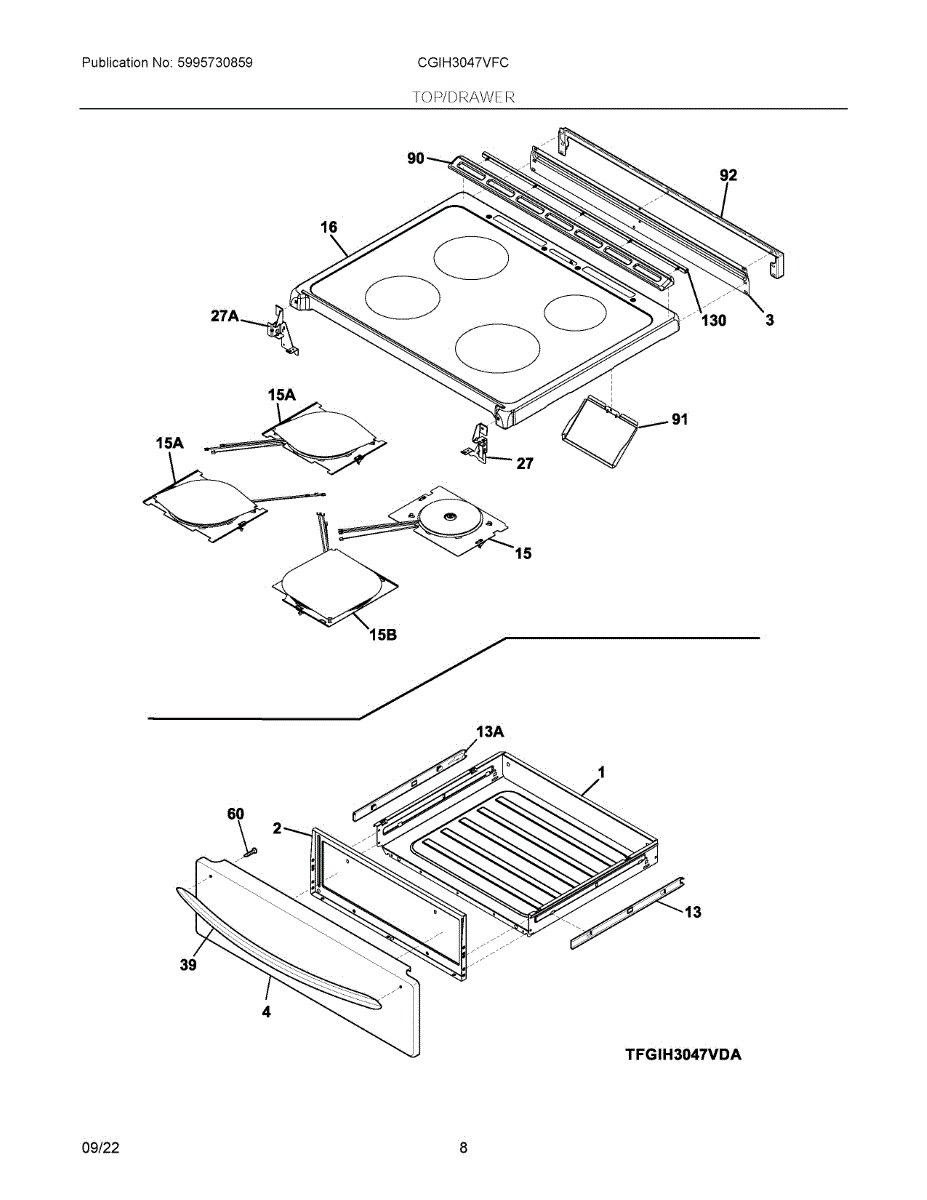

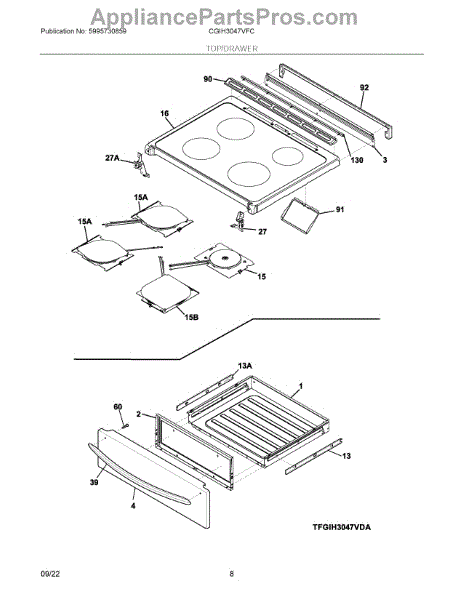

Parts for Electrolux CGIH3047VFC: 04 - Top / Drawer Parts

This is a metal liner that sits inside the broil drawer at the bottom of the range, protecting the cabinet floor from grease, drips, and heat damage. It provides a smooth, cleanable surface beneath the broiler element or heating area. Replace this liner if it is rusted, warped, or has burn-through holes that allow grease to reach the range cabinet.

Metal shield protects internal components from heat and debris. Replaces damaged, cracked, or missing shields to restore proper protection around wiring.

Stainless steel front panel for the drawer beneath your range oven cavity. Replace if cracked, dented, scratched, or discolored to restore appearance.

Replacement drawer glide for electric and gas ranges. Guides storage drawer along its track for smooth opening and closing. Replaces cracked or worn glides.

Oven rack glide that allows smooth sliding of oven racks. Replace this guide if it's broken, cracked, or missing to restore proper rack operation.

This is a 210mm induction coil element that mounts beneath the cooktop's glass surface. It generates an electromagnetic field that heats compatible cookware placed on the corresponding burner zone. Replace this element if the burner zone fails to heat, heats intermittently, or if you receive an error code indicating an element malfunction.

The Element Assembly is an OEM component specifically designed for Frigidaire brand electric ranges. Located beneath the cooktop surface, these resistive elements generate heat for cooking.

Prolonged use causes elements to warp, crack, or lose continuity over time due to normal heating/cooling cycles. Element failure limits cooktop functionality.

Causes of a faulty element relate to typical wear expected of high-temperature filament windings. Accidental damage during cleaning can also impact integrity.

Symptoms involve:

• One or more cooktop zones not heating properly or at all
• Burned residue indicating heating dysfunction
• Visible cracks or separations in the resistive coils

Replacing with this OEM Frigidaire assembly restores reliable and consistent zoned heating. Compatibility extends to some Kenmore, Gibson, and Electrolux ranges.

This smoothtop glass cooktop surface is the flat replacement glass for a smooth-top electric range, restoring a safe, even cooking surface and protecting the underlying heating elements. Replaces damaged or cracked cooktop glass. What it does:

• Provides a flat, easy-to-clean ceramic glass surface for stovetop cookware
• Protects burners and internal components from spills and debris
• Restores stable contact between cookware and the heating elements for even heating
• Commonly replaced when the glass is cracked, chipped, or permanently stained

• Disconnect power to the range before starting any work to avoid electric shock
• Handle the glass carefully — it can be heavy and may break if dropped
• Follow the OEM service manual for proper alignment, seal/gasket placement, and torque specs
• If the original glass shattered, check surrounding trim, screws, and element supports and replace any damaged parts.

Replace your range's oven door handle if it's cracked, broken, or worn. This structural component mounts to the oven door for opening and closing access.

Replacement mounting screw that secures panels, trim, and components in ranges and ovens. Needed when original screws are lost, stripped, or damaged.

Decorative trim piece that restores the finished appearance of your range. Replaces cracked, dented, or missing trim to provide a clean edge.

Seals gaps at the rear of your range while maintaining proper ventilation. Replace if damaged, cracked, or allowing air leaks. Confirm fit with your model.

This seal fits along the perimeter of the range main top, creating a tight barrier between the cooktop and the frame beneath it. It prevents grease, spills, and heat from reaching internal components. Replace this seal if you notice grease leaking beneath the cooktop surface, a loose-fitting main top, or if the old seal is cracked, flattened, or missing.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Size: 8-32t x 0.500 inch. Color: Black.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
