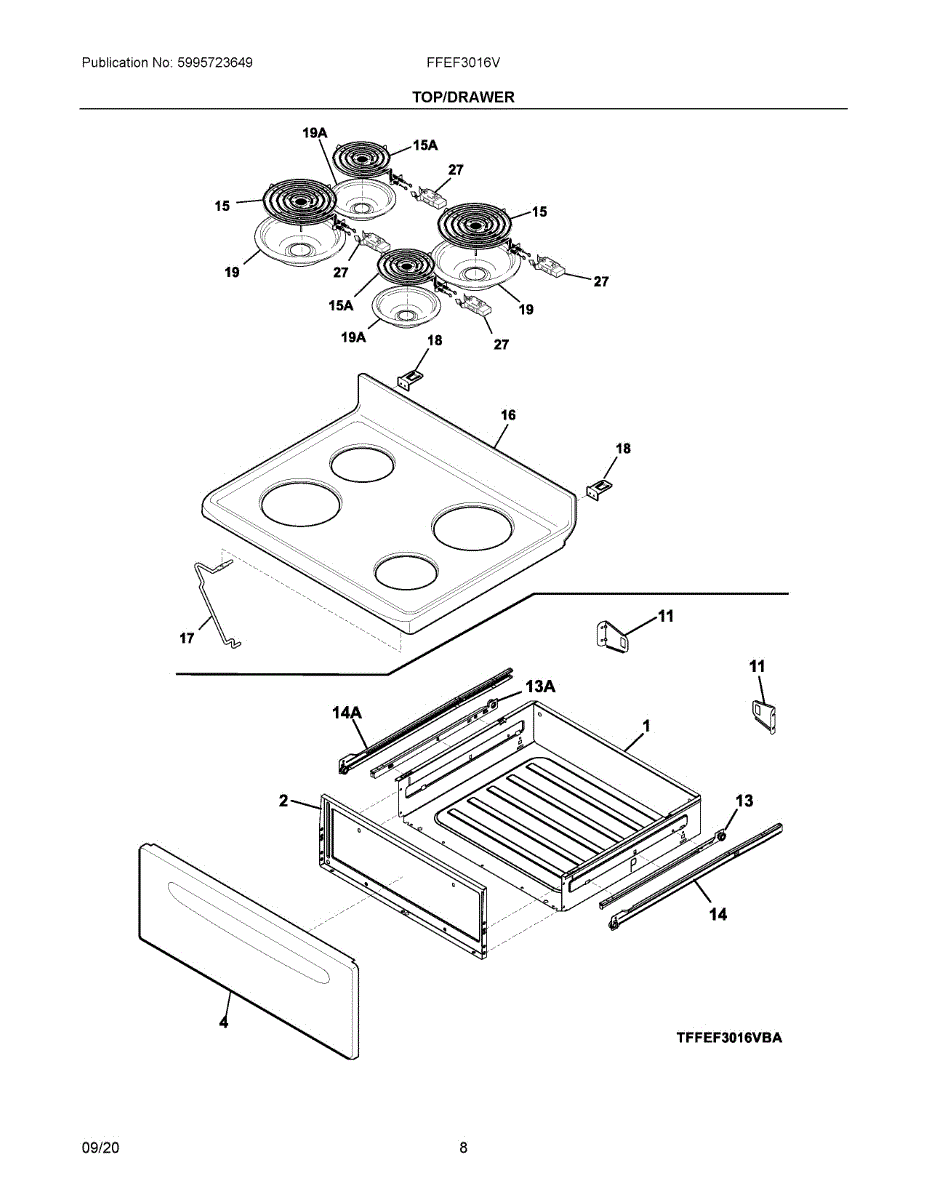

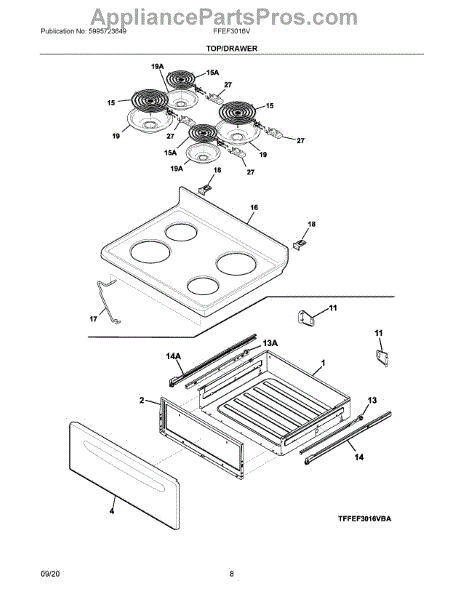

Parts for Electrolux FFEF3016VBC: 04 - Top / Drawer Parts

Replaces a damaged, cracked, or missing bottom drawer on your range. Restores smooth slide action and a flush, finished look to the storage compartment.

This liner attaches to the inside of the range's storage or warming drawer front panel, providing a finished interior surface and insulation. It helps protect the outer drawer panel from heat generated by the oven cavity above. Replace this liner if it is warped, cracked, discolored, or missing, which can allow excess heat to reach the drawer's exterior.

This is a black outer panel that covers the front of the broil drawer on an electric range. It provides a finished exterior appearance and helps contain heat within the drawer compartment. Replace this panel if it is warped, scratched, chipped, or if the color no longer matches due to heat damage.

Replace worn drawer slide glides to restore smooth movement and eliminate sticking or noise. Guides drawer along track for reliable operation. Verify fit.

The Glide is an OEM part for Frigidaire ranges. It ensures smooth movement of the storage drawer, allowing you to easily access and organize your stored items.

A bad glide can be caused by wear and tear, damage, or lack of lubrication. Signs of a faulty glide include a sticky or jammed drawer, uneven sliding, or a drawer that doesn't close properly.

Symptoms of a bad glide can include:

• Difficulty in opening or closing the storage drawer.
• Uneven or jerky sliding motion of the drawer.
• Drawer getting stuck or not fully closing.

Replace your worn-out or damaged glide with this genuine OEM part to restore movement to your range's storage drawer. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


Range drawer glide ensures smooth opening and closing while keeping drawers aligned. Replace when drawers stick, scrape, or misalign. Confirm fit with model.

Drawer slide glide for electric and gas ranges. Replace if cracked, broken, or worn to restore smooth, aligned drawer movement and eliminate sticking.

This is a 6-inch coil surface heating element designed for use on an electric range cooktop. It provides heat for smaller burners on the stovetop surface. Replace this element if the burner no longer heats up, heats unevenly, or has visible damage such as blistering, pitting, or burn-through spots.

Element not heating? This surface element is the most common fix. Compatible with Frigidaire electric ranges. Tests between 15-45 ohms resistance.

Main top replaces the cooktop surface on select ranges, restoring a flat, secure surface for burners and controls. It improves appearance and supports proper burner alignment for safer, more reliable cooking. What it does:

• Provides the primary cooktop surface and mounting for surface burners and elements.
• Restores a flat, undamaged surface when the original top is dented, warped, cracked, or cosmetically damaged.
• Secures burner assemblies and helps prevent burner wobble or misalignment.
• Improves cleanability and overall appearance of the cooktop area.

• Disconnect power (and gas supply for gas ranges) before beginning service.
• Remove burner grates, surface elements, and any trim; retain original hardware for reassembly.
• Large parts may require two people to position; use basic hand tools and follow model-specific service instructions.
• Verify burner alignment and function before completing reassembly.

Main top support rod for electric ranges. Replacement needed when original rod is broken, bent, or damaged. Installs to provide structural support.

This is a metal hinge bracket that secures the main cooktop to the range frame and allows it to be lifted for access to components underneath. It connects the cooktop panel to the body of the range at the hinge point. Replace this bracket if it is bent, broken, or missing, which can cause the main top to sit unevenly or not stay properly secured.

Replaces damaged or corroded 6-inch drip pan beneath your electric range stovetop element. Catches spills and debris. Install when original is rusted or worn.

Replacement drip pan installs below range surface burners to catch spills. Replace if rusted, discolored, scorched, or coated with buildup that won't clean.

Replacement wiring harness that connects control electronics to internal components, restoring proper electrical connections and reliable operation. Use when factory wiring is damaged, loose, or causing intermittent component failures. What it does:

• Routes power and signal between the appliance control board and internal components.
• Restores continuity when broken, frayed, or corroded wires cause intermittent or no operation.
• Can resolve symptoms such as non-responsive controls, lights or fans not running, or intermittent component operation.
• Keeps wiring neat and secured along original routing to prevent rubbing and stress.

• Always disconnect power (unplug or shut off breaker) before starting any repair.
• Match connector shapes and pin counts; route harness along original clips and pathways to avoid pinch points.
• Inspect mating connectors and terminals for damage or corrosion before reconnecting.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Size: 6-20 x 0.312 inch.

Size: 8-32t x 0.500 inch. Color: Black.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
