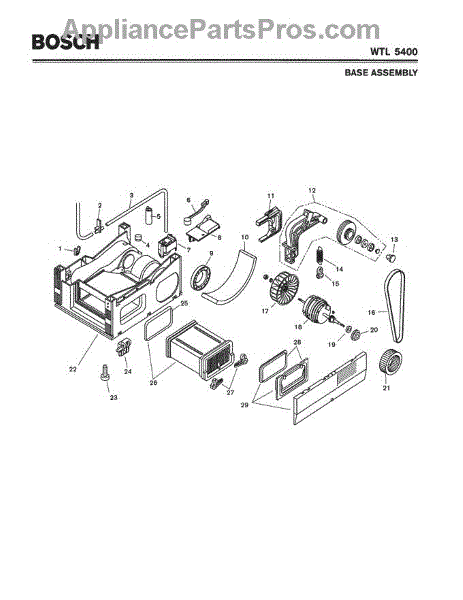

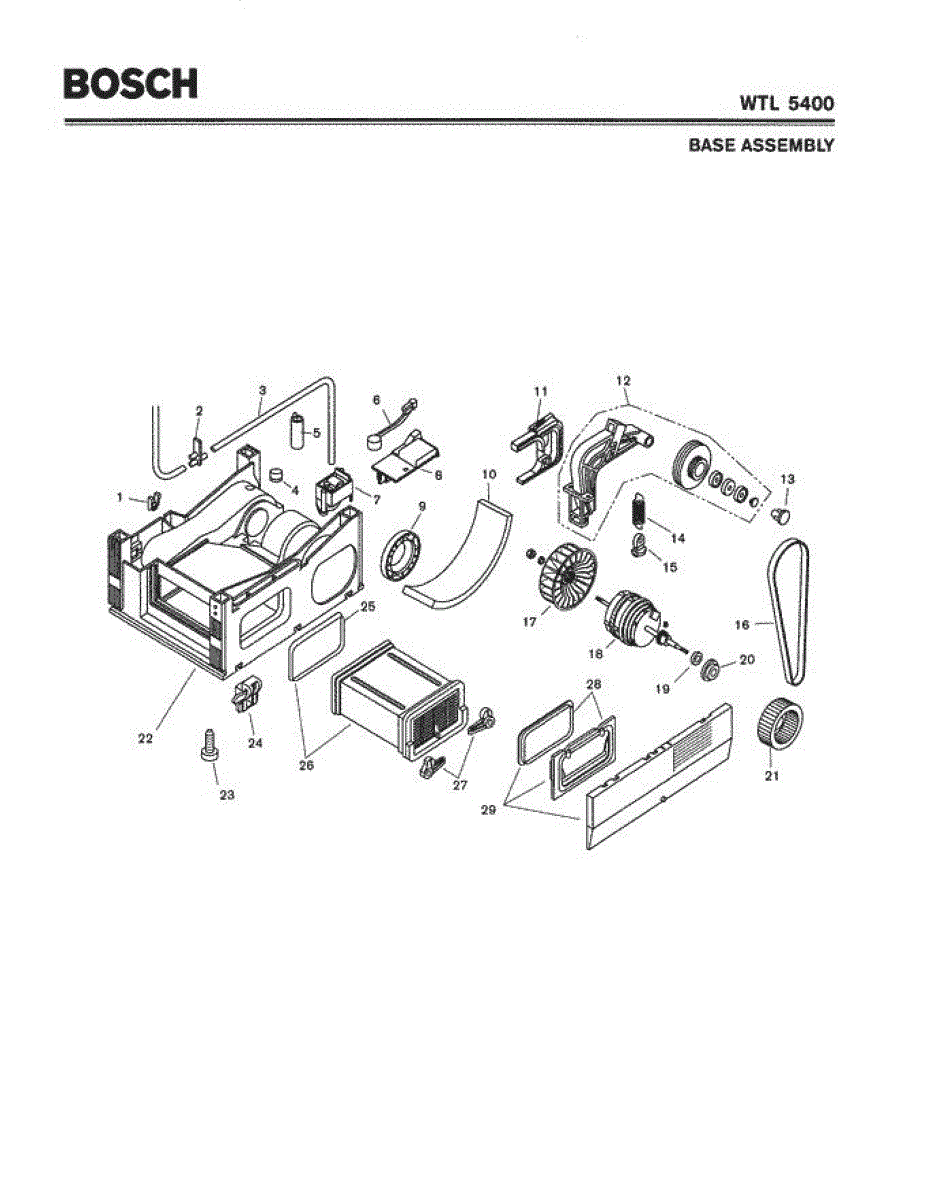

Parts for Bosch WTL5400 UC/04: 05 - Base Assembly Parts

This hose connector links the dishwasher drain hose to the drain pump or drain plumbing, creating a secure water path to prevent leaks and ensure proper draining. It's a direct-replacement part when the original connector is cracked or leaking. What it does:

• Connects the dishwasher drain hose to the pump or household drain plumbing to route waste water away
• Provides a sealed junction to prevent leaking under normal use
• Commonly replaced when you see visible cracks, loose hose connections, or persistent leaks at the hose joint
• Helps restore normal draining when a damaged connector is blocking flow or allowing water escape

• Disconnect power to the appliance and turn off the water supply before starting work
• Inspect and replace any worn clamps or O-rings; only state what ships if clearly included
• Hand-tighten fittings and clamps; avoid over-tightening plastic fittings which can crack

This float detects water level inside the dishwasher tub and helps the control prevent overfill for reliable washing. Replaces the worn or stuck tub float to restore proper water-level sensing and reduce overflow risk. What it does:

• Rises and falls with tub water to engage the water-level sensing system
• Helps the control stop filling when the correct water level is reached
• Common symptom: dishwasher overfills, leaks at the base, or shows continuous fill/drain cycles
• Common symptom: dishwasher stops mid-cycle or fails to start a fill due to a stuck or damaged float

• One float

• Disconnect power (unplug or switch off breaker) and turn off water supply before beginning
• Access typically from the dishwasher tub base or by removing the lower kickplate; your model's service instructions
• Handle the float and surrounding components gently; avoid forcing plastic tabs or clips
• After replacement, run a short test cycle to ensure normal fill and that leaks are not present

This cap ring is a small retaining ring that secures and helps seal a mating component inside the appliance, restoring proper fit and preventing movement or leaks. Use it when the original ring is cracked, warped, or missing. What it does:

• Holds a cover, cap, or seal in place to maintain correct alignment
• Helps prevent water or air leaks at the joint where it installs
• Stops related components from shifting, reducing noise and wear
• Common symptom: visible breakage, looseness, or parts that fall out during use

• One cap ring

• Disconnect power and turn off water before servicing
• Note the ring orientation and any adjacent seals before removal
• Inspect mating surfaces and seals; replace damaged seals or fasteners as needed
• Typically a snap-fit or press-fit part; use appropriate tools to avoid deforming the ring

This genuine OEM replacement part is a pulley assembly for dryers. Sometimes called an idler arm, the pulley assembly keeps the dryer drive belt under tension as the belt wraps around the dryer drum. If the dryer is no longer spinning properly and is making a lot of noise, the pulley assembly may need to be replaced. Luckily this repair is a relatively simple process.To remove the old dryer pulley assembly, start by making sure the dryer is unplugged. Remove the lint screen from the top of the dryer. Remove the two Phillips screws by the lint screen opening. Depress the clips that hold the top cover down. Lift the top cover and keep it in an upright position. Disconnect the wire harness to the switch that separates the connector. Remove the screws on the front panel. Lift the panel forward and set it to the side. Next, lift the drum and locate the pulley assembly under the drum. Lift the belt off the motor pulley to remove the assembly. Set the new pulley assembly in the same position as the old one and make sure everything is aligned. Rotate the drum to make sure it rotates smoothly. reinstall the panels.This replacement part is sold individually and is compatible with Bosch, Gaggenau, and Thermador dryers.

Secures and supports your dryer's drive pulley for smooth belt and drum operation. Replace when worn to restore proper pulley alignment and reduce noise.

Suspension spring for dryers. Supports the drum assembly and reduces vibration during operation. Replace if spring is stretched, broken, or missing.

The Blower Belt is an OEM part for Bosch dryers. This belt efficiently transmits rotation from the motor to the blower fan, circulating heated air through the dryer drum.

Causes of a bad blower belt can include drying and cracking from heat exposure over many cycles.

Symptoms of a bad blower belt include:

• The blower fan not spinning or rotating slower than usual
• Longer dry times or an inability to fully dry clothes
• An intermittent squealing or squeaking noise from the belt

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Dryer not drying or taking too long? A worn blower wheel assembly reduces airflow and drying efficiency. This assembly restores proper air circulation.

Replacement leveling foot for dryers. Installs on the bottom corner to elevate and stabilize the appliance. Order if cracked, broken, or missing.

Replacement door hinge for dryers. Supports and aligns the door for smooth opening and closing. Order when your hinge is broken, cracked, or bent.

If your dryer isn't drying efficiently or you notice moisture leaking, the condenser seal may need replacement. This seal prevents air bypass.

Dryer door won't stay closed or latch won't catch? This door latch secures your dryer door during operation. Common fix for door closure issues.
