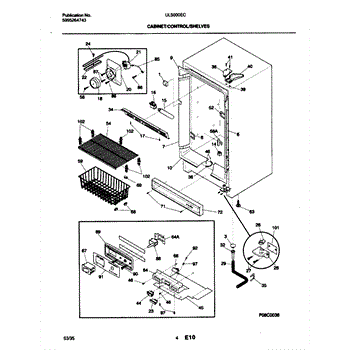

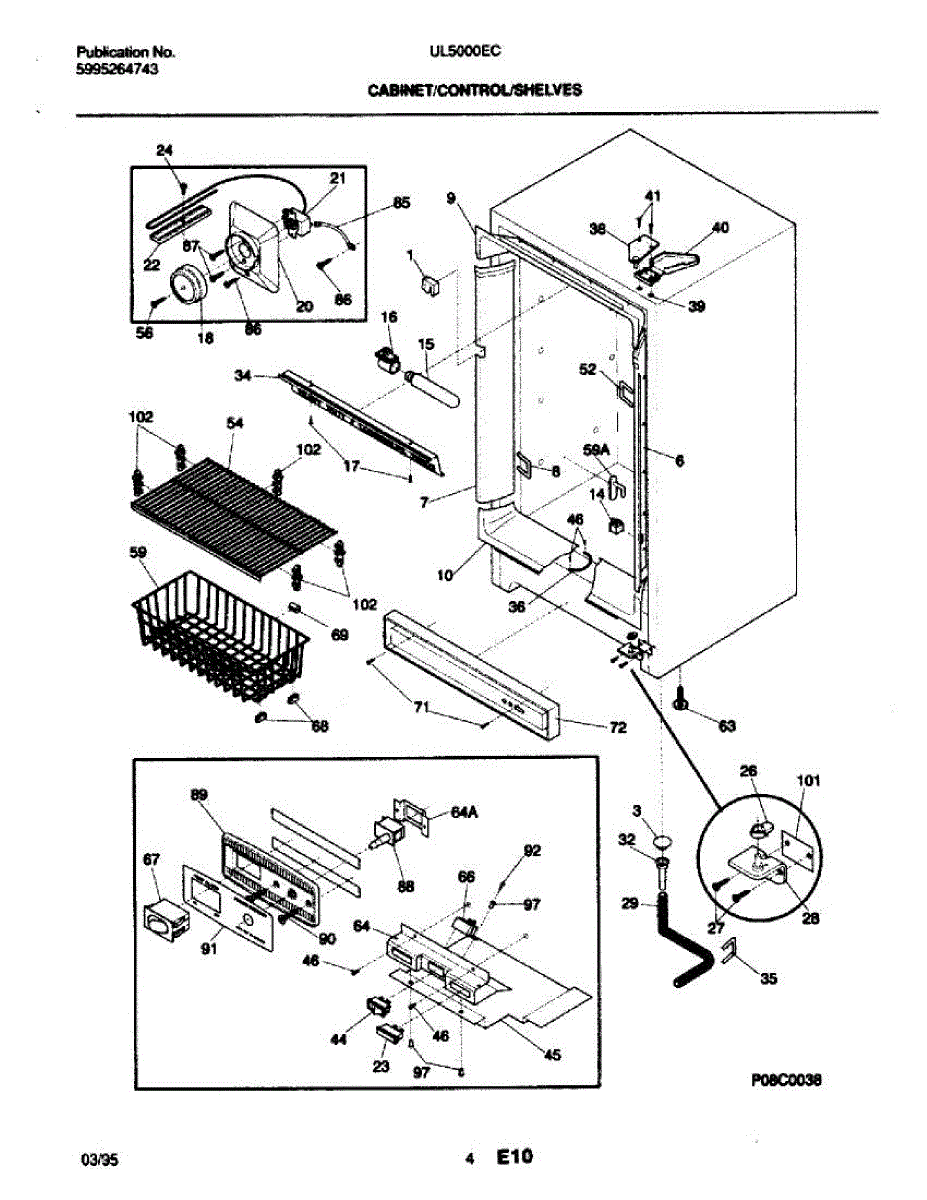

Parts for Frigidaire UL5000ECW0: 05 - Cabinet / Control / Shelves Parts

This door-activated light switch controls the interior lamp in your refrigerator. Replace a worn or sticking switch to restore dependable lighting and prevent the bulb from staying on and warming the compartment when the door is closed.

• Opens and closes the light circuit as the door is opened and closed
• Helps prevent the light from staying on with the door shut
• Common symptoms: interior light won't turn on, stays on with the door closed, or works intermittently
• Physical signs may include a stuck/broken plunger or damaged housing

• Disconnect power before servicing
• Gently pry the old switch from the liner/panel and release its locking tabs
• Transfer wires one at a time to the same terminals on the new switch
• Press the new switch fully into place; restore power, and test

The LED Light Bulb is an OEM part for Frigidaire refrigerators. It provides illumination inside the refrigerator, making it easier to see and access food items.

Causes of a bad LED light bulb can include burnout from prolonged use, electrical surges, or damage from physical impact. Additionally, issues with the bulb's connection or internal circuitry can result in malfunction.

Symptoms of a bad LED light bulb include:

• The refrigerator interior remaining dark when the door is opened
• Flickering or dim light
• Intermittent lighting
• Complete failure to light up

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

A small metal clamp that secures the refrigerator's capillary (temperature sensing) tube to the cold control so the thermostat reads temperatures accurately. Replaces worn or missing clamps to keep the sensing tube stable and prevent movement-related issues. What it does:

• Holds the capillary/sensing tube firmly against the cold control or cabinet
• Helps maintain accurate thermostat sensing by preventing tube movement
• Reduces vibration or rattling from a loose sensing tube
• Stops intermittent temperature swings caused by a displaced capillary tube

• Disconnect power before servicing the appliance.
• Handle the capillary tube gently; avoid kinks or sharp bends.
• Install clamp over the tube and secure to the control or bracket using the factory hole or fastener; do not overtighten.

This drain hose carries water away from your appliance during draining to help prevent backups and leaks. Replace a cracked, clogged, or kinked hose to restore reliable water removal and protect surrounding floors and cabinets. What it does:

• Directs drain water from the outlet or pump to the designated discharge point
• Maintains proper flow; kinks or blockages can cause slow or no draining
• Helps prevent leaks from splits, pinholes, or loose connections
• Common signs: standing water, water under/around the unit, drain-related error codes, or odors

• Includes 1 drain hose

• Disconnect power and shut off water supply before servicing
• Place towels or a shallow pan to catch residual water when removing the old hose
• Note the original routing; seat connections fully, secure with clamps, and avoid sharp bends or kinks
• Run a brief drain/rinse and check all joints for leaks

This sleeve is a small spacer/bushing used in select Frigidaire-built appliances to keep mating parts aligned and moving smoothly. Replacing a worn sleeve helps eliminate play, reduce friction, and restore proper operation.

• Provides a guided, low-friction surface between parts that slide or rotate
• Maintains correct spacing/alignment to prevent wobble and rubbing
• Helps reduce wear on shafts, pins, or fasteners it interfaces with
• Typical symptoms: looseness or wobble, squeaking/scraping noises, uneven movement, or visible cracking/missing sleeve

• Disconnect power before servicing; shut off gas/water if applicable to your model
• Use your model's diagram to locate the sleeve and note orientation before removal
• Clean and inspect the mating shaft/pin or fastener; replace any severely worn components
• Seat the sleeve fully; avoid over-tightening hardware that passes through the sleeve

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

A replacement wire shield that protects appliance wiring from heat, abrasion and contact with sharp edges. Restores routing protection to help prevent chafing, shorts and premature wire wear for safer operation. What it does:

• Covers and shields wiring harnesses from heat, friction and metal edges
• Reduces risk of chafing or insulation damage that can cause shorts or arcing
• Helps maintain proper wire routing and prevents rubbing during normal use
• Visible damage or a burning smell near the cabinet are common signs this shield needs replacement

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove the access panel(s) as needed to reach the damaged shield; keep fasteners for reinstallation
• Slide or secure the shield over the wiring harness and restore any clips or retainers to OEM positions
• Inspect adjacent wiring for damage; replace any wires with compromised insulation rather than relying on the shield alone

This mounting bracket secures the refrigerator/freezer alarm assembly, keeping the alarm in the correct position so alerts are audible and components stay stable. A simple replacement that helps restore reliable alarm operation. What it does

• Holds the alarm module or buzzer assembly in place inside the appliance chassis
• Prevents vibration or movement that can mute or misalign the alarm
• Commonly replaced when alarm is loose, rattling, or not properly secured
• Works with the alarm/buzzer housing to ensure audible temperature or door alerts

• Mounting bracket for alarm assembly

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Basic hand tools (screwdriver, nut driver) are typically required; keep fasteners removed from the appliance
• Match the bracket orientation to the alarm housing and secure all mounting screws snugly—do not overtighten

This replacement slide is a small guide piece that helps a movable component in your appliance travel smoothly and stay aligned, restoring easy, consistent operation when the original wears or breaks and causes sticking or rough movement.

• Guides a moving part along its track for smooth, stable travel
• Helps maintain alignment to reduce friction, binding, and uneven motion
• Worn slides can cause sticking, scraping, popping noises, or misalignment
• Visible wear, cracks, or deformation indicate the slide should be replaced

• Disconnect power and shut off gas/water supplies before servicing
• Note the original slide's orientation and mounting points for accurate reinstallation
• Reuse existing screws/clips if applicable; tighten securely without overtightening
• Cycle the component through its full travel to ensure smooth operation

This is an authentic OEM freezer basket bumper sourced directly from the manufacturer for use on freezer baskets. Freezer basket bumpers are attached to the baskets to keep them from sliding around inside the freezer. If the bumper breaks, the basket will not stay in place, and the contents could shift or fall out. Freezer baskets create more storage room inside a freezer. These baskets are normally located on the bottom of the freezer, with freezer racks located above. Freezer baskets are ideal for storing smaller packages that might not stack well on the racks. Over time, normal wear and tear may cause the bumper to crack or break completely; if this happens, the bumper should be replaced. Remove the contents of the freezer basket. Remove the freezer basket from the freezer. Push the new bumper onto the freezer basket. Replace the contents of the basket and put it back into the freezer. This handle freezer basket is made of high-quality, white molded plastic. It is designed for use in freezers manufactured by Frigidaire, Kenmore, Gibson, and Electrolux.

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.
