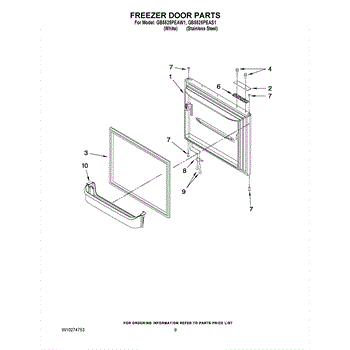

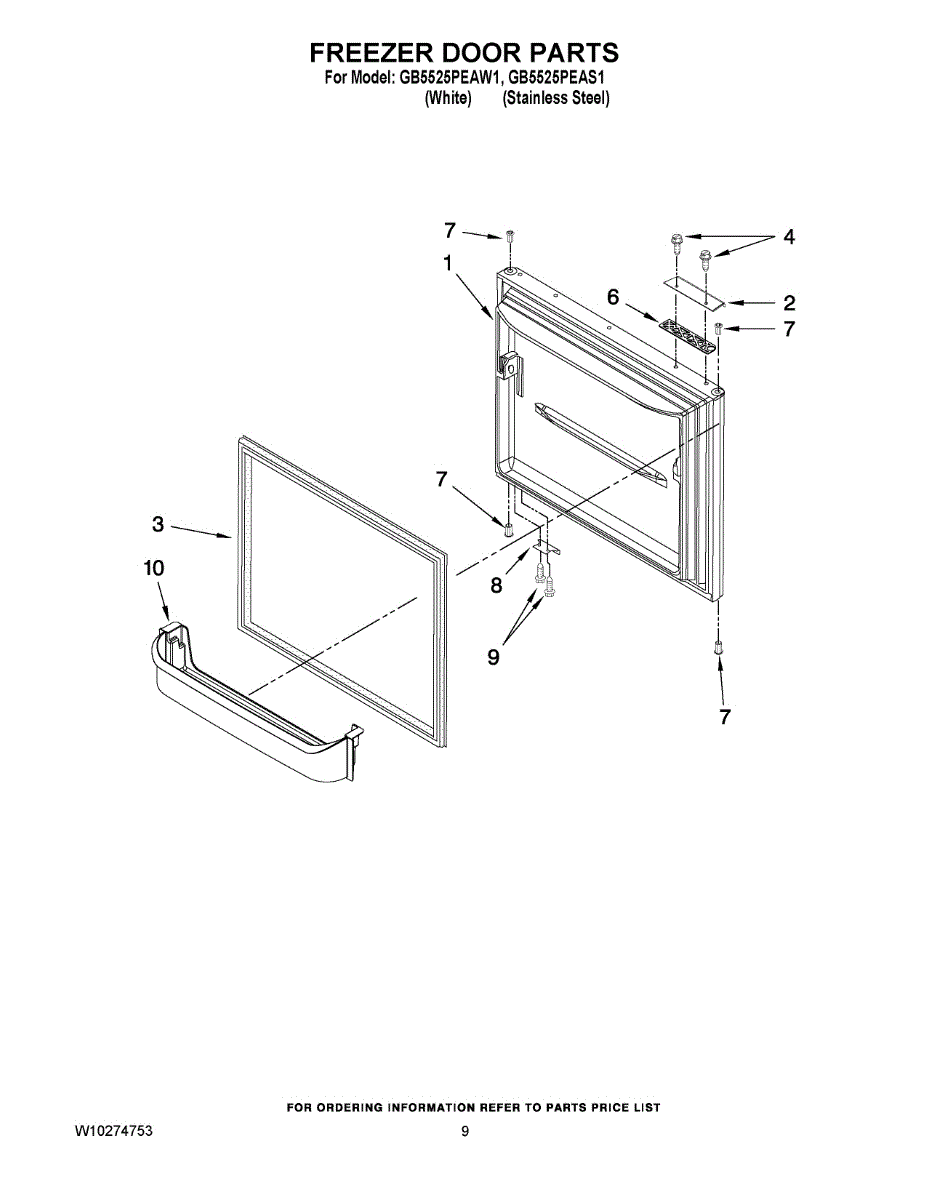

Parts for Whirlpool GB5525PEAS1: 05 - Freezer Door Parts

This refrigerator door gasket seals the door to the cabinet to keep cold air in and moisture out. Replacing a worn or deformed gasket restores a reliable seal, steadier temperatures, and more efficient performance.

• Creates an air-tight seal around the door perimeter
• Helps maintain correct temperatures and reduce frost or condensation
• Supports proper door closing and overall cooling efficiency
• Replace if the gasket is torn, cracked, warped, hardened, or leaves gaps; if the door pops open; or if you see moisture/frost along the door edge

• Disconnect power; remove items from the door bins for access
• Pull the old gasket from the retainer; transfer/loosen corner screws if applicable
• Warm the new gasket (hot water or low-heat hair dryer) to relax it; seat the lip evenly, corners first
• Close the door and check for uniform contact; adjust with gentle heat and by leveling/hinge alignment if needed; allow up to 24 hours for the gasket to fully conform

This door gasket runs around the perimeter of the door opening to create a dependable seal when closed. A proper seal helps limit air and moisture leaks, supporting stable internal conditions, reduced condensation, and efficient performance. What it does:

• Seals the door perimeter to block unwanted air and moisture infiltration
• Helps minimize condensation around the door and maintain consistent internal conditions
• Replaces gaskets that are torn, cracked, warped, or permanently compressed
• Can help when the door won't seal properly or you notice drafts, moisture, or temperature swings

• 1 door gasket

• Disconnect power if removing the door or working near electrical components
• Warm the gasket (soak in warm water or use low heat) to relax it before installation
• Press the gasket fully into the channel/retainer, ensuring corners are completely seated
• Check for uniform contact all around; adjust door alignment if needed and allow up to 24 hours for the gasket to conform

This door hinge bushing restores smooth, stable movement at the refrigerator door pivot. It sleeves the hinge pin to reduce friction and wear, helping the door stay aligned so it closes cleanly and maintains a proper seal.

• Seats in the door hinge to guide the hinge pin and reduce friction
• Helps maintain door alignment and consistent gasket contact
• Replaces a worn, cracked, or missing bushing that can cause noise or binding
• Typical symptoms: squeaking or grinding at the hinge, door sagging/misalignment, door hard to open or close, or not closing flush

• Disconnect power; clear and support the door to prevent strain
• Remove hinge cover and fasteners; lift the door off the hinge pin as needed
• Remove the old bushing from the hinge area and press the new bushing fully into place, matching original orientation
• Reinstall hardware; adjust hinges/level as needed

This door bushing fits on the refrigerator hinge/closer to provide a smooth pivot point and proper door alignment. Replacing a worn bushing reduces squeaks and binding and helps the door close and seal as designed.

• Provides a low-friction bearing surface between the hinge pin/closer cam and the door
• Helps maintain correct door height and alignment to the cabinet
• Promotes smooth door swing and reliable self-closing action
• Typical wear symptoms: squeaking or grinding, binding, door sag, or poor sealing

• Disconnect power and support the door before removing hinge hardware
• Note the order/orientation of hinge parts and any shims; lift off the door carefully
• Install the new bushing on the hinge pin or in the door as shown in your model's diagram
• Reinstall, level, and verify the gasket seals evenly all around

This white door stop limits how far the door swings open, helping protect hinges and nearby surfaces. Replace a worn or missing stop to restore the intended opening range and smooth, controlled door movement.

• Limits door swing to prevent overextension and impact
• Helps protect door hinges and surrounding cabinetry
• Restores proper opening range when the original stop is cracked or missing
• Common signs: door opens too wide, door hits adjacent surfaces, visible broken/missing stop

• Disconnect power and clear items from the door before service
• Support the door to prevent strain on the hinges
• Remove hinge cover and fasteners as needed, swap the stop, and reassemble
• Open and close the door to verify proper swing and gasket seal

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing
