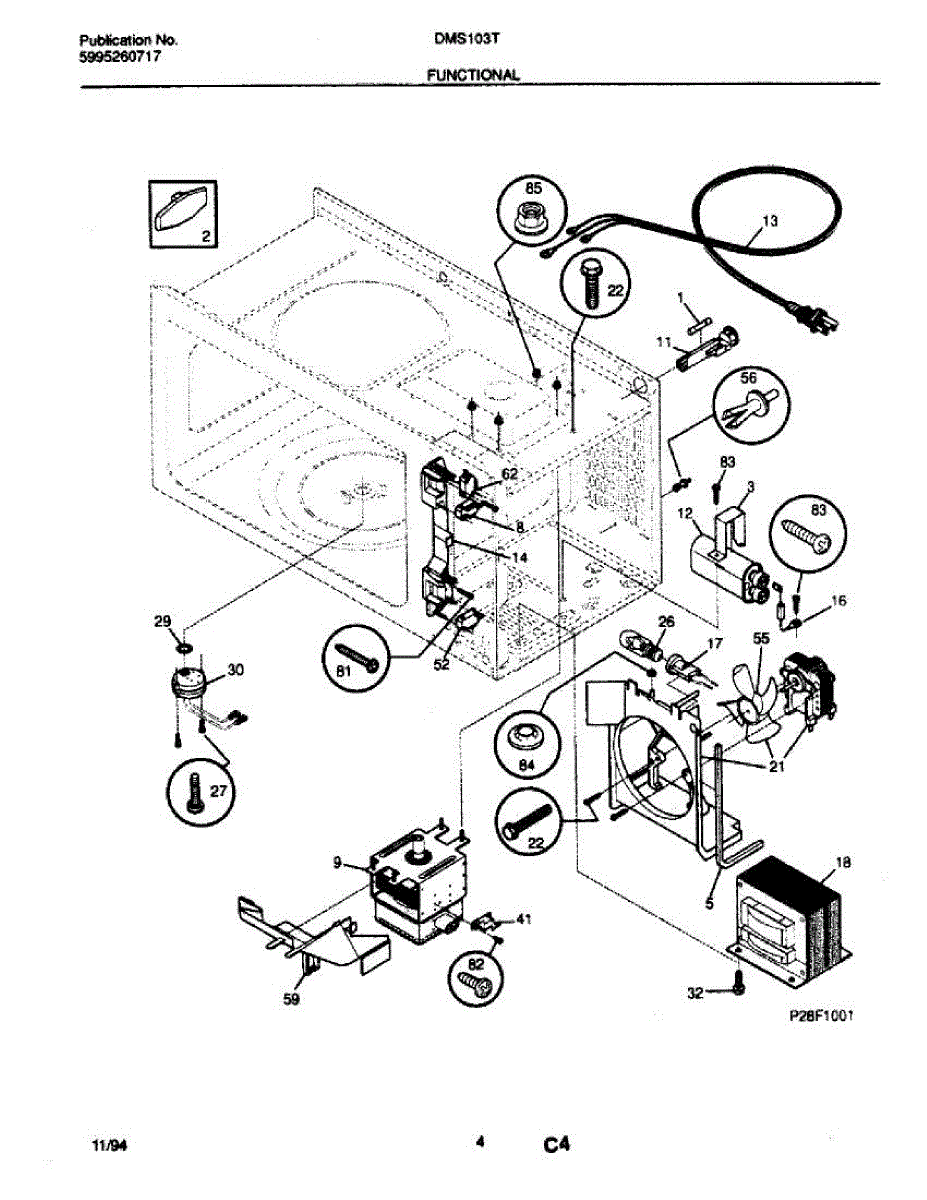

Parts for Frigidaire DMS103T1B1: 05 - Functional Parts

This wire harness assembly includes a mounted diode to route and protect low-voltage signals in the appliance electrical circuit. It replaces a damaged or failed harness to restore proper circuit continuity and component control. What it does:

• Provides the correct wiring and connector fit for the associated control circuit
• Diode ensures current flows in the intended direction to protect sensitive components
• Restores reliable electrical connection when original wiring is frayed or broken
• Can resolve intermittent operation, control failures, or a component that will not activate

• One wire harness assembly with diode installed

• Disconnect power to the appliance before starting any repair
• Verify connectors match and seat fully; route harness away from heat and moving parts
• Replace only with the exact part number to ensure proper fit and function

This turntable seal keeps the washer tub sealed where the turntable/agitator shaft passes through, helping prevent leaks and protecting internal components. A proper seal reduces water loss and keeps the wash action working as designed. What it does:

• Seals the interface between the tub and turntable/shaft to stop water from leaking out of the wash tub
• Helps prevent water damage to the motor and electronics below the tub
• Commonly replaced when you see water pooling under or around the washer or persistent leaking during cycles
• Also replaced if the old seal is cracked, flattened, or hardened and no longer forms a tight seal

• Turn off and unplug the washer and shut off the water supply before starting any work
• Drain the tub and remove the turntable/agitator per the washer's service instructions to access the seal
• Inspect the sealing surfaces for corrosion or debris and clean before installing the new seal

A single #8A x 1/2" screw used to fasten trim, panels, and internal components on compatible appliances. Small but essential, it restores secure mounting and stops loose parts from rattling or shifting. What it does:

• Secures panels, brackets, and trim to the appliance chassis
• Replaces missing, stripped, or corroded screws that cause rattling or loose fittings
• Provides proper thread engagement for consistent, reliable fastening
• Helps maintain alignment of components that depend on a correctly sized screw

• Disconnect power to the appliance before working on any electrical or mechanical components
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening; snug is usually sufficient for sheet-metal fastening
• Keep removed fasteners in a small container to avoid loss during reassembly
