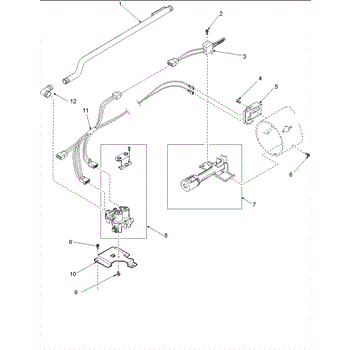

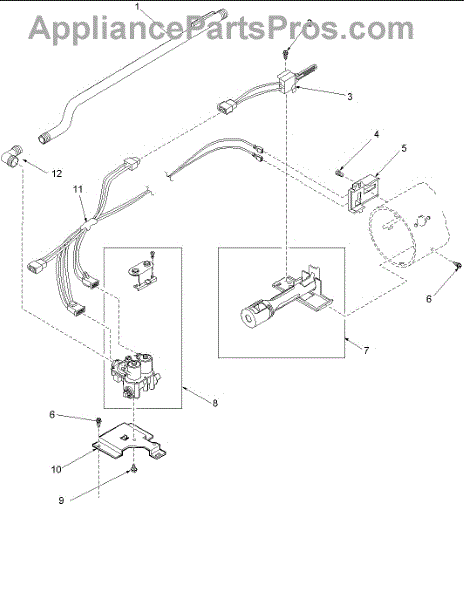

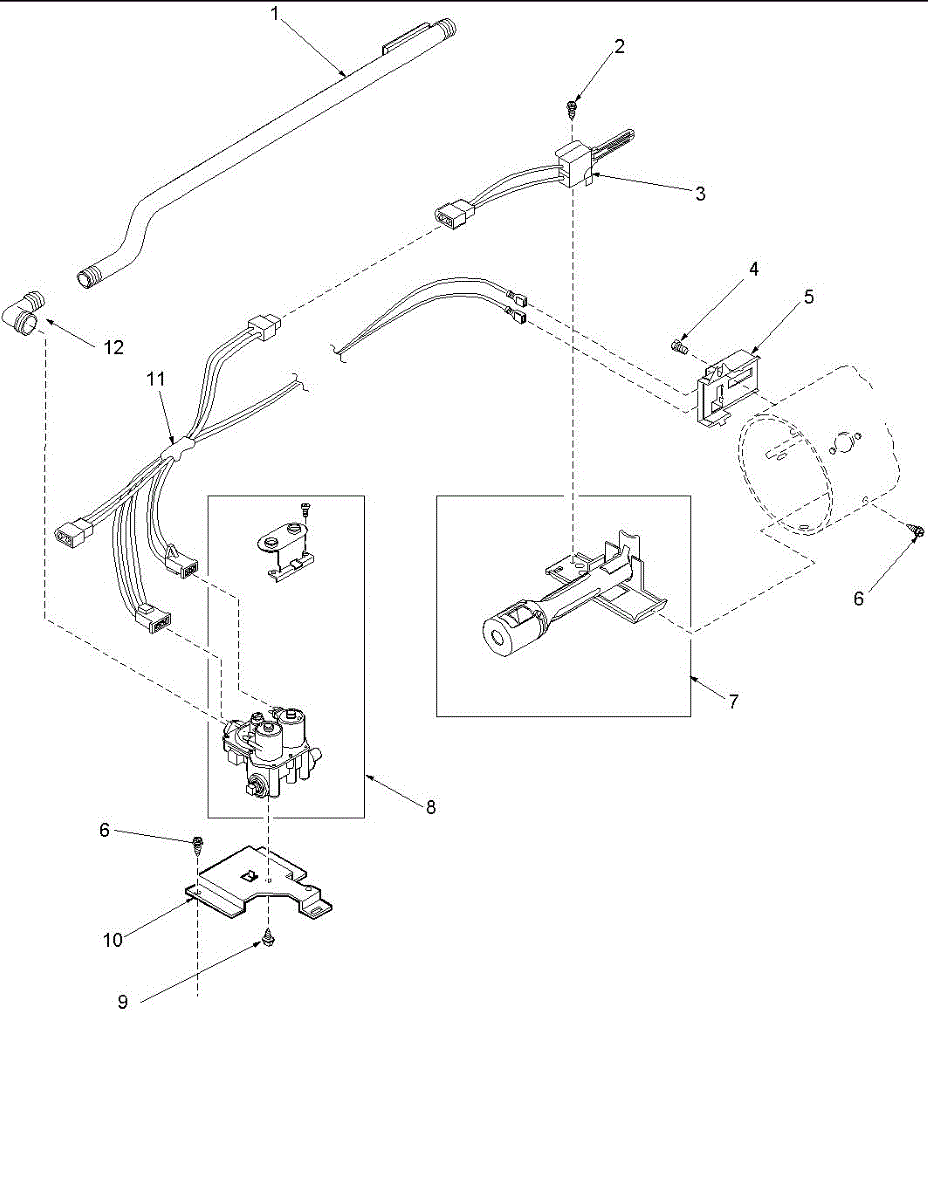

Parts for Amana ALG331RMW / PALG331RMW1: 05 - Gas Valve, Igniter & Gas Conversion Kit Parts

Includes coils. For the coil kit only order 279834.

The Igniter is an OEM part designed specifically for Whirlpool brand gas dryers. It produces the spark to ignite the burner and initiate drying cycles.  If your original ignitor was round, also order bracket 37001309.

Symptoms of a faulty igniter include:

• Inability to start or maintain a flame within the combustion chamber
• Dryer fails to heat or functions intermittently

Potential causes involve typical wear from repeated sparking over many heating cycles. Mineral deposits or moisture intrusion can reduce effectiveness as well.

Compatible models include some brands produced by Amana, KitchenAid, and Kenmore.

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

The Flame Sensor is an OEM replacement part for Whirlpool gas dryers. This component plays a critical safety role by monitoring the presence of the gas burner flame during the drying cycle.

Causes of needing to replace the flame sensor can include normal wear and tear over extended use, exposure to high temperatures or corrosion, or physical damage to the sensor itself.

Symptoms that may indicate a faulty flame sensor include:

• The dryer not heating or producing heat properly
• Error codes related to the gas system or ignition failure
• The dryer shutting off unexpectedly during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas dryer models.

Screw: 8-16 x 3/8 inch.
