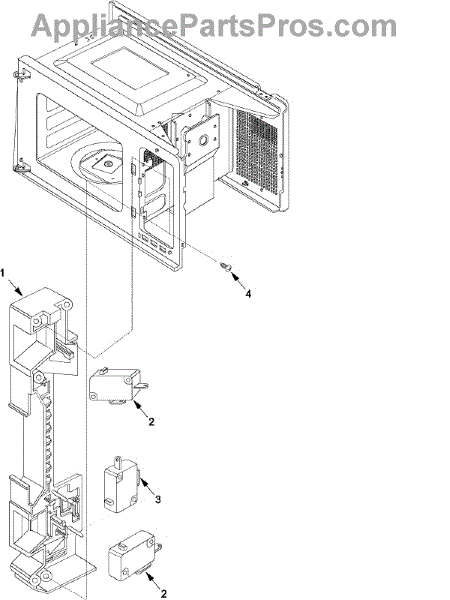

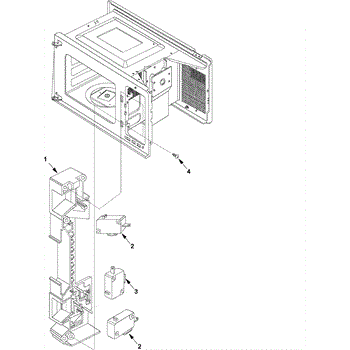

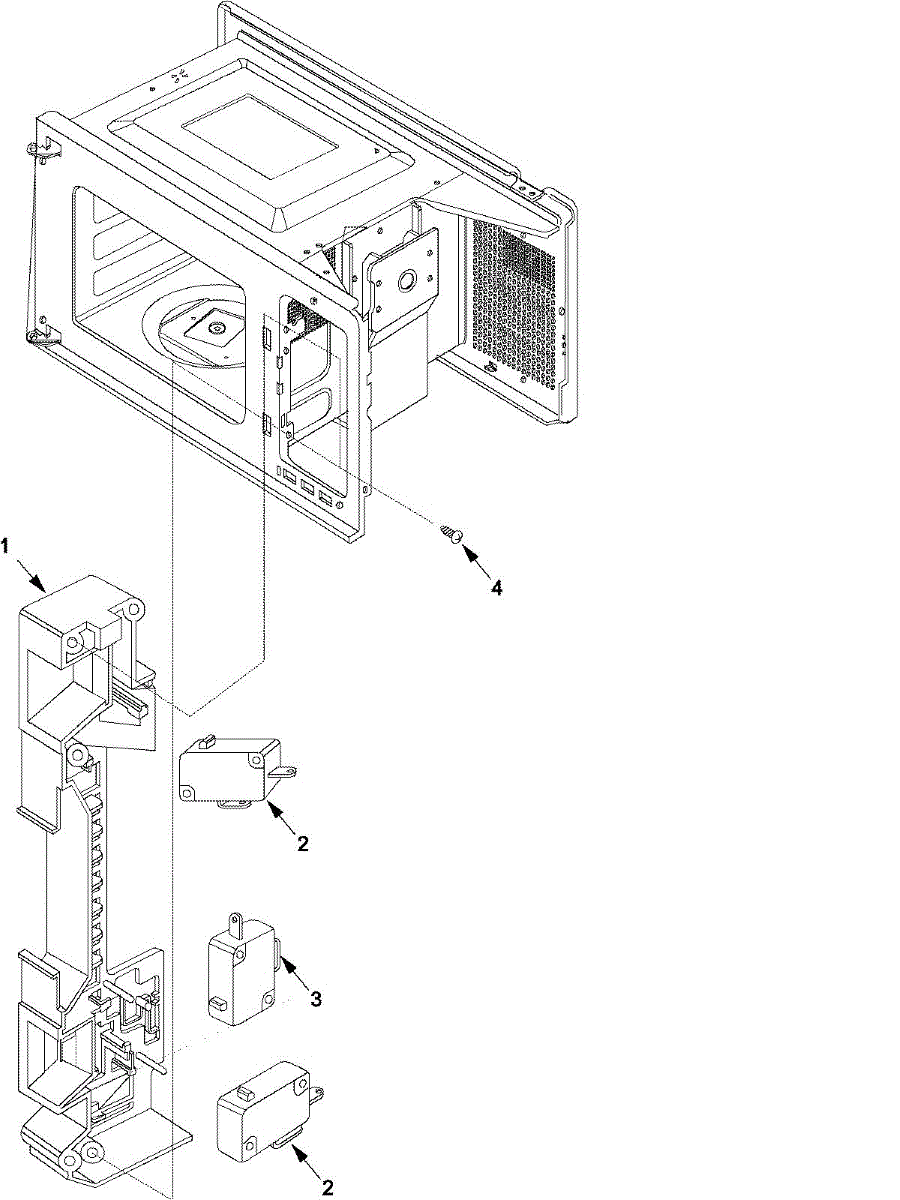

Parts for Menu Master DEL10E / P1329707M: 05 - Latch Board Parts

This mounting bracket secures the door lock/latch assembly to the washer's front panel, keeping the latch properly aligned so the door locks and unlocks reliably during cycles. Replacing a damaged bracket helps restore safe, consistent door operation.

• Holds the door latch assembly firmly in place
• Helps prevent door lock errors and incomplete cycles caused by misalignment
• Common symptoms include door not locking, cycle not starting, or "Door Locked" error codes
• Maintains correct latch position to reduce vibration-related issues

• Unplug the appliance before servicing
• Access is typically from the front; remove the door gasket clamp to reach the latch area
• Support the latch assembly while swapping the bracket to avoid straining wiring
• Test door operation and run a short cycle check after reassembly

This primary door interlock switch lets the microwave know the door is fully closed so cooking can start. Replacing a worn or sticking switch restores reliable start/stop response and helps prevent intermittent operation tied to door-latch signaling. What it does

• Confirms the door is closed to allow the control to power the cook circuit
• Common symptoms of a failed switch: won't start, stops when the door is jostled, or only runs when pressing on the door
• Installs on the latch/door switch bracket alongside secondary/monitor switches
• Helps correct inconsistent or no response when pressing Start

• One primary door interlock switch

• Disconnect power at the breaker; microwaves contain high-voltage components that can retain a dangerous charge
• Access the latch/switch bracket, then release the switch from its clip or screws
• Move wires to the same terminals on the new switch; match orientation/actuator position
• After reassembly, verify the unit does not run with the door open and starts consistently with the door closed
