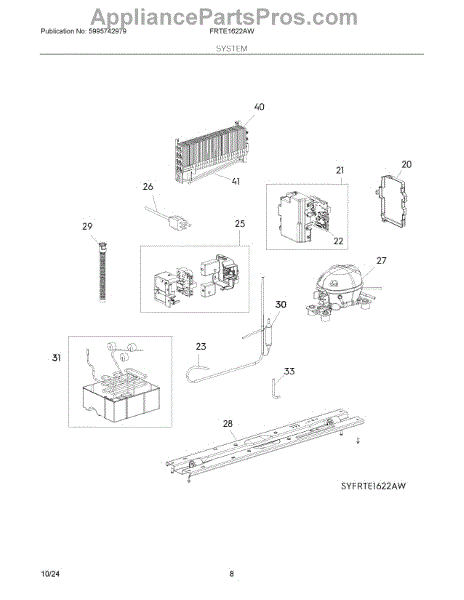

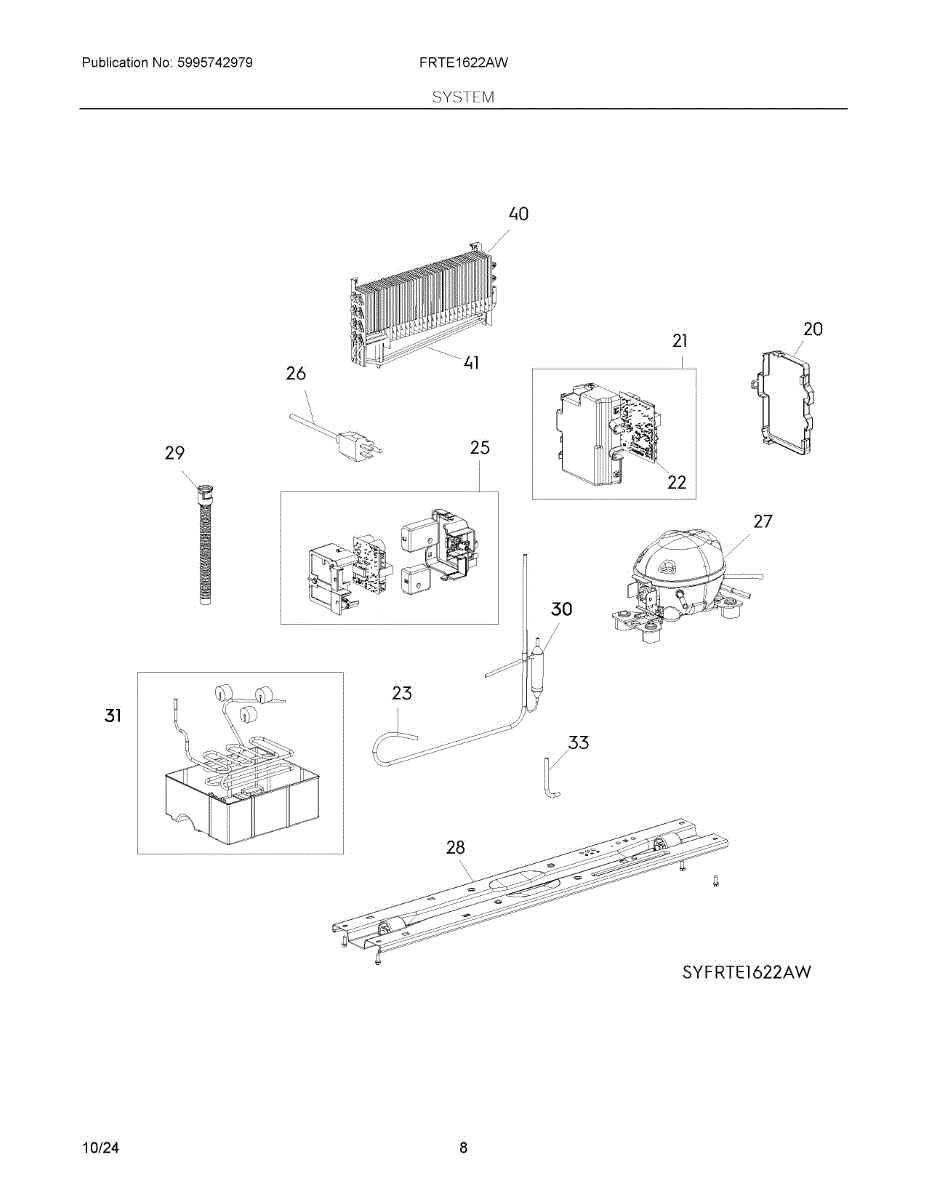

Parts for Electrolux FRTE1622AW: 05 - System Parts

This fill tube directs water from the supply to the appliance's ice maker/cold water system so the dispenser and ice maker can fill properly without leaking. A simple replacement restores a secure water path and prevents drips. What it does:

• Channels incoming water to the ice maker or dispenser so the unit can fill as designed
• Prevents water bypass that can cause puddling or leaks inside the cabinet
• Helps maintain correct water delivery for consistent ice production or dispensing
• Reduces the risk of freeze-up or flow restrictions from damaged or cracked tubing

• Turn off power to the appliance and shut off the water supply before starting
• Use proper tools and follow OEM instructions for disconnecting and reconnecting fittings or clamps
• Inspect nearby seals, fittings, and hoses; replace any brittle or damaged parts to ensure a watertight connection
• After installation, restore water and power and check carefully for leaks during an initial test fill

This sealed evaporator coil circulates refrigerant and absorbs heat inside the freezer compartment to enable proper cooling and defrosting. Replacing a worn or damaged evaporator restores efficient cold production and helps prevent freezer warm-ups. What it does:

• Circulates refrigerant through the sealed evaporator loop to remove heat from the freezer
• Supports proper frost and defrost cycles to maintain even freezer temperatures
• Commonly replaced when leaks, excessive frost buildup, or inadequate cooling occur
• Works with the refrigerator's compressor and expansion device as part of the sealed refrigeration system

• One sealed evaporator coil assembly

• Replacement requires recovering refrigerant and basic sealed-system skills
• Disconnect power before servicing and follow all safety and refrigerant handling regulations
• Inspect associated gaskets, tubing, and defrost components during repair
