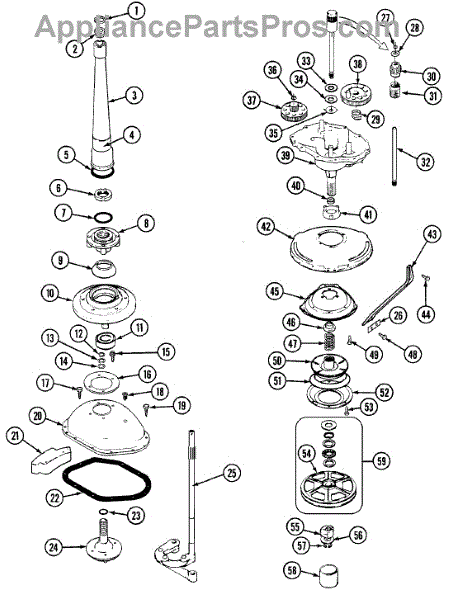

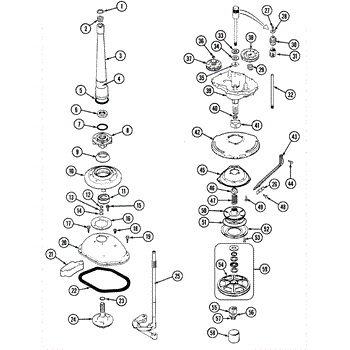

Parts for Magic Chef W224LV: 05 - Transmission (Series 10-11) Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This part has been discontinued by the manufacturer and is no longer available.

The Transmission Lower Lip Seal is an OEM part for Whirlpool washing machines. This seal plays a crucial role in preventing water leakage from the transmission area of the washing machine.

Symptoms of a bad transmission lower lip seal:

• Water leaks or puddles around the base of the washing machine
• Visible wear, cracks, or damage to the seal
• Rust or corrosion around the seal area

Causes of a faulty transmission lower lip seal can include general wear and tear over time, exposure to excessive heat or chemicals, or physical damage from impact or improper handling.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washing machine models.

Screws and instruction sheet included.

This brake spring restores proper tension in the washer's transmission brake so the basket stops promptly and releases cleanly for spin. Replacing a fatigued or broken spring helps bring back smooth, reliable spin and stopping performance.

• Maintains brake tension to hold the basket stationary between cycles
• Releases the brake during spin so the basket can reach proper speed
• Helps stop the basket smoothly at cycle end
• Common signs include no/slow spin, basket coasting too long after spin, or brake squeal/grinding when stopping

• Disconnect power and water before servicing; wear gloves and eye protection.
• The brake spring is under tension—secure the assembly and carefully relieve spring force before removal.
• Access typically requires removing drive components to reach the brake assembly; support the washer safely if tilted.
• After installation, hand-rotate the drive pulley to ensure smooth brake engagement and release before running a test cycle.

The Snubber Ring is an OEM part for Whirlpool washing machines. This part dampens the vibration and noise produced during the washer's spin cycle. Positioned at the base of the tub, the snubber ring provides a cushion that absorbs the impact between the moving parts and the stationary frame of the washer.

Over time, wear or dust on the snubber ring can reduce its effectiveness, causing increased vibration, noise, and stress on the washing machine components, possibly leading to premature failure.

Symptoms of a bad Snubber Ring include:

• Unusual noise during the spin cycle
• The washing machine vibrating more than usual or "walking" across the floor
• Increased wear and tear on other components due to excessive vibration

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Metal housing cover for brake.

Size: 10-24 x .50 HXNI.

The Thrust Bearing Kit is an OEM part for Whirlpool washing machines. This kit is essential for the proper operation of the washer's transmission system, allowing the drive system to engage smoothly and efficiently.

Over time, components within the thrust bearing kit can wear down or become damaged due to the constant stress and movement they endure during the wash cycle. This wear can lead to issues with the washing machine's ability to agitate or spin correctly.

Symptoms of a bad Thrust Bearing Kit include:

• The washing machine is noisy during operation
• The washer struggles to agitate or spin
• The washing machine may fail to spin at all, leaving clothes wet at the end of the cycle
• Excessive vibration during use

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Thrust Bearing Kit is an OEM part for Whirlpool washing machines. This kit is essential for the proper operation of the washer's transmission system, allowing the drive system to engage smoothly and efficiently.

Over time, components within the thrust bearing kit can wear down or become damaged due to the constant stress and movement they endure during the wash cycle. This wear can lead to issues with the washing machine's ability to agitate or spin correctly.

Symptoms of a bad Thrust Bearing Kit include:

• The washing machine is noisy during operation
• The washer struggles to agitate or spin
• The washing machine may fail to spin at all, leaving clothes wet at the end of the cycle
• Excessive vibration during use

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Size: 1.25OD x .530IDX.

Size: 1.25OD x .530IDX.

This retaining ring secures a component on a shaft or within a groove so it stays aligned during operation. Replacing a bent, rusted, or missing ring helps stop wobble, noise, and parts working loose.

• Locks into a groove to keep gears, pulleys, wheels, or spacers from sliding off a shaft
• Helps maintain proper spacing and alignment of moving parts
• Common signs of failure: wobbling parts, scraping/rubbing noises, or components that work loose
• Visual clues: deformation, corrosion, or loss of spring tension

• Disconnect power and any utilities to the appliance before service
• Wear eye protection—retaining rings can spring free under tension
• Note the order/orientation of any washers or spacers before removal
• Use appropriate snap-ring or needle-nose pliers and ensure the ring seats fully in its groove

The Thrust Bearing Kit is an OEM part for Whirlpool washing machines. This kit is essential for the proper operation of the washer's transmission system, allowing the drive system to engage smoothly and efficiently.

Over time, components within the thrust bearing kit can wear down or become damaged due to the constant stress and movement they endure during the wash cycle. This wear can lead to issues with the washing machine's ability to agitate or spin correctly.

Symptoms of a bad Thrust Bearing Kit include:

• The washing machine is noisy during operation
• The washer struggles to agitate or spin
• The washing machine may fail to spin at all, leaving clothes wet at the end of the cycle
• Excessive vibration during use

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
