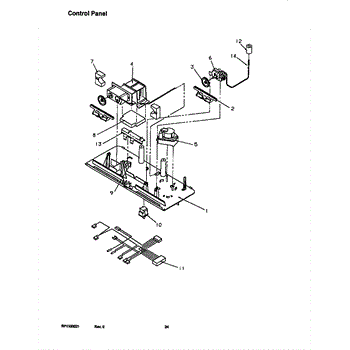

Parts for Amana TRI22S4E / P1196303W E: 06 - Control Panel Parts

This defrost timer assembly cycles the refrigerator between cooling and defrost modes to prevent excess frost buildup and help maintain consistent temperatures. Replace a failed timer to restore regular defrost scheduling and reduce icing. What it does:

• Advances the refrigerator between cooling and defrost cycles on a timed schedule.
• Stops missed defrosts that can cause frost buildup on the evaporator and reduced cooling efficiency.
• Addresses symptoms such as excessive frost/ice, inconsistent temperatures, or a freezer that runs constantly.
• Acts as the control that engages the defrost heater and returns the unit to cooling when the cycle finishes.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Access the timer via the control panel or rear service area; document wiring or take photos before disconnecting.
• Install the timer in the same orientation and reconnect wires to the original terminals; do not force connectors.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
