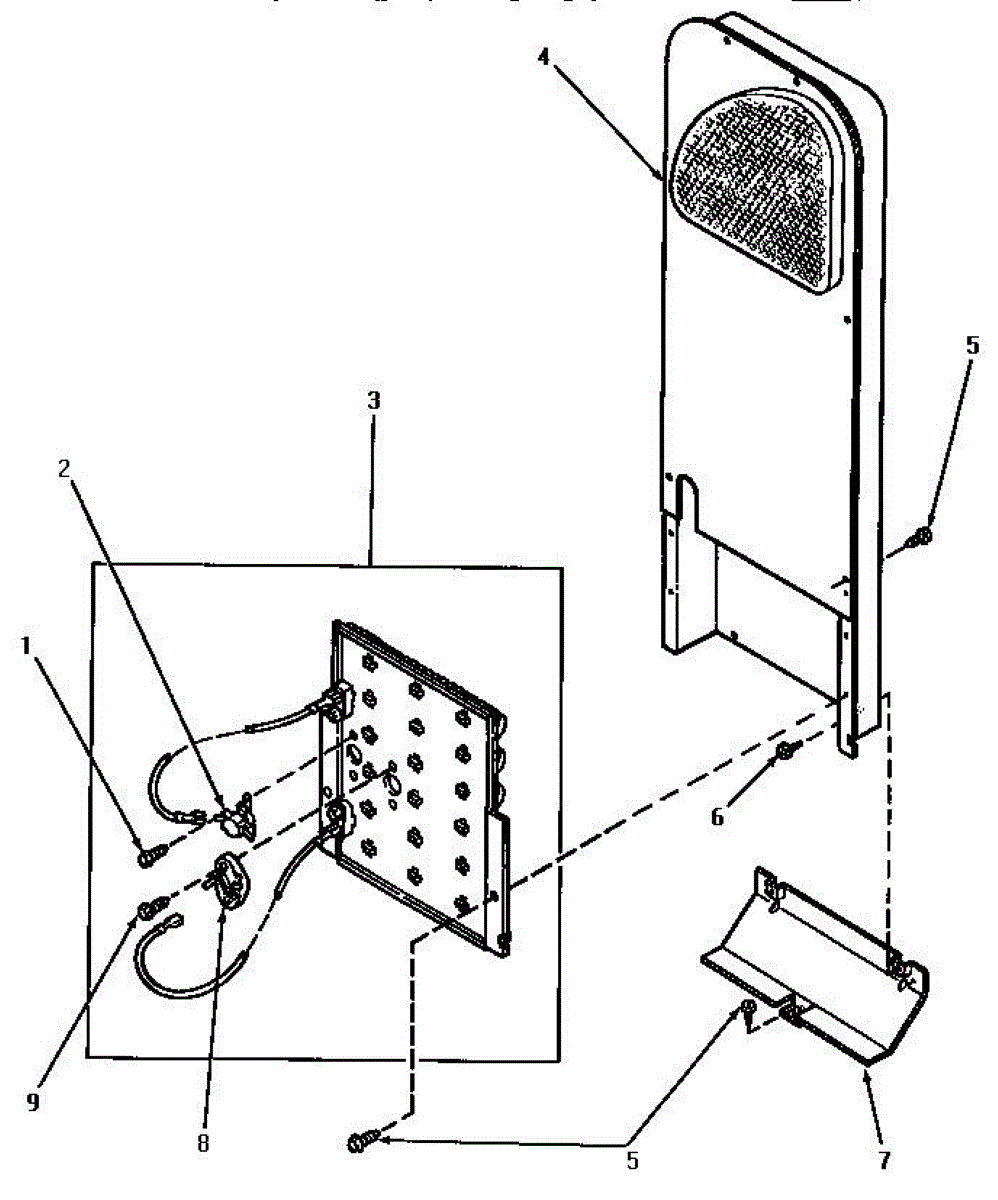

Parts for Amana AEM433: 06 - Heater Box Parts

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

The Hi-Limit Thermostat is an OEM part for Whirlpool dryers. It serves as a safety device that prevents the dryer from overheating by cutting off the power to the heating element if the temperature exceeds a certain limit.

You should replace the hi-limit thermostat if it malfunctions or fails. Causes of a bad hi-limit thermostat can include normal wear and tear, exposure to excessively high temperatures, or electrical issues that affect its functionality.

Symptoms of a bad hi-limit thermostat include:

• The dryer not heating properly
• The dryer shutting off unexpectedly during a cycle
• Long drying times or clothes not drying completely
• The dryer becoming excessively hot to the touch

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 240-volt heater assembly restores the appliance's ability to generate and maintain heat during operation, helping cycles reach designed temperatures for proper performance and results. What it does:

• Converts electrical energy into heat for the appliance's heating circuit
• Helps the unit reach and hold target temperatures during heat-required portions of the cycle
• Replaces a damaged, shorted, or open heating element
• Symptoms can include no heat when expected, longer-than-normal cycles, tripped breakers, or heater-related error codes

• 1 heater assembly

• Disconnect power at the breaker before servicing; 240V circuits can be hazardous
• Document wire locations and move connectors one at a time to the new assembly
• Avoid bending or striking the element; ensure secure mounting and proper clearances
• After installation, check related safety devices (high-limit, thermostats, fuses) and verify the circuit has correct voltage and continuity

This 12-14 x 1/2 screw is a factory fastener used to secure appliance panels, brackets, and components. Replacing a missing or stripped screw restores a tight fit, reduces rattling, and keeps parts properly aligned for reliable operation.

• Secures panels, brackets, and internal components to their mounting points
• Replaces damaged, rusted, or missing hardware
• Helps stop vibration and rattling caused by loose fasteners
• Restores proper alignment and stability of covers or assemblies

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the original screw's location and length; replace one at a time
• Start threads by hand to prevent cross-threading; tighten snugly without over-torquing
• Reinstall any original washers, clips, or spacers used with the screw

10 - 16 x 1/2

This thermal fuse/thermostat kit replaces the dryer overheat safety components to help restore proper thermal protection and prevent overheating. It's used where the dryer fails to heat correctly or stops running due to a safety trip. What it does:

• Serves as the dryer's overheat safety cut-off, interrupting power when temperatures exceed safe limits
• Replaces failed thermal fuse or high-limit thermostat that can cause no-heat or intermittent operation
• Helps stop overheating that could damage the heating element or drum components
• Works with the dryer's control system to prevent unsafe temperature rise

• Disconnect power before starting — this part is on the appliance's electrical/heating circuit
• Access typically requires removing the dryer back panel or control panel; follow OEM service instructions
• Test wiring and continuity before and after replacement; replace both parts if either shows damage
