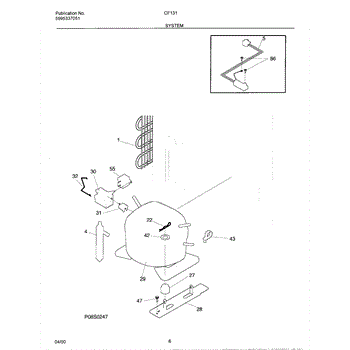

Parts for Frigidaire CF131: 07 - System Parts

Includes service line.

This electrical harness connects appliance control components and power circuits so switches, sensors and modules communicate reliably. Replacing a damaged harness restores consistent power and signal paths for normal operation. What it does:

• Routes and joins multiple wires into a single connector assembly for controls and accessories
• Delivers power and signal connections between control boards, switches, sensors and motors
• Failsafe symptoms: intermittent or no power to affected components, controls not responding, or visible melting/charring at connector points
• Helps prevent shorting and erratic operation when intact and correctly routed

• Always disconnect power at the breaker or unplug the appliance before servicing
• Inspect harness and connectors for visible damage, corrosion or melted insulation; do not reuse a compromised harness
• Route harness along original clips/channels and seat all connectors fully to ensure secure connections
• Basic hand tools required; refer to service manual or schematic for routing and connector locations

This rubber compressor mounting grommet cushions and isolates the compressor to reduce vibration and noise that can transfer to the cabinet. It helps maintain stable compressor positioning for quieter, smoother operation. What it does:

• Absorbs compressor vibration to lower noise and rattling
• Dampens movement that can cause abrasion or wear on mounting hardware
• Helps maintain proper alignment of the compressor assembly
• Common symptom: excessive buzzing, vibration, or rattling from the back of the appliance

• Always disconnect power to the appliance before servicing.
• Support the compressor before removing mounts to prevent shifting or damage.
• Inspect surrounding mounts and hardware; replace any worn or damaged pieces.

The Compressor Run Capacitor is an OEM replacement part for Frigidaire refrigerators. This electrical component is essential for providing the necessary torque to start and maintain the operation of the compressor motor, which is responsible for cooling the refrigerator.

Symptoms of a failing compressor run capacitor include:

• The refrigerator not running or cooling properly
• The compressor failing to start or running intermittently
• Humming or buzzing noises coming from the compressor area

Causes of needing to replace the compressor run capacitor can include normal wear over time, exposure to high temperatures or electrical surges, or physical damage to the capacitor itself.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.
