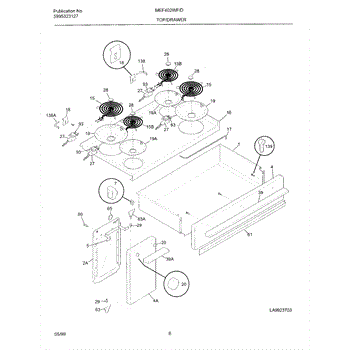

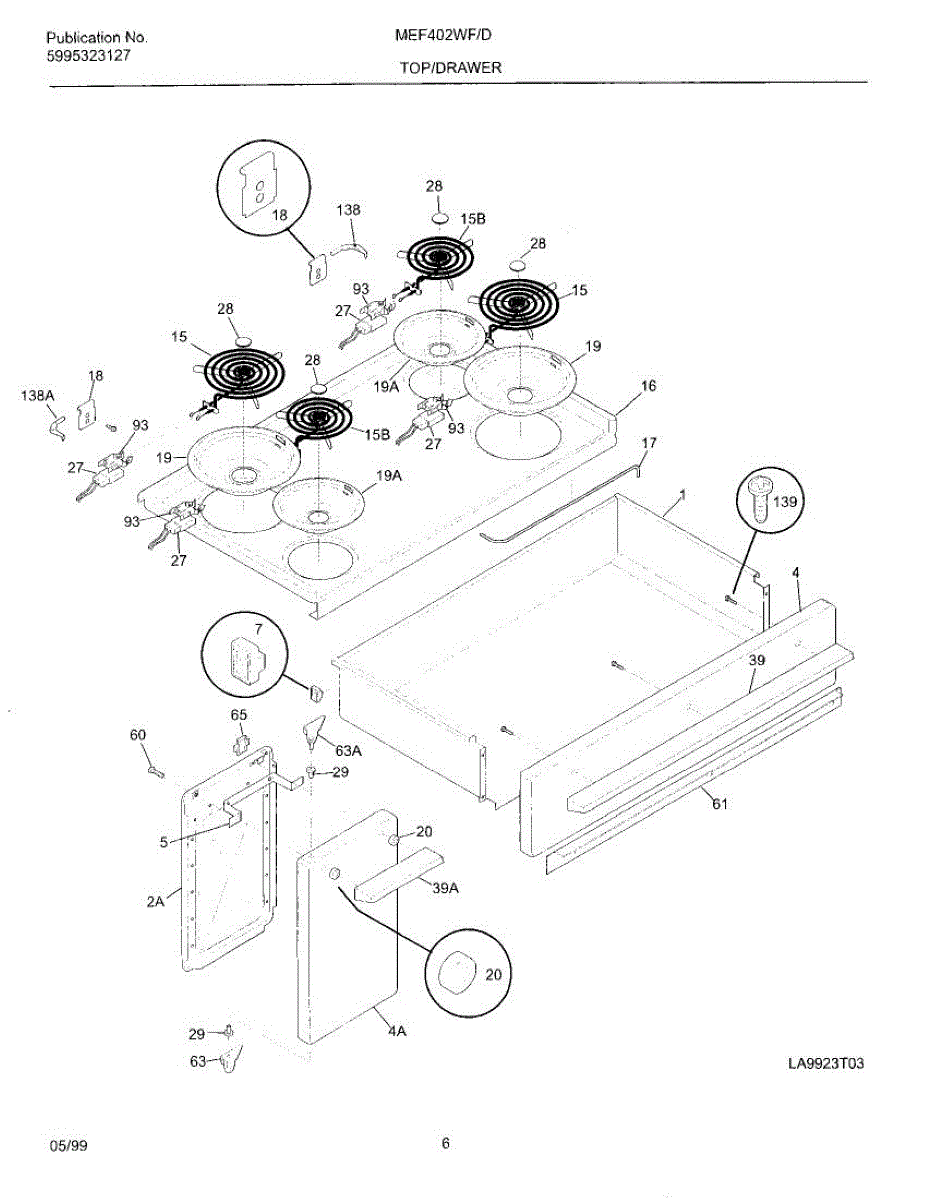

Parts for Frigidaire MEF402WFD2: 07 - Top / Drawer Parts

The Coil Burner Element is an OEM replacement part for Frigidaire cooktops and ranges. The 6-inch coil burner element typically consists of a spiral-shaped metal resistance wire or rod that glows red-hot when electricity passes through it. This heat is then transferred to the cooktop surface, allowing it to reach the desired temperature for various cooking tasks, such as boiling, simmering, or sautéing.

Symptoms of a bad coil burner element:

• Burner not heating up properly or failing to reach the desired temperature
• Uneven heating or hot spots on the cooktop surface
• Visible damage or breaks in the coil wire
• Unusual smells or burning odors emanating from the burner area

Causes of a bad coil burner element can include mechanical failure, electrical malfunctions, or simply reaching the end of its lifespan due to repeated heating and cooling cycles.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore cooktops and ranges.

The Coil Surface Element is an OEM part for Frigidaire ranges and cooktops. It is a key component for cooking, providing the heat source directly under pots and pans. This 8 inch element is designed to heat quickly and maintain consistent temperature, which is essential for effective cooking and energy efficiency.

Symptoms of a bad Coil Surface Element include:

• The element not heating up when turned on
• Uneven heating or hot spots that can cause inconsistent cooking results
• The element not turning off or fluctuating in temperature

Causes of a bad coil surface element can include a breakdown of the coil itself due to general wear and tear, electrical connections becoming loose or corroded, or damage from spills or impacts during cooking.

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This Small Drip Pan is an OEM replacement part for Frigidaire ranges. The Frigidaire Small Drip Pan boasts a durable construction, made of high-quality materials to ensure long-lasting performance.

Over time, exposure to high heat, spills, and frequent cleaning can cause the drip pan to discolor, warp, or rust. A faulty drip pan can result in decreased efficiency and difficulty in maintaining a clean cooking area.

Symptoms of a bad Small Drip Pan include:

• Discoloration or rust
• Warping or misshaping
• Difficulty fitting properly beneath the burner
• Residual spills or drips reaching the burner area

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Large Chrome Drip Pan is an OEM replacement part for Frigidaire cooktops, designed to fit beneath the burner elements. It is responsible for providing a clean surface and maintain cleanliness. The drip pan catches spills and drips that occur during cooking, preventing them from reaching the interior of the stove where they can become burnt-on and difficult to clean. This large chrome drip pan measures approximately 8 inches in diameter.

Causes of a bad drip pan can include frequent exposure to high heat, spills, and regular cleaning, which can lead to discoloration, warping, or rust over time. When the drip pan becomes damaged or worn out, it may no longer effectively catch spills or reflect heat, affecting both cleanliness and cooking performance.

Symptoms of a bad part include:

• Visible signs of damage, wear, rust, or corrosion on the drip pan
• Uneven stove element
• Difficulty cleaning spills and grease accumulating on the pan
• Unsightly appearance of the stove
• Difficulty cleaning the stove surface

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This medallion is the decorative nameplate that restores the appliance's original appearance and identification on the control panel or door. It replaces a cracked, faded, or missing emblem to improve cosmetics and reuse value. What it does:

• Restores the appliance's factory appearance by replacing a damaged or missing decorative emblem
• Helps ensure model/brand marking remains visible
• Covers cosmetic damage on the control panel or door area
• Matches OEM fit and finish for a seamless visual match

• One medallion kit

• Disconnect power to the appliance before service
• Clean and dry the mounting surface before installing for best adhesion/fit
• Align carefully; press or secure per OEM instructions to avoid damage

This hinge pin spacer helps position the refrigerator door hinge pin for proper door alignment and smooth operation. It replaces a worn or missing spacer to restore correct hinge spacing and reduce door binding. What it does:

• Holds the hinge pin at the correct height and offset for the upper or lower door hinge
• Helps prevent door sag, misalignment, and uneven sealing
• Reduces metal-on-metal contact and rubbing that can cause noise or wear
• Works at either the upper or lower hinge location as specified for your model

• One hinge pin spacer

• Disconnect power to the appliance or unplug the refrigerator before starting any repair
• Support the door while removing hinge hardware to prevent the door from falling
• Reuse existing hinge pin and hardware unless damaged; replace any worn fasteners

This clip secures the appliance's terminal block to the chassis, keeping wiring stable and preventing strain on electrical connections. It's a small, durable mounting clip used where the terminal block needs a fast, reliable hold. What it does:

• Holds the terminal block firmly to the appliance frame to reduce wire movement and wear
• Helps maintain safe, stable electrical connections by preventing strain on terminal wires
• Prevents the terminal block from shifting during use or service
• Compatible with standard terminal block locations that use a push-in or snap-mount clip

• One terminal block mounting clip

• Always disconnect power before accessing or servicing electrical components
• Remove access panels and locate the terminal block; clip typically snaps into a chassis slot or aligns with an existing mounting boss
• Handle wiring and terminals gently to avoid loosening connections; verify all wires are secure after reinstall

This left hinge pin secures and guides a refrigerator door's pivot at the hinge assembly, restoring proper alignment and smooth opening. Use it to stop door sag, eliminate catching, and help the seal close evenly. What it does:

• Fits into the left hinge assembly to act as the pivot point for the door
• Keeps the door aligned so it opens and closes smoothly
• Prevents door sag and rubbing that can cause gaps or uneven sealing
• Common symptoms this part helps with: door won't stay closed, door leans or drags, noisy or stiff hinge movement

• One left-side hinge pin

• Support the door before removing hinge fasteners to prevent injury or damage
• Remove items from the door and, if present, disconnect any electrical connectors on the door first
• Use proper tools and keep track of hinge screws/washers during reassembly

This replacement 10-24 x 3/8 machine screw secures panels, brackets, and small components in compatible Frigidaire appliances. It restores proper fastening where a missing or damaged screw allows parts to shift or rattle. What it does:

• Fastens metal or plastic appliance parts such as trim, brackets, or small assemblies
• Helps eliminate movement, rattling, or loose connections caused by missing or stripped screws
• Restores safe, secure mounting for controls and hardware
• Matches OEM size for proper fit in designated threaded holes

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or nut driver to avoid stripping the head
• Start threads by hand to ensure alignment; tighten until snug — do not over-tighten
• Replace any stripped mating hardware or use correct thread engagement for secure fit

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts
