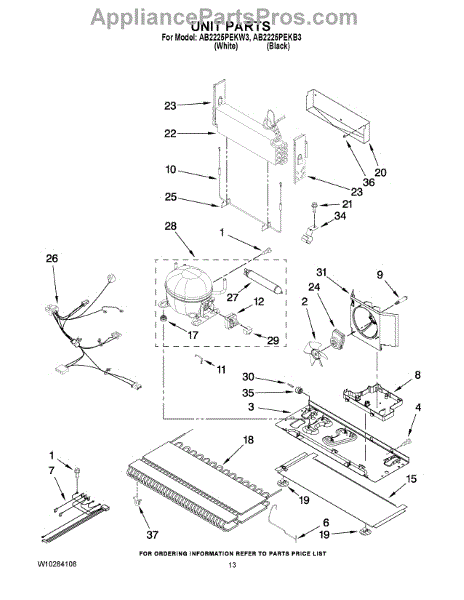

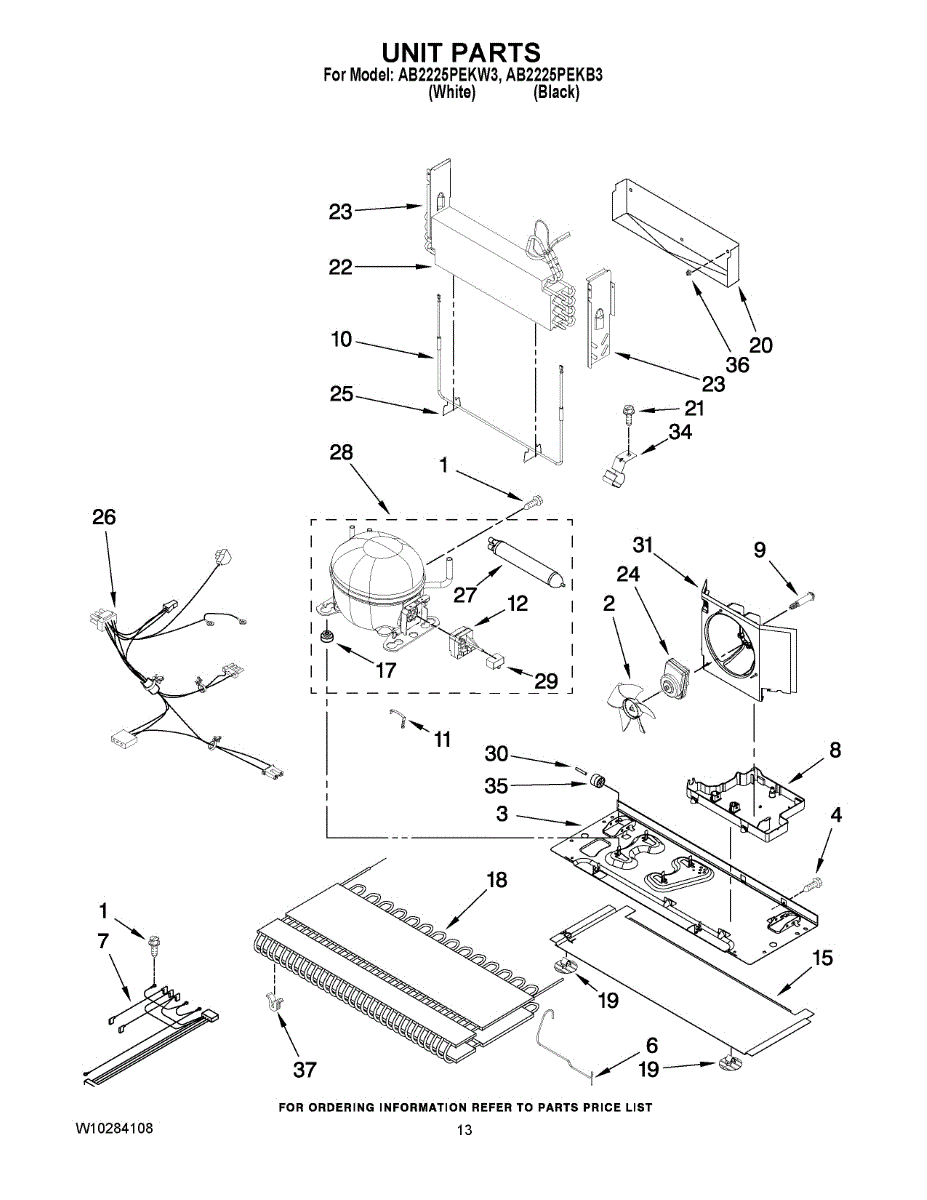

Parts for Maytag AB2225PEKB3: 07 - Unit Parts

This condenser fan blade restores the airflow that carries heat away from the condenser coils and compressor. Replacing a cracked, warped, or loose blade helps your refrigerator remove heat properly so it cools reliably and runs more quietly. What it does

• Draws room air through the condenser coil and over the compressor to dissipate heat
• Helps maintain stable cabinet temperatures and overall cooling performance
• Typical failure symptoms: fan not spinning or moving enough air, wobbling or rattling from the rear base, weak cooling, compressor running hot

• 1 condenser fan blade

• Unplug the refrigerator and remove the rear lower access panel before servicing
• Note the blade's orientation; pull the old blade straight off the motor shaft and press the new blade on until fully seated
• Ensure proper clearance in the shroud and spin by hand to confirm it turns freely
• Wear gloves and eye protection; keep hands clear of the blade during testing

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This refrigerator drip pan, also called an evaporator drain pan, mounts on the base to catch defrost water and allow it to evaporate. Replacing a cracked or warped pan helps prevent puddles and moisture damage around the appliance. What it does:

• Collects water from the defrost cycle and holds it for evaporation using condenser/fan airflow
• Helps keep water off the floor and out of the cabinet base area
• Typical failure symptoms include water under or behind the refrigerator, recurring puddles after a defrost cycle, visible cracks/warping, or musty odors
• Restores proper fit when the original pan is damaged, heat-distorted, or missing

• 1 refrigerator drip pan

• Disconnect power and pull the unit forward to access the rear; wear gloves and use caution around sharp metal edges
• Remove the lower rear access panel; carefully lift and remove the old pan from its supports
• Clean the area; transfer any pads or clips from the old pan if present; seat the new pan fully on the supports/locators so it's level and secure
• Reinstall the rear panel, return the refrigerator to position, restore power, and check for correct placement after the next defrost cycle

This genuine replacement screw secures appliance components for reliable fit and function, helping restore proper assembly and reduce rattling or loose panels. Use it to replace a stripped or missing fastener during repairs. What it does:

• Fastens panels, brackets, or components to maintain structural stability
• Prevents movement that can cause noise, vibration, or misalignment
• Replaces stripped, corroded, or missing screws to restore secure assembly
• Compatible where the OEM mounting screw is required for safe operation

• Turn off and unplug the appliance before performing any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Do not overtighten; snug until secure to prevent damage to parts
• If other fasteners show wear, inspect and replace as needed for safe operation

This evaporator heater is the refrigerator defrost element that melts frost and ice from the evaporator coil so the cooling system runs efficiently and food stays properly chilled. Replaces a failed or broken defrost heater to restore normal defrost cycles. What it does:

• Heats the evaporator coil during the defrost cycle to remove ice buildup
• Helps restore proper airflow and consistent temperatures in the fresh food/freezer compartments
• Common symptom: visible ice or frost buildup on the evaporator or inside the freezer
• Common symptom: refrigerator runs constantly or temperatures are warmer than normal
• Works with the appliance's defrost control and thermostat to prevent overcooling of the coil

• Disconnect power to the appliance before servicing to avoid electrical shock
• Access typically requires removing interior panels and the evaporator cover
• Handle the heater element and evaporator coil carefully to avoid bending or puncturing the tubing
• After installation, run a manual defrost or a complete cooling cycle to verify operation

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

This condenser coil assembly removes heat from the refrigerant so your refrigerator can maintain proper cooling. Replaces a damaged or corroded condenser to restore efficient heat transfer and stable internal temperatures. What it does:

• Circulates refrigerant through condenser coils to dissipate heat from the cooling circuit
• Helps the compressor operate within normal temperature range for reliable cooling
• Commonly needed when coils are bent, corroded, or leaking, or when the appliance runs warm
• Addresses symptoms such as reduced cooling performance, prolonged run times, or visible coil damage

• Disconnect power to the appliance before starting any repair.
• Handle the coil carefully to avoid bending fins or damaging connections.
• Some disassembly of the rear or bottom access panel may be required; keep fasteners organized.
• If refrigerant lines are opened or leaking, refrigerant handling requires certification.

This fastener is a small mounting clip used to secure panels and components in place, restoring proper fit and preventing rattles or loose parts. It's a simple replacement that helps maintain appliance stability and noise-free operation. What it does:

• Secures trim, panels, or small components to the appliance frame
• Prevents vibration and rattling caused by loose parts
• Restores proper alignment of the secured piece after damage or wear
• Commonly replaced when clips are broken, bent, or missing

• One replacement fastener

• High-level, do-it-yourself friendly replacement; basic hand tools may be required
• Disconnect power and water before servicing for safety
• Inspect mating hole or bracket for damage before installing new clip
• Tighten or seat clip fully to ensure secure fit; avoid forcing parts to prevent breakage

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

This running capacitor restores proper motor operation by providing the phase shift needed for fan and compressor motors. It helps motors run smoothly and reduces overheating or hard-start symptoms when the original capacitor fails. What it does:

• Provides the steady electrical phase shift required for motor operation in refrigeration and HVAC systems
• Helps restore normal motor starting and running performance
• Can reduce motor overheating, humming, or intermittent operation caused by a bad capacitor
• Used when the motor runs poorly, won't reach full speed, or cycles unusually

• 1 running capacitor

• Disconnect power at the breaker and verify the appliance is de-energized before servicing
• Discharge the capacitor with an insulated tool and wear insulated gloves and eye protection
• Replace with the same type and mounting orientation; secure all wire connections firmly

This axle roller is the replacement support shaft that lets the appliance's rotating assembly turn smoothly and quietly. Installing a new axle roller corrects wobble and reduces grinding or squealing caused by a worn shaft. What it does:

• Supports the rotating drum or rack so it spins freely and stays aligned
• Helps prevent metal-to-metal contact that causes loud noise or scraping
• Stops uneven rotation and vibration that can lead to further wear
• Restores smooth operation when an original axle is bent, worn, or broken

• Disconnect power (and gas, if applicable) before starting any repair
• Access location and removal steps vary by model; follow the OEM service manual or diagram
• Inspect related parts (pulleys, idler, glides, bearings) and replace if they show wear
• Use basic hand tools; keep fingers and loose clothing clear of moving parts during testing

This rear roller is a replacement for the rollers in a refrigerator. The rollers are not used often, but they have an important purpose. They make it easier to move the refrigerator from one area to another. If the roller had been damaged and is not working properly, it will be difficult to maneuver the refrigerator. Replacing the damaged roller with a new one before moving the refrigerator a long distance is a good idea.The rollers on the refrigerator are meant to handle a lot of pressure. However, they can still wear down and break eventually. They could also be damaged during a previous move. Before replacing the rear roller, unplug the refrigerator and remove the connection to the water supply. The replacement will require only a few tools, such as a screwdriver. It may require moving other parts of the refrigerator to get access to the rear rollers.The rear roller will work for certain models of refrigerators from Whirlpool, GE, KitchenAid, Inglis, Maytag, Admiral, International, Amana, Jenn-Air, Crosley, and Magic Chef. This is a genuine OEM replacement part that is sold individually.

This evaporator clip secures the refrigerator evaporator assembly and related components so the cooling system stays aligned and vibration-free. It helps maintain proper airflow and prevents rubbing or loose parts. What it does:

• Holds the evaporator coil/assembly or associated covers in place
• Prevents vibration, noise, and contact between the coil and cabinet parts
• Helps maintain consistent airflow for reliable cooling performance
• Commonly linked to rattling, buzzing, or loose parts around the freezer evaporator

• Disconnect power before servicing the appliance
• Handle evaporator and surrounding fins carefully; they are sharp and fragile
• Verify clip orientation against the OEM diagram before fastening

This rubber condenser grommet cushions and secures the condenser assembly to reduce vibration and noise, helping the refrigerator run quieter and preventing wear where the condenser mounts to the cabinet. What it does:

• Cushions condenser mounting points to reduce rattling and vibration
• Helps prevent metal-on-metal wear between condenser and chassis
• Keeps the condenser properly seated for reliable airflow
• Reduces noise caused by loose or worn condenser mounts

• Disconnect power to the appliance before beginning any service
• Access the condenser area per your model's service instructions
• Remove the old grommet and press the replacement into the mounting hole until seated
• Do not use solvents or adhesives unless specified by the manufacturer; wear gloves to protect hands

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
