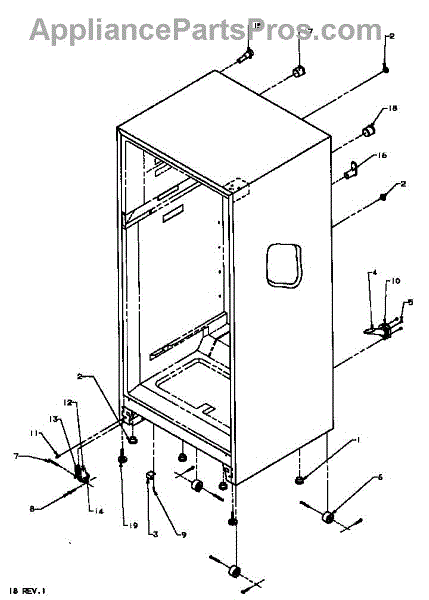

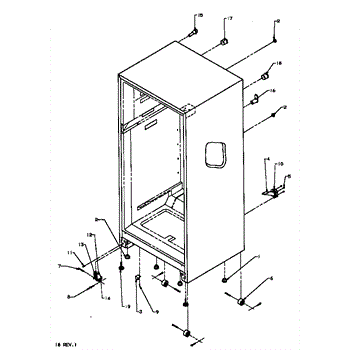

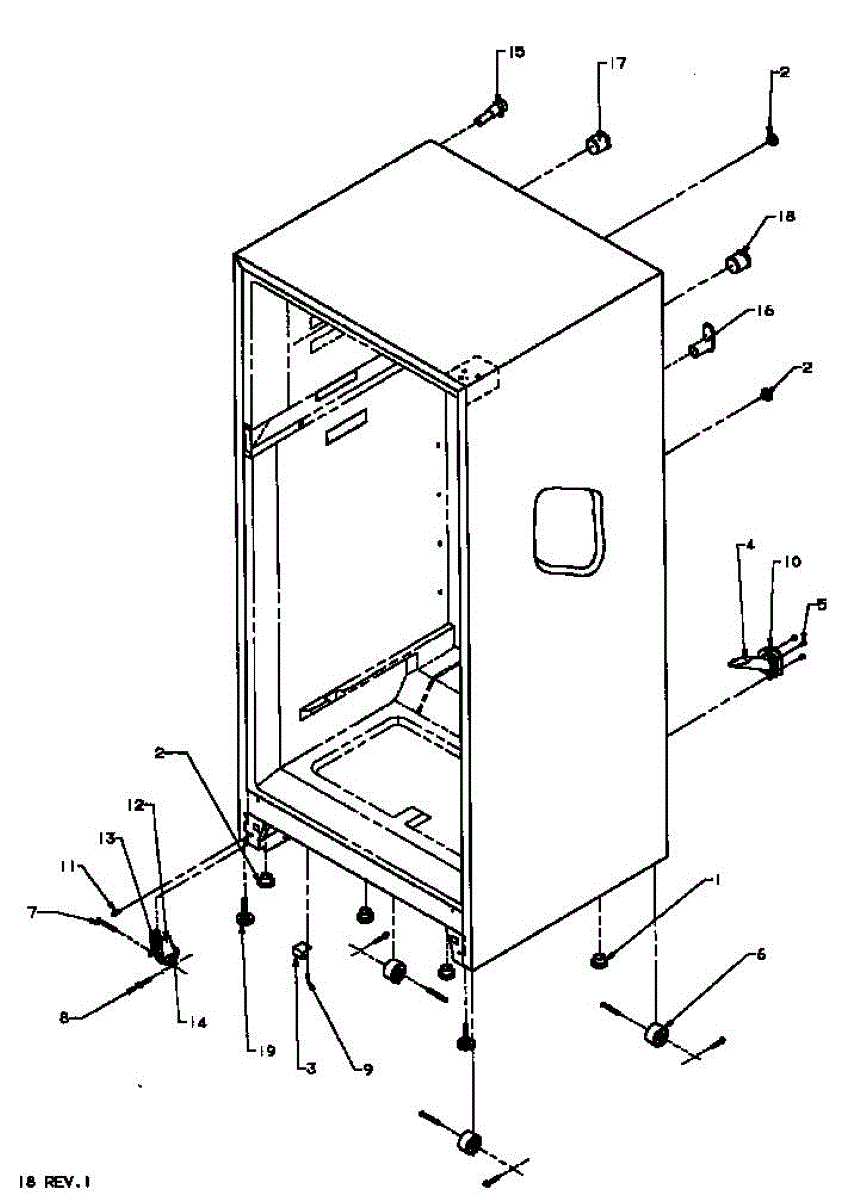

Parts for Amana 85385 / P1117205W E: 08 - Rollers And Drain Tube Parts

This elbow drain tube redirects drain water through a tight 90° turn to the appliance drain path, restoring proper drainage and preventing leaks from cracked or damaged tubing. A direct-fit replacement for worn or broken drain elbows. What it does

• Guides wastewater from the pump or internal drain outlet into the drain hose or drain channel
• Restores a secure, leak-free connection when the original elbow is cracked, split or deformed
• Helps maintain proper flow by providing a smooth, angled transition that reduces kinking
• Commonly replaced when you see leaks, visible damage, or poor drainage

• One elbow drain tube

• Disconnect power and water before starting any repair
• Remove access panels as needed to reach the original elbow; replace with the new elbow in the same orientation
• Ensure all clamps or retaining tabs are secured to prevent leaks; test with a short water/run cycle

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This small metal fastener secures the roller assembly to the refrigerator's bottom panel, allowing smooth door movement. Located underneath the appliance, it needs replacement if the refrigerator rocks, tilts, or has difficulty rolling when moved.

This part has been discontinued by the manufacturer and is no longer available.

Adjustable leveling foot that supports and stabilizes your refrigerator. Replace if worn, broken, or missing to eliminate wobbling and vibration.
