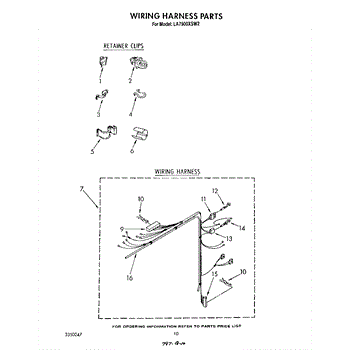

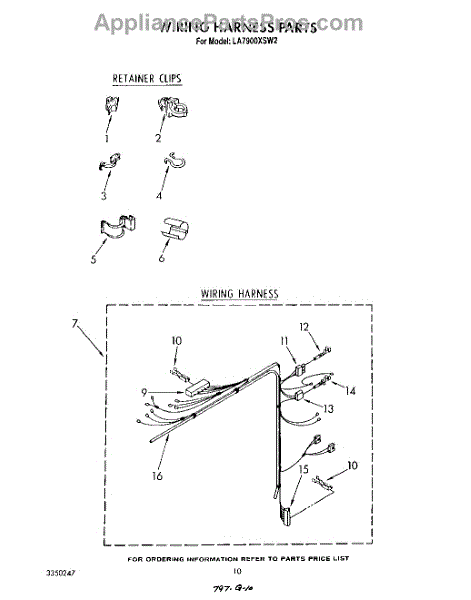

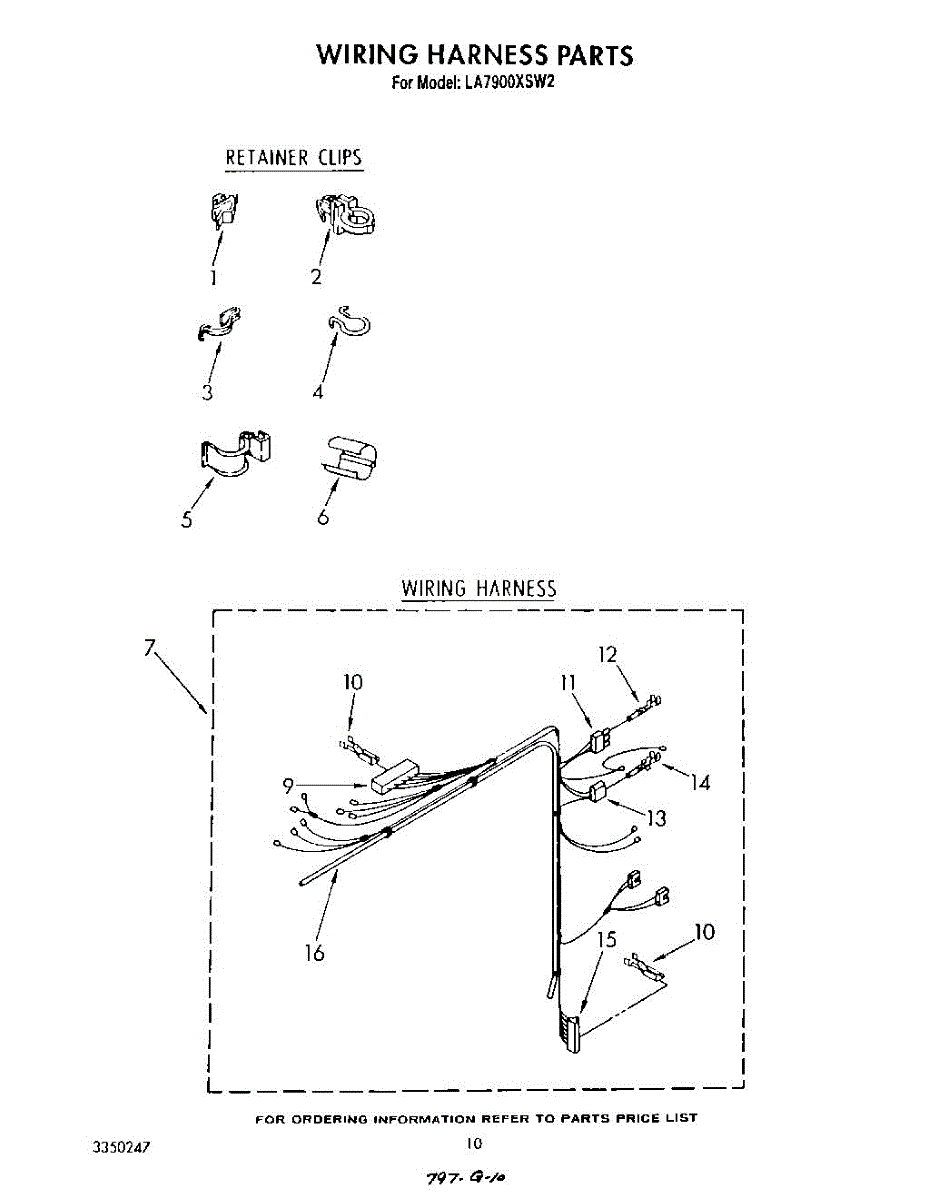

Parts for Whirlpool LA7900XSW2: 08 - Wiring Harness Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Used from harness to top.

Wire connector block for washers. Transfers electrical connections between wiring harnesses. Replace if connector housing is cracked or melted.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Used for lid switch.

For mating terminal use [AP31136300].

For mating plug use 691707.

For mating terminal use WP94614.

This 10-circuit connector housing provides a secure plug-style connection for the appliance wiring harness, restoring reliable electrical contact where the original plastic connector is cracked or melted. It helps ensure circuits stay seated and insulated. What it does:

• Replaces a damaged or cracked 10-circuit plastic connector housing to restore a proper plug connection
• Secures wiring harness terminals to prevent intermittent power or signal loss
• Keeps electrical contacts insulated from vibration and moisture
• Useful when the mating connector body is broken, burned, or otherwise unusable

• One 10-circuit connector housing

• Disconnect power to the appliance before starting any repairs
• Verify terminal pin type and wiring orientation before removing the old housing; take a photo for reference
• This listing is for the housing only; transfer existing terminals/pins or replace pins with exact matches as needed
