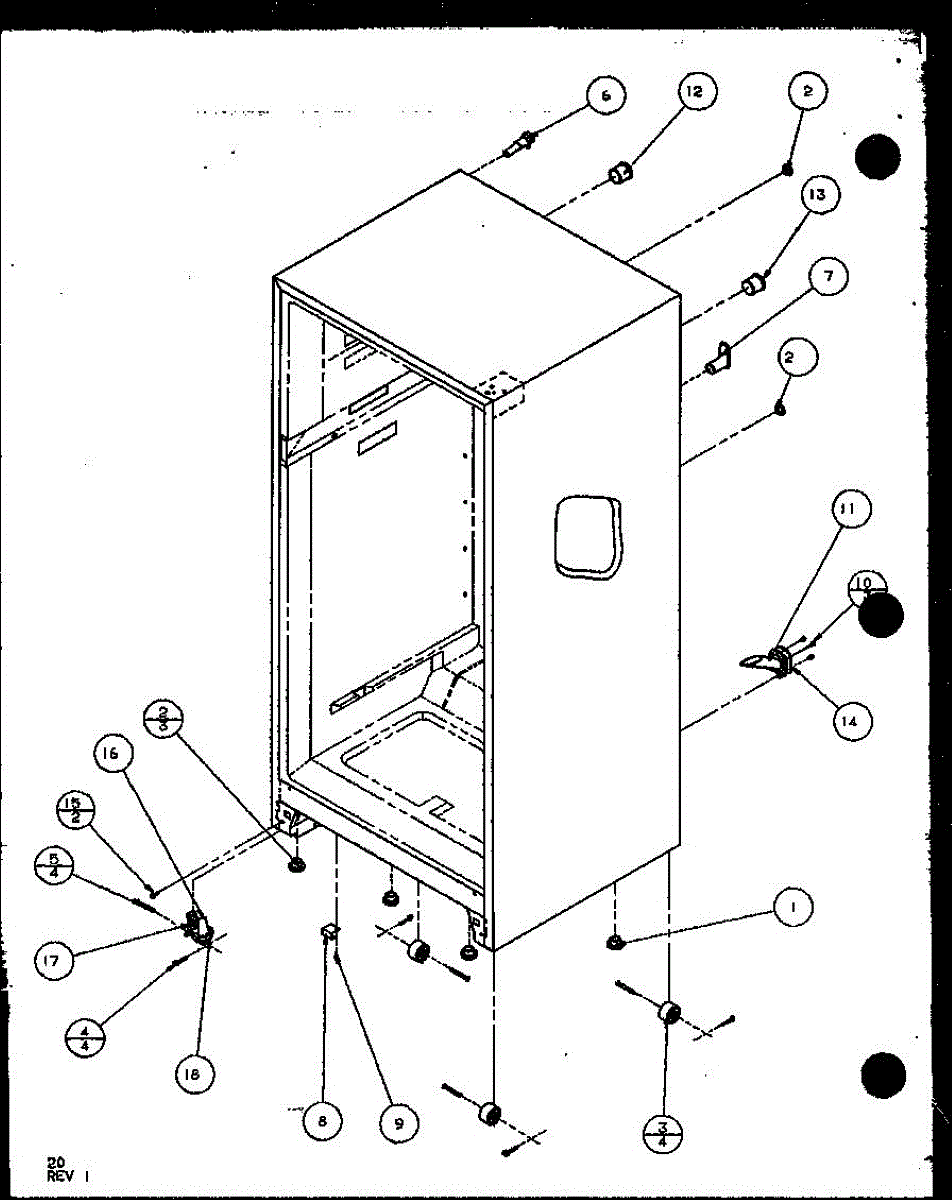

Parts for Amana TRGI18QBW / P1111314W W: 09 - Page 9 Parts

This part has been discontinued by the manufacturer and is no longer available.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This elbow drain tube redirects drain water through a tight 90° turn to the appliance drain path, restoring proper drainage and preventing leaks from cracked or damaged tubing. A direct-fit replacement for worn or broken drain elbows. What it does

• Guides wastewater from the pump or internal drain outlet into the drain hose or drain channel
• Restores a secure, leak-free connection when the original elbow is cracked, split or deformed
• Helps maintain proper flow by providing a smooth, angled transition that reduces kinking
• Commonly replaced when you see leaks, visible damage, or poor drainage

• One elbow drain tube

• Disconnect power and water before starting any repair
• Remove access panels as needed to reach the original elbow; replace with the new elbow in the same orientation
• Ensure all clamps or retaining tabs are secured to prevent leaks; test with a short water/run cycle
