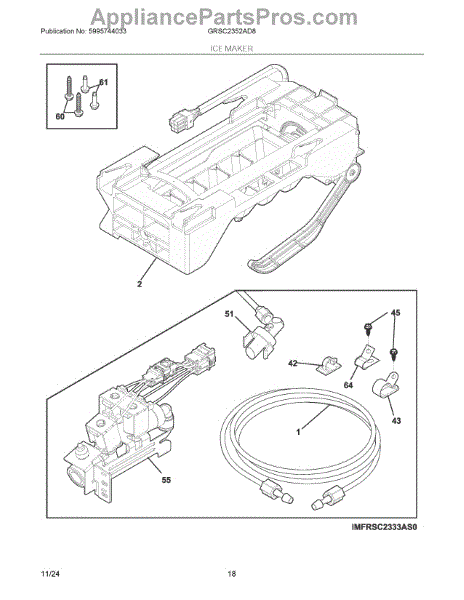

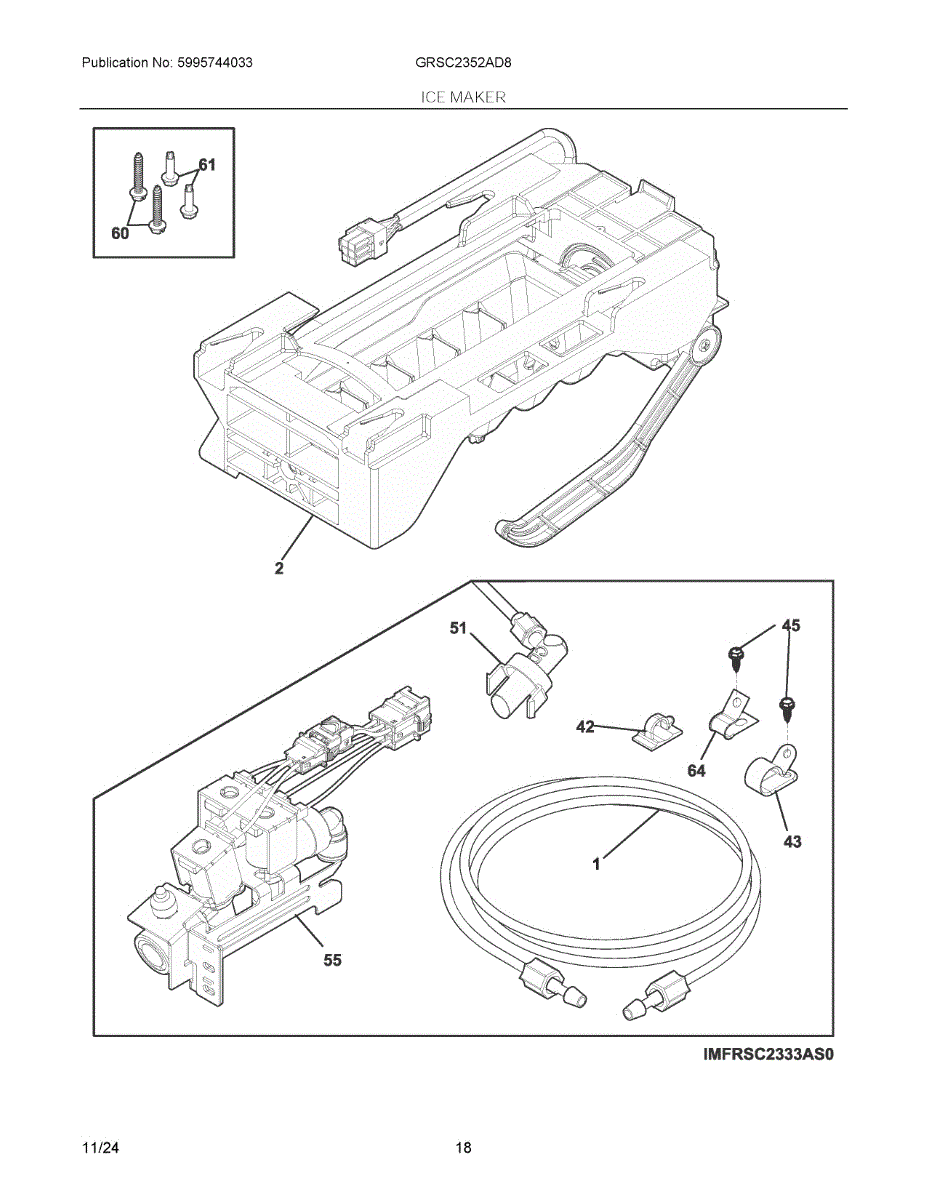

Parts for Electrolux GRSC2352AD8: 10 - Ice Maker Parts

Water tube routes water between refrigerator components like the inlet valve, filter, dispenser, and ice maker. Replace if brittle, kinked, or leaking.

Ice bin filled with solid ice block? Cracked ice tray leaking water into bin? This ice maker assembly fixes freezing issues. 15-minute DIY install.

Secures refrigerator grille or trim to cabinet, preventing rattles and gaps. Replace when broken or missing to restore proper panel alignment. Verify fit with your model number before ordering.

Water supply tube assembly for side-by-side refrigerators. Connects the water inlet to the dispenser and ice maker. Replace if cracked, leaking, or damaged.

This triple-solenoid water inlet valve controls water flow to the ice maker and water dispenser in Frigidaire and Electrolux side-by-side and French door refrigerators. If the ice maker has stopped producing ice, water is leaking from the back of the refrigerator, or the dispenser has low or no water flow, a failed water inlet valve is a common cause. The valve requires at least 20 psi of water pressure to close properly - if pressure is adequate and the valve still leaks or fails to supply water, the valve itself is likely defective and should be replaced. Disconnect water supply and unplug the refrigerator before installation. Note the positions of the color-coded water lines before removing the old valve, and confirm all push-connect fittings are fully seated with retention clips in place after installing the new one.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

Hex head screw that secures panels, brackets, and internal components in refrigerators and appliances. Replace when missing, stripped, or damaged.

Secures refrigerator hoses to fittings with spring tension to prevent leaks. Replace when clamp loses grip or shows rust. Verify fit with model number.

Secures tubes and wiring in your refrigerator. Replace if clips are broken or connections are loose. Confirm fit with your model number.

This is a wiring harness that connects the ice maker to the refrigerator's main electrical system, supplying power and control signals needed for ice production. It routes between the ice maker module and the main control board or power source. Replace this harness if the ice maker stops producing ice, works intermittently, or if the wires show signs of damage, corrosion, or loose connections.

Routes water from supply line to dispenser and icemaker. Replace if tube is cracked, leaking, kinked, or damaged to restore proper water flow.

Small retainer clip that secures components, panels, tubes, or wires in place inside your refrigerator. Replace when worn, broken, or missing to restore fit.

Connects sections of water tubing inside your refrigerator. Replace this adapter if cracked, leaking, or popping off to stop drips and water damage.

Brown water tube that connects the valve to the dispenser and ice maker in side-by-side refrigerators. Replace if cracked, leaking, or damaged.

Carries fresh water between the valve, reservoir, dispenser, and ice maker. Replace if cracked, kinked, or leaking to restore proper water flow.
