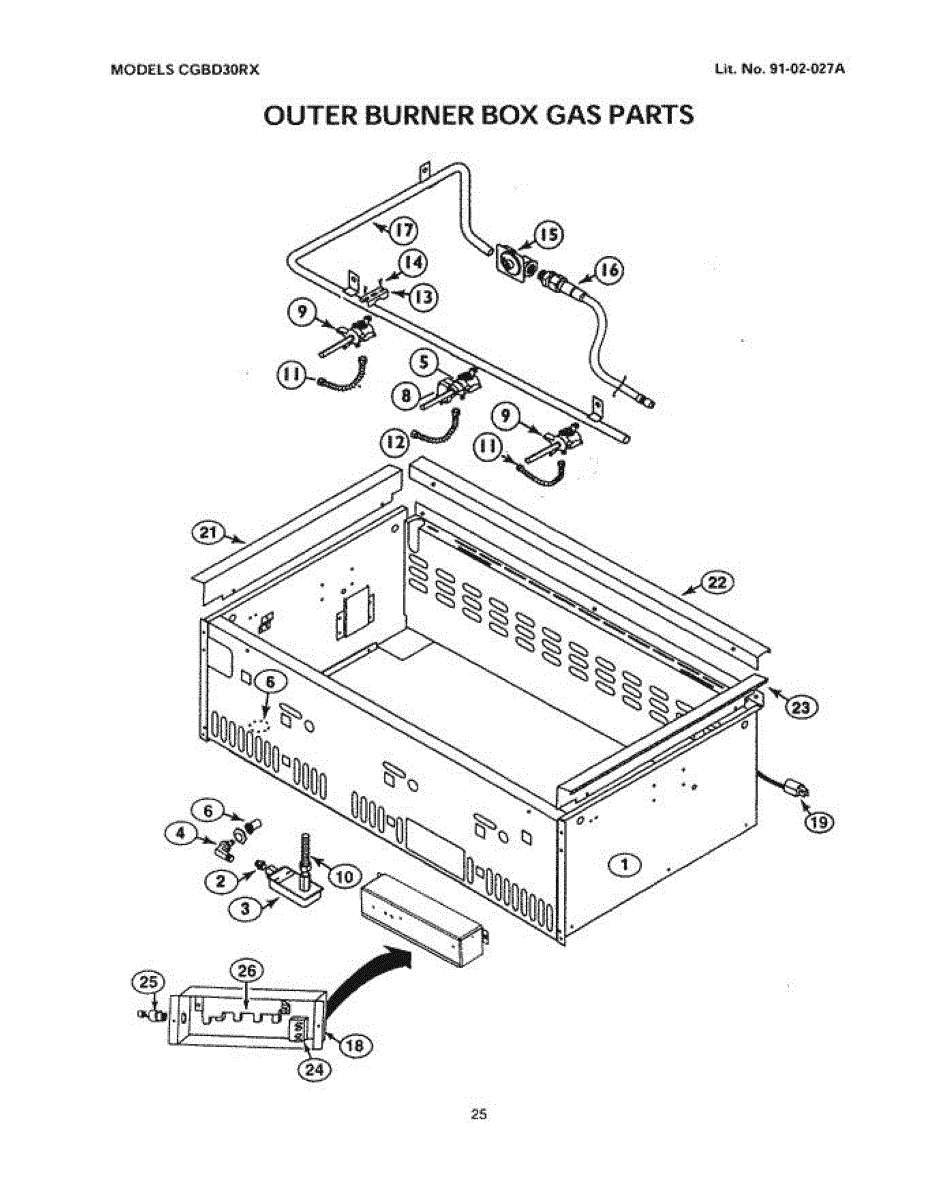

Parts for Thermador CGBD30RX: 24 - Outer Burner Box Parts

This replacement gas orifice (#54 drill) meters fuel to a burner for correct flame size and heat output. It restores proper burner performance when the jet is clogged, worn or the flame is weak or uneven. What it does:

• Precisely meters gas flow to a burner to maintain correct flame characteristics
• Helps correct weak, flickering, low or uneven flames
• Useful when a burner has restricted flow from debris or corrosion
• Compatible with applications that use a #54 drill-sized jet

• Turn off the gas supply and electrical power before servicing; follow local codes
• Use appropriate tools to remove the old orifice; avoid overtightening the replacement
• Check all connections for leaks with a gas leak detector or soapy water before use

The Spark Ignition Switch is an OEM part for Bosch ranges and cooktops. It controls the ignition of surface burner flames by emitting an electrical spark when activated.

Causes of a bad switch can be general wear and fatigue over thousands of start cycles. Exposure to moisture, dust or metal debris could also damage electrical components internally.

Symptoms of a bad spark ignition switch include:

• Burners failing to light even when valves are turned on
• Intermittent or irregular lighting of some burners
• No electrical sparks emitted from the ignition electrode

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

A 9-inch gas supply tube that routes fuel from the appliance inlet to the control valve/manifold, restoring proper gas delivery for safe, consistent burner operation when tubing is damaged or leaking. What it does:

• Channels gas to the control valve/manifold so burners can ignite and maintain a steady flame.
• Replaces bent, punctured, corroded, or leaking tubing that can interrupt fuel flow.
• Helps address common symptoms such as a gas odor near the appliance, burners that won't light, or low/uneven flames.
• OEM-style replacement designed for the corresponding Bosch gas appliance configurations.

• Shut off the gas supply and electrical power to the appliance before starting any work.
• Use correct fittings and approved thread sealant or gasketing; tighten to OEM-recommended torque if specified.
• After installation, perform a soap-and-water or approved leak test; if you detect a leak, shut off gas.

This gas pressure regulator controls and stabilizes incoming supply pressure to the appliance manifold, helping ensure consistent burner flames and reliable ignition. Replace if the original regulator is sticking or no longer maintaining correct pressure.

• Regulates incoming gas to the appliance's rated manifold pressure
• Helps maintain even flame height and proper combustion
• Supports reliable burner ignition and reduces flame-out from pressure swings
• Common symptoms include weak or uneven flames, yellow tipping, burners not lighting or not staying lit, or flames that are too high

• Disconnect electrical power and shut off the gas supply before servicing
• Observe the flow-direction arrow; install with outlet toward the appliance manifold
• Use approved gas-rated thread sealant on male threads only and leak-test all joints with a non-corrosive solution after installation
