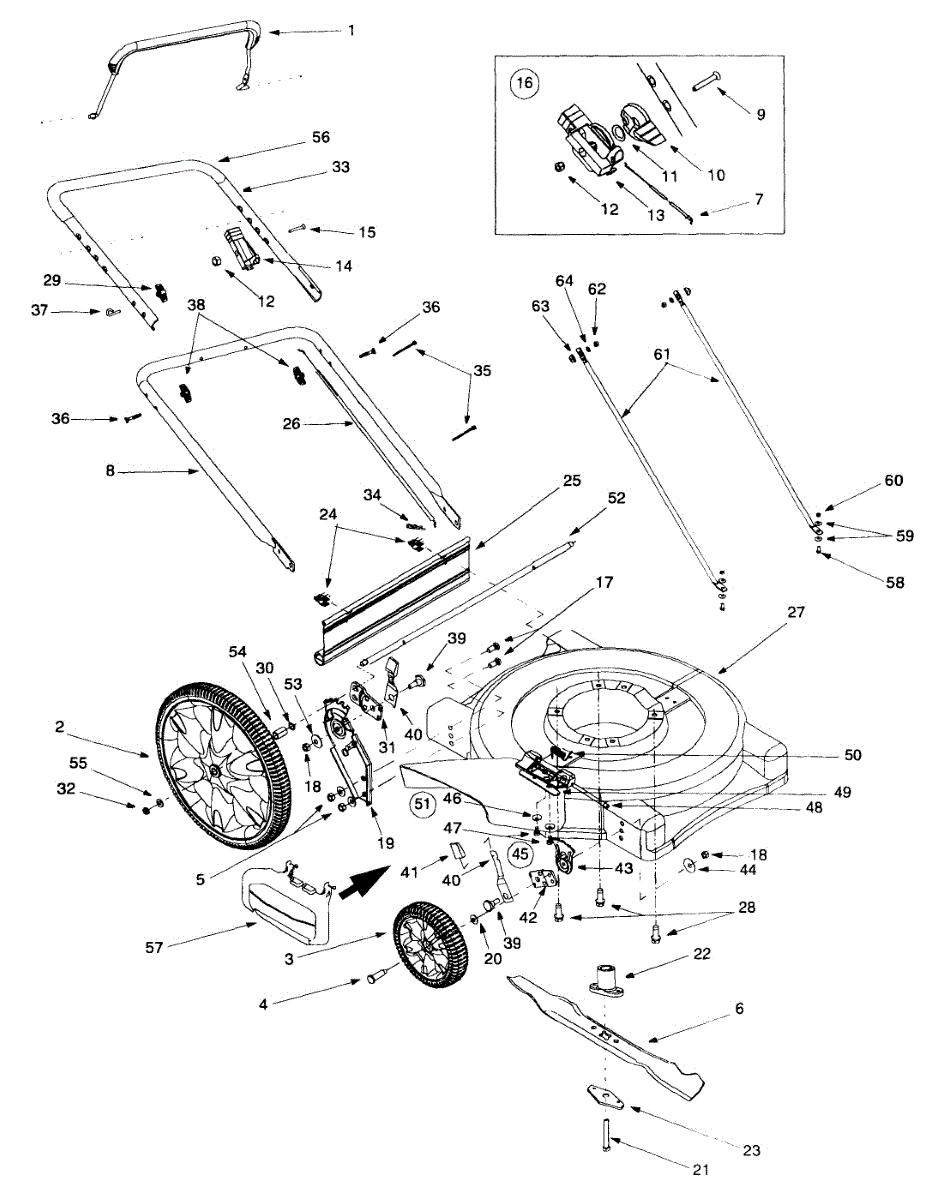

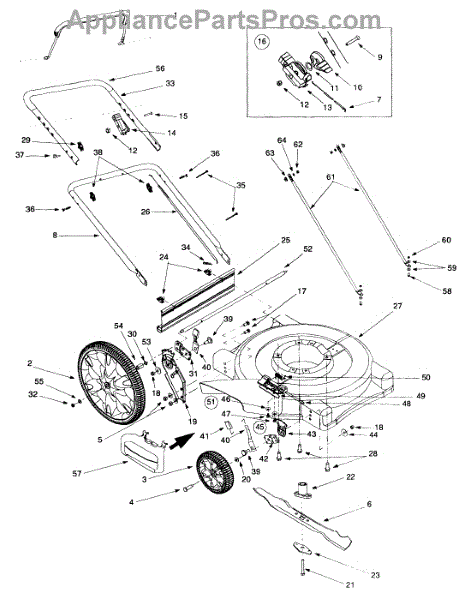

Parts for Ace 11A-509B033 / 1998: 509A&B General Assembly Parts

This genuine replacement part is a MTD wheel assembly for lawn mowers and trimmers. It replaces the rear wheels on these tools. This wheel assembly attaches to the bottom of the mower, and allows for smooth rolling, even on uneven ground. Over time, the wheels on a lawn mower or lawn tractor can wear out or become damaged. This can reduce traction or affect the alignment of the mower.Replacing the wheel is simple, but please follow these important safety precautions when working with this part: Shut off the engine of the mower. Allow the engine to become cool before installing this part. Disconnect the spark plug to prevent the mower from accidentally starting. For installation information, please refer to the original product manual. Please note: a socket wrench is required for installation of this part.This high quality OEM replacement part is sourced directly from the manufacturer, and it is sold individually. This part is compatible with a variety of Craftsman, Ryobi, and more lawn mowers and trimmers. Please note: original part numbers 1828027, 1917592, 753-04211, and GW-1917592 are now obsolete, and manufacturer has replaced the original part numbers with this part.

Replace cracked, worn, or missing wheels on your lawn mower. This complete wheel set restores smooth mobility and maneuverability for walk-behind mowers.

Replaces worn, cracked, or damaged 8-inch wheels on walk-behind lawn mowers. Restores smooth rolling and maneuverability for easier operation.

Shield mounting screw for lawn mowers and tillers. Secures protective shields and covers to the mower deck. Replace if screw is stripped, missing, or damaged.

Replacement 22-inch cutting blade for walk-behind mowers. Restores cutting performance when blade is dull, bent, cracked, or damaged from impacts.

Replace your worn or damaged 22-inch mulching blade. This lawn mower blade installs under the deck to finely cut grass clippings for mulching.

Can't control mower speed or engine won't maintain RPM? Replace the throttle cable. Easy 15-minute repair restores smooth speed control on your mower.

This is an oval c-sunk screw commonly used in mowers and snowblowers to help secure the throttle housing to the upper handle. If there is a problem with the screw, it should be replaced to ensure the proper function of the machine.The screw is made from metal and it should last a long time. However, there could be several reasons to replace the screw. It might become lost when working on other parts of the machine. The threads could be stripped, or the head of the screw could start to wear away or corrode over time. Replacement of this piece is usually fast and easy, but it can depend on the location of the screw.The oval c-sunk screw will work with models of machines from MTD, Mastercut, Husky, Western Sun, Lawn Hawk, Wizard, Servistar, and Tradesman. The screw is sold individually. It is a genuine OEM replacement part.

This is a throttle lever that is used in many types of lawn and garden equipment. It is one of the components in the throttle assembly. The purpose of the throttle lever is to stop the engine whenever the user moves the lever into the full choke position. Sometimes, wear and tear or damage can cause issues with the throttle lever. If the lever is broken, it may not be possible to move the component, and it will need to be replaced. Excessive dirt and debris can also cause issues with the throttle lever. If the throttle lever needs to be replaced, pliers and a screwdriver will be needed for the process. The first step is to remove the throttle assembly and the cable attachment on the clutch. Take the cable out of the throttle lever before removing the lever itself. The new component can be installed in the same position before reassembling the tool.This throttle lever is an authentic OEM replacement part that is sourced directly from the manufacturer. It is sold as an individual component. The lever is made for use with edgers and lawnmowers manufactured by Bolens, Cub Cadet, Huskee, MTD, and Yard Machines.

Nylon nut for lawn equipment. Secures and connects components throughout the machine. Replace if cracked, stripped, or missing for proper assembly.

This is a throttle body intended for use with lawnmowers and tractors. The throttle body is attached to the control cable, the throttle control wire, and the throttle lever. It can be damaged or wear out with regular use. Signs that the throttle body is failing or going bad include a very low idle or poor idle. Stalling of the machine when stopping the device is another indicator that the throttle body is bad. When this happens, a new throttle body must be installed.Replacing a throttle body is simple. It requires a set of pliers, a wrench, and a screwdriver. Always wear gloves when working on a throttle body repair. Make sure to allow time for the machine to cool completely before beginning the repair.This throttle bottle is an authentic OEM part. It is supplied directly from the manufacturer. The throttle body is made of high-quality, durable plastic material. It is sold as an individual unit. The throttle body is compatible with Huskee, MTD, Yard Machines, Yard-Man, and Cub Cadet brands. It can be installed in various machines, including push-behind lawn mowers, lawn tractors, and other lawn equipment."

Fix a mower that won't start or has loose throttle cable control with a new throttle housing. This plastic grip component secures the throttle cable.

Replace a lost, stripped, or corroded nut on your lawn mower, tractor, or outdoor power equipment. Secures components for safe operation.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

Hex bolt secures blade adapter and other components on lawn mowers. Replace if bolt is stripped, damaged, or missing to properly fasten parts.

Connects the cutting blade to the drive shaft on push mowers. Replace if adapter is chipped, cracked, worn, or loosened to restore secure blade mounting.

Metal blade support spacer that mounts between the mower blade and bolt. Secures the blade to the deck base. Replace if worn, damaged, or missing.

Replace your lawn mower's broken or missing hinge clip. This small metal fastener secures the handle hinge assembly, keeping your mower stable during use.

Control cable for walk-behind mowers. Connects handle controls to engine or drive system. Replace if frayed, kinked, stretched, or broken for safe operation.

This control cable is a replacement part for use with many models of walk-behind mowers. The cable connects to the mower's control bar and is used to run the engine. When the cable is released, the engine will shut off. It is an important part of the machine, and if it is broken, it will not run.The cables are durable, but they may break over time. In some cases, they might wear out and snap or break from damage. In other cases, the ends might snap and break off. The cable might fray or kink, as well. Regardless of the problem, the owner will want to replace it right away.This control cable is for use with select mower models from Yard-Man, Husky, Yard Machines, and MTD. The cable is sold individually. This is a genuine OEM replacement part that has been sourced directly from the manufacturer.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

This is a knob handle that is used on various types of lawn and garden equipment. It is responsible for helping to make adjustments to the upper handle of the lawnmower or other machine. If the knob handle no longer works, is broken, or falls off, adjustments can no longer be made to the equipment. If this situation occurs, the knob handle will need to be replaced.Take a look at the knob handle and determine if it has been damaged. It could have cracks, broken areas, or excessive scratches that make it hard or impossible to use. If the knob handle is not present, this also necessitates a replacement. The part is easy to replace and requires no tools to install. Simply remove the old handle and place the new one in the same location.This is an authentic OEM replacement knob handle that is directly sourced from the manufacturer. It is sold as an individual component. The knob handle is used on lawnmowers, snowblowers, string trimmers, leaf blowers, wood chippers, and edgers. It fits various models offered by MasterCut, Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

Wave washer helps secure fasteners and improve operation on lawn mowers and walk-behind equipment. Direct fit replacement part for push and self-propelled models.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

This is a seven-inch cable tie that is used with different types of lawn and garden equipment. It is most commonly used to secure the cable onto the handle of the lawnmower or tiller so it is secure. The cable tie is made of durable plastic but can be damaged or break. When this happens, the tie will need to be replaced to ensure the cable stays on the handle.If the cable tie needs to be replaced, no tools are needed. In the situation where other parts need to be replaced at the same time, a basic set of tools and a pair of work gloves may be required. Turn off the yard equipment and place it on a stable surface before replacing the broken cable tie. The old tie can be removed so the new one can be installed before further use.This cable tie is an authentic OEM replacement part that is directly sourced from the manufacturer. This product is sold individually. The component is designed to be compatible with lawnmowers, lawn tractors, tillers, and snowblowers manufactured by MTD, Troy-Bilt, Yard-Man, and Yard Machines.

This replacement curved hd. screw is also known as a carriage bolt. The screw can be used on many types of lawn and garden equipment. The purpose of the screw is to hold and support the upper and lower handles of the machine. It works along with the hand knob to help secure the handles, but buyers should know that the knob is sold separately. Owners might need to replace the carriage bolt if it has become corroded or no longer properly secures the handles. If the owner has lost the bolt, they will need to buy a new one before they can use their machine. The replacement for this part is fast and simple. This is an authentic OEM replacement curved hd. screw that is sold individually. It is for use with lawn mowers, tillers, snowblowers, wood chippers, edgers, and leaf blowers. It is compatible with certain models from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

Rope guide eyebolt for lawn mower recoil starters. Guides the starter rope smoothly during pull starts. Replace if bent, broken, or missing.

The Lever Knob Assembly is an OEM replacement part for MTD outdoor power equipment. The Lever Knob Assembly is responsible for adjusting the height of the mower blade on the front wheel of the mower.

Over time, the plastic or metal components can degrade due to exposure to the elements, frequent use, or accidental impacts. This can lead to the knob becoming difficult to turn, slipping out of place, or breaking entirely.

Symptoms of a bad lever knob assembly include:

• Difficulty in adjusting or controlling the lever
• The knob becoming loose or wobbly
• Visible damage such as cracks or breaks
• The lever not staying in the desired position

This MTD replacement part is also compatible with other brands and models within the MTD family, ensuring versatility and reliability for your outdoor power equipment.

This is a height adjuster knob for walk-behind lawn mowers. It attaches to the height adjuster lever. This component is used to adjust the front wheels on the lawnmower deck. This adjustment allows the user to select the desired cutting height of the grass. This component is made out of a hardened foam material that is easy to grip.If the height adjuster knob falls off of the height adjust lever and will not reattach, it is likely that it will need to be replaced. The height adjuster lever itself is sold separately. The repair person may wish to wear gloves when replacing this part.This component is sourced straight from the manufacturer. It is sold individually and is a genuine OEM part. This height adjuster knob is compatible with walk-behind lawnmowers that are manufactured by the Ryobi, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, Craftsman, and Husky brands.

Replaces cracked or broken blade height adjustment brackets on walk-behind mowers. Secures cutting deck leveling mechanism. Needed when missing or worn.

Replace worn spring bell washers causing loose parts or rattling noises. This conical washer cushions heavy loads in lawn equipment. Simple DIY fix.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

Adapter plate for lawn mowers. Mounts between components to ensure proper alignment and secure attachment. Replace if cracked, bent, or missing.

Replacement discharge chute deflector assembly for lawn mowers. Installs on the side deck to direct grass clippings. Replace if cracked or broken.

Bell washer for lawn mowers and tractors. Installs to secure components and prevent loosening. Replace if cracked, worn, or missing for proper assembly.

Hardware spacer for lawn mowers. Installs on shafts to create proper gaps between connections. Replace if cracked, damaged, or missing for correct fit.

Hex cap screw fastener for outdoor power equipment. Secures components with hexagon-shaped head. Replace if stripped, broken, or missing threads.

Replace worn spring bell washers causing loose parts or rattling noises. This conical washer cushions heavy loads in lawn equipment. Simple DIY fix.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.
