Parts for Speed Queen SDG109LF: Accumulator Parts

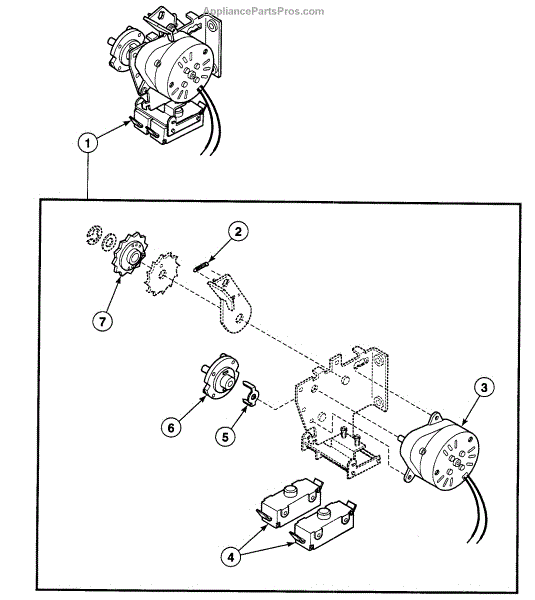

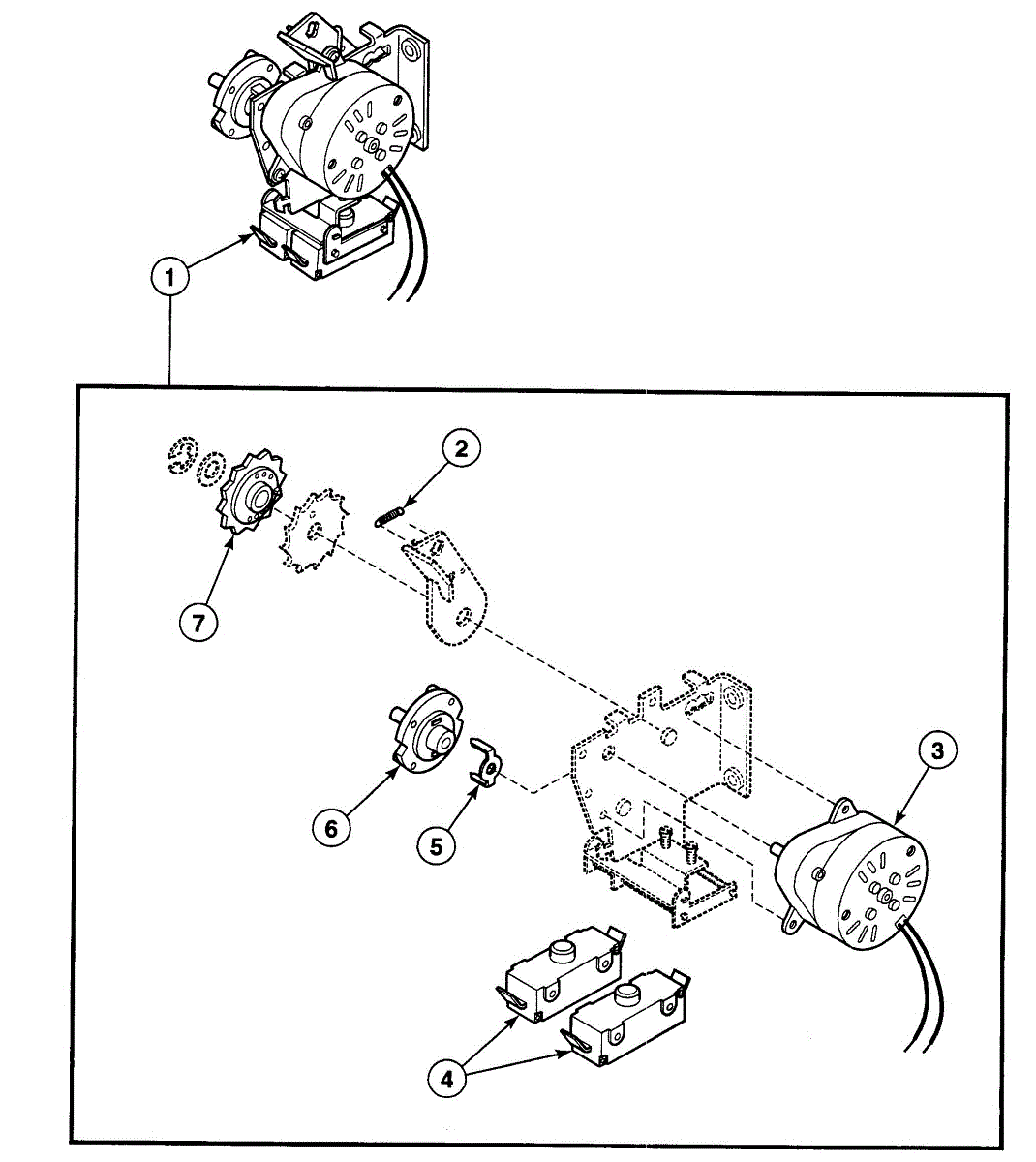

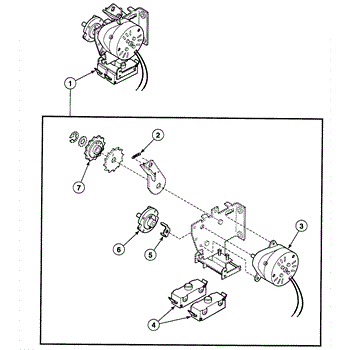

This motor timer controls the drive and cycle sequencing on compatible commercial washers, restoring timed switching between motor, clutch and timer-driven functions to keep cycles advancing reliably. What it does

• Controls timed motor operation and cycle advancement so the washer shifts through wash, rinse and spin stages.
• Re-establishes electrical switching that starts/stops the motor during cycle transitions.
• Use when the machine won't advance through cycles, won't start or stop the motor as expected, or cycles stall or repeat.
• Matches OEM function for replacing a failed or intermittent timer assembly.

• One motor timer (115V 60Hz) assembly.

• Disconnect power before inspecting or replacing electrical components.
• Note and label wiring connections or take a photo before removal to ensure correct reassembly.
• Tighten fasteners and verify secure wiring; test a single cycle after installation.
