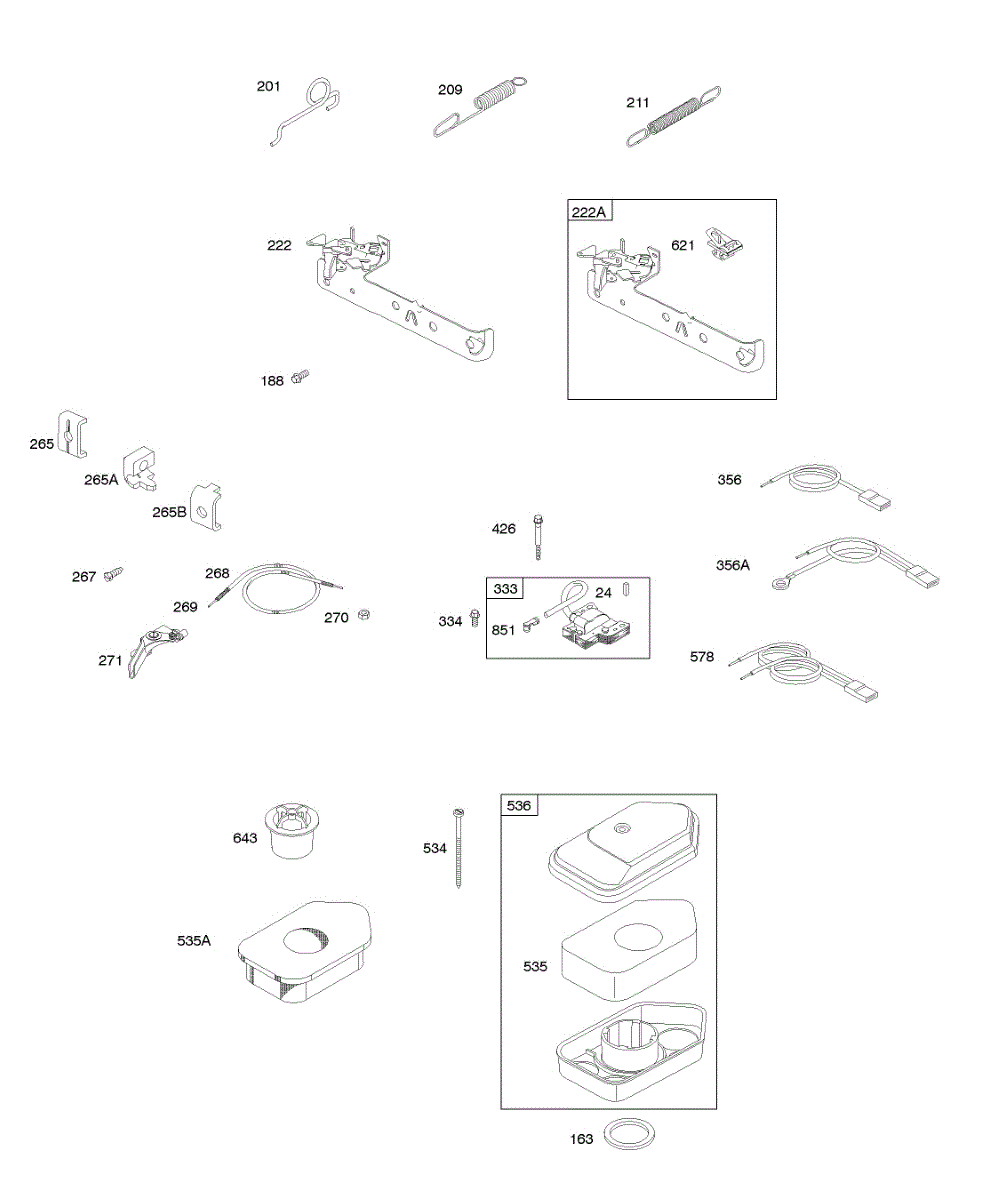

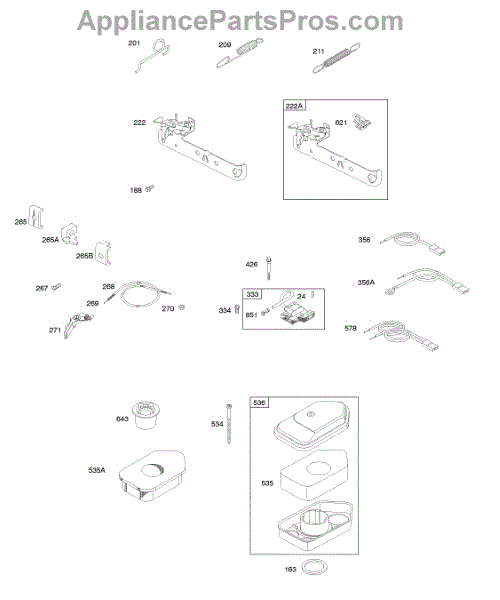

Parts for Briggs & Stratton 098902-2192-E1: Air Cleaner, Controls, Governor Spring, Ignition Parts

The flywheel key is the component on outdoor equipment that keeps the flywheel connected to the crankshaft. Over time, this key may become damaged or broken, particularly if the engine experiences a forceful stop, like hitting a large stationary object. If the flywheel key breaks, the engine will not start. A slightly damaged flywheel key is noticeable through symptoms like misfiring, backfiring, or having no power. If any of these are occurring, the flywheel key should be replaced to prevent complete engine failure.A flywheel puller tool is required for this repair. Make sure the engine is cool before working on the flywheel. Wear safety gear, including gloves and eye protection. Disconnect the spark plug and remove the blower housing. Remove the flywheel mounting nut and set it aside. Take the recoil starter cup off the mower. Use the flywheel puller to remove the flywheel and access the flywheel key. Remove the broken flywheel and replace it with the new flywheel. Reverse the steps to put the mower back together.This flywheel key is made of an aluminum alloy and is sold as an individual part. It is designed for use in lawnmowers, lawn tractors, and other small engines manufactured by Briggs and Stratton, Toro, Lawn-Boy, Simplicity, MTD, and others.

This air cleaner gasket is a genuine replacement that is designed for select models of 3-5 HP small engines from Briggs & Stratton. The air cleaner gasket is designed to fit between the air cleaner and the carburetor assembly. This helps to create a seal between the two components and ensure that air does not leak out of the engine to provide the appropriate pressure. Gaskets are exposed to a lot of heat and pressure, along with constant vibrations, which can cause them to become frail or brittle over time. Replacing them is usually considered a part of routine maintenance and OEM parts should always be used. This genuine OEM air cleaner gasket is manufactured to exact standards and can be used on select engines from Briggs & Stratton and Toro. The engines are typically found on equipment like blowers, lawn mowers, generators, and other small lawn and garden machines. This gasket is sold as a single unit and does not include additional components or hardware. To replace the gasket, be sure to have the appropriate tools and a cool engine for best results. Never perform work when the engine is hot and always wear gloves to protect the hands.

This is a general use replacement screw. It is a standard piece of hardware for securing various components on lawn and garden equipment that will have multiple locations and uses based on the equipment model. Owners should refer to diagrams for proper location and application of this part. As a securing tool, this screw can become worn over time. The threads can strip or the screw can become lost during other repairs. This is when a replacement may be needed. Because this is a general-use part, it might be a good idea to keep a few extras on hand. This genuine replacement screw is designed for use with Briggs & Stratton, Toro, and Murray lawn and garden machines, including over 150 models of generators, tractors, snowblowers, and pressure washers. The screw can be replaced with a wrench in all applications and should only take a few minutes to fix. This durable screw is made of sturdy metal and sold as a single unit. Those who need additional screws will have to order multiple quantities.

This genuine Midwest Engine governor spring can be used as a replacement part for several different kinds of outdoor appliances that require small engines, including lawnmowers, snowblowers, wood-chippers, tillers, string trimmers, leaf blowers, and edgers. The function of the governor spring is to hold the throttle of the engine at a specific speed and with the proper level of power.The governor spring can wear out over time as a result of exposure to the elements or general wear and tear from regular long-term usage, thereby rendering the governor spring unable to hold the throttle in place. If this is the case, the governor springs should be replaced as soon as possible before using the appliance again. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This governor spring is compatible with the following brands: Midwest Engine, Briggs & Stratton, and Cub Cadet. This part is sold individually.

The spring-governed idle is the spring the connects to the governor, which will allow the throttle to open and close. Opening and closing the throttle helps to control the engine's power by regulating the amount of fuel or air that goes into the engine. Over time, the spring may lose some of its tension, which means it will no longer function properly. In those cases, the spring should be replaced immediately. Additionally, if the spring is damaged in any way, it should be replaced. Typically, you will not need any tools when replacing the spring-governed idle. This is a genuine OEM part from the manufacturer, and it is sold individually. The spring will work on a range of machines, including lawnmowers, pressure washers, edgers, and other small engines. It can replace the spring-governed idles found on Briggs & Stratton Machines, as well as Cub Cadet.

This is a screw that is used in many types of lawn and garden equipment, including lawnmowers and wood chippers. It comes with a black finish and is made of durable metal. The screw can be used in many locations on a tool to attach two components together. Screws can also be used in tandem with nuts, but the two components should have the same threading and finish.Screws can become damaged, break, or be stripped and will need to be replaced. Corrosion, extreme temperatures, and unexpected stress can all lead to issues with a screw. A visual inspection can indicate whether the screw should be replaced. If it does need replacement, a screwdriver can be used to remove the original screw. The new component can be placed and tightened.This screw is a genuine OEM replacement part that is sourced directly from the manufacturer. It is sold as a single component. The screw can be used with many types of lawn and garden equipment, including lawnmowers, tillers, pressure washers, leaf blowers, edgers, generators, wood chippers, and snowblowers manufactured by Briggs & Stratton, Cub Cadet, Craftsman, Murray, Wheel Horse, Lawn-Boy, MTD, MasterCut, Simplicity, and Toro.

The stop wire is a safety cable device offered on many types of lawn and garden equipment. It is pressed near the upper handle of a device to start it, which lets the blades spin and creates forward motion on equipment that is self-propelled. A stop wire can stretch out over time and will need to be replaced to ensure total safety. If the blade brake control is released and the blades continue to spin for more than a couple of seconds, the wire needs to be replaced.Take the equipment and put it on a flat surface before taking the metal on the stop cable and moving it out of the mower handle. Squeeze the center tabs of the wire with needle-nose pliers and pull the cable end through the bracket. Pull the other end out and then replace it with a new component.This is an authentic OEM replacement part for use with garden equipment engines. It is an individual part that is sourced directly from the manufacturer. This part is compatible with lawnmowers, wood chippers, snowblowers, generators, log splitters, tillers leaf blowers, and pressure washers by Briggs & Stratton, MasterCut, Craftsman, Simplicity, Toro, MTD, Cub Cadet, Lawn-Boy, Murray, and Wheel Horse.

This is an air cleaner foam filter that is used in several lawn mowers by major manufacturers. The air cleaner filter is responsible for catching dirt, dust, and debris before it can enter into the tool's engine. The air filter can become damaged or dirty and will need to be replaced on a regular basis. If the air cleaner foam filter is not working the way it should, the engine may not turn on or could run poorly. If the filter lets dirt pass through to the motor, the engine could be damaged.The air cleaner foam filter should be visually inspected regularly to determine whether it is damaged or overly dirty. It should also be replaced at least once a year. If the lawnmower is used frequently, a replacement may be needed more often. Take off the lid over the filter before removing it. Insert the new part and replace the lid before using the mower.This air cleaner foam filter is an authentic OEM replacement part directly sourced from the manufacturer. It is sold as an individual component. The foam filter is compatible with lawn mowers manufactured by Toro and Briggs & Stratton.

This is an air filter that fits a variety of small gasoline-powered engines. These engines, which are primarily used as lawn tools, are often exposed to a great amount of lawn dust, dirt, and fine debris. This type of debris can clog the air intake quickly if it is not filtered out. This item is a foam filter, designed specifically to prevent yard waste from clogging the small engine's airflow. Periodically, even the best air filters are subject to so much particulate that they become unusable and need to be replaced. If a small yard tool engine will not start or if it “cycles” fast and slow, detach the air filter housing and start the motor to see if the engine runs properly. If it does start and run, do not use the equipment without a proper air filter. Replacing the air filter is a matter of making certain the engine manifold has cooled, then removing the muffler and air filter housing. The old filter is easily removed and discarded. Reverse the steps to reinstall the air filter. This replacement filter is a genuine OEM manufactured part, guaranteed to meet the same standards as the original part. This filter fits 150 different yard tools that use Briggs & Stratton gasoline engines.

The stop switch, sometimes called a kill switch, is triggered to stop the engine when the operator is no longer on the seat ,This is important for safety. If the stop switch is not functioning properly, inspect it for damage and replace it right away. Operating a machine without a functional stop switch can be dangerous. The stop switch is a genuine OEM part, and it is sold individually. The switch can work for many types of equipment including lawn tractors, lawnmowers, log splitters, wood chippers, pressure washers, and tillers. The replacement part is compatible with a range of brands, including Midwest Engine, Toro, Craftsman, Briggs & Stratton, Lawn-Boy, Murray, Snapper, and MTD.

This genuine OEM replacement part is a spark plug terminal for a wide variety of small combustion engines. In a combustion engine, the spark plug generates a small electrical charge that creates enough power to start up the ignition and engage combustion. The plug connects to the ignition through the terminal. Spark plugs generate and then pass a small electrical current through to the ignition. Usually, the main issue with spark plugs is that this current hyper-extends and ends up frying the spark plug. However, if the terminal is damaged, the charge will not pass into the ignitor, and the engine will not turn. If the spark plug can carry a charge but the engine still won't turn, it's likely the terminal that needs replacing. This is an easy repair because the terminal should just snap on and off. If stuck, a pair of needle-nose pliers should make it easier. This high-quality replacement part is compatible with engines from Murray, Toro, Lawn Boy, and Briggs & Stratton. It is sourced from the original manufacturer and ships individually.
