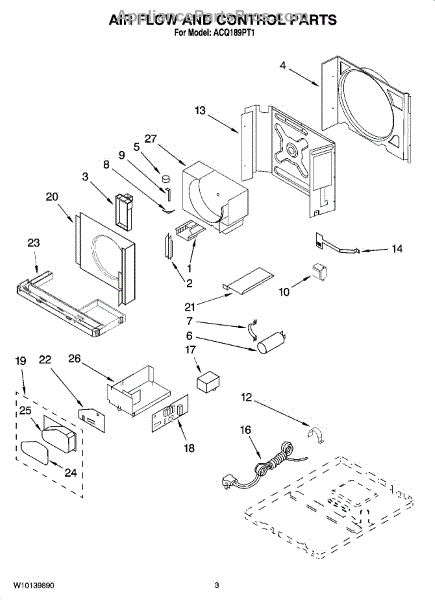

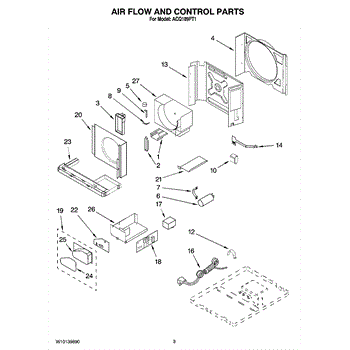

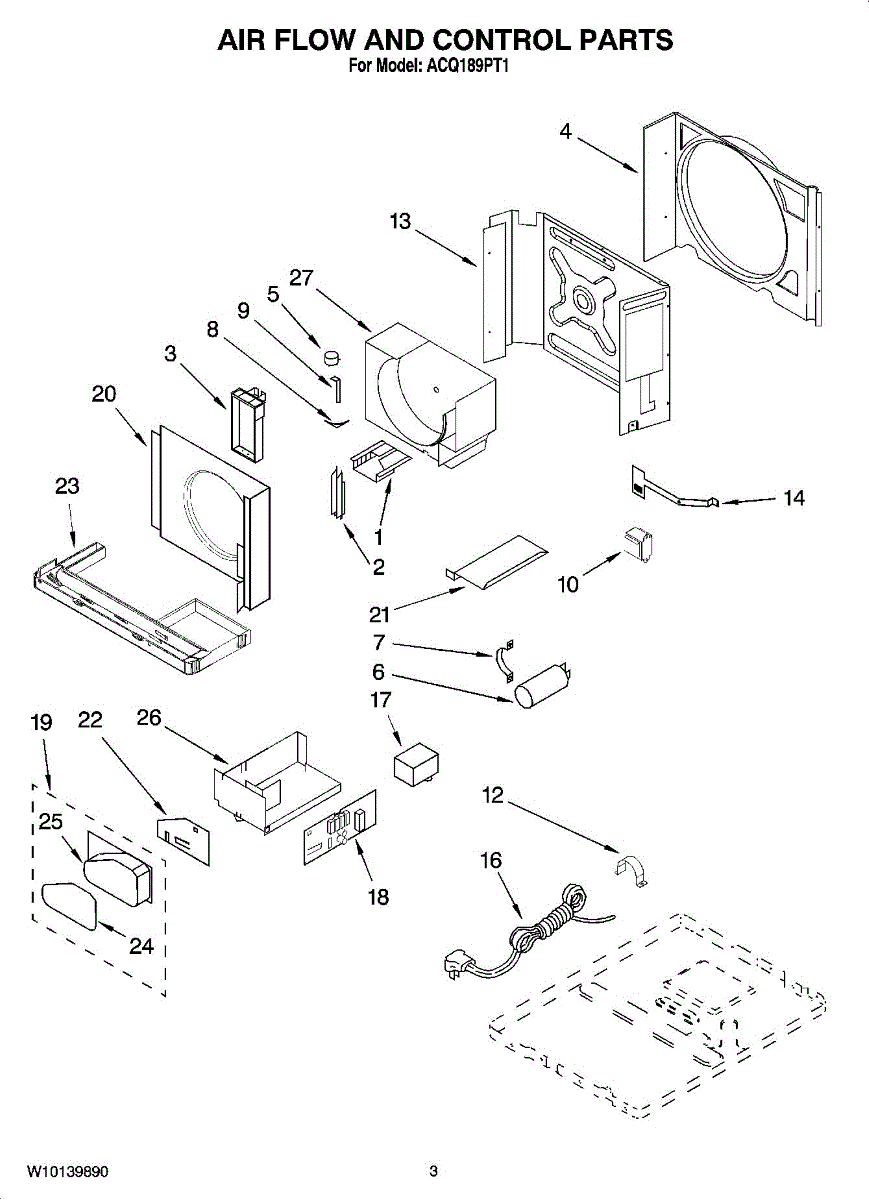

Parts for Whirlpool ACQ189PT1: 02 - Air Flow And Control Parts

This electronic control board replaces the appliance's main console brain to restore normal electronic operation and control of cycles, displays and user inputs. It helps return responsive controls and correct cycle behavior. What it does:

• Controls cycle selection, timing and sequence for the appliance
• Interprets user button presses and manages display indicators
• Communicates with sensors and other modules to regulate operation
• Can resolve symptoms such as unresponsive controls, incorrect cycles, blank or erratic displays, and certain control-related error codes

• Disconnect power to the appliance before attempting any work to avoid shock or damage
• Handle the board by the edges and avoid static discharge; use an anti-static wrist strap if possible
• Verify connector orientation and seating; do not force connectors
• After installation, restore power and run a basic cycle or diagnostics to confirm correct operation

This control panel overlay is the printed decal that covers the appliance's front console, restoring worn or faded labels for clear button and function identification. It helps make controls readable and improves the appearance of the console. What it does:

• Replaces a damaged, faded, or scratched control panel decal so labels and icons are legible
• Protects underlying electronics from light surface wear and spills
• Restores factory markings for correct button and selector identification
• Helps eliminate user confusion caused by worn text or symbols

• High-level replacement; peel off the old decal and align the new overlay carefully to avoid trapped air or misalignment
• Use a clean, dry surface and follow any adhesive curing guidance from the appliance manual
• Disconnect power or unplug the appliance before starting work to prevent electrical hazards
• If adhesive or backing panels must be removed to access the overlay, keep track of screws and small parts
