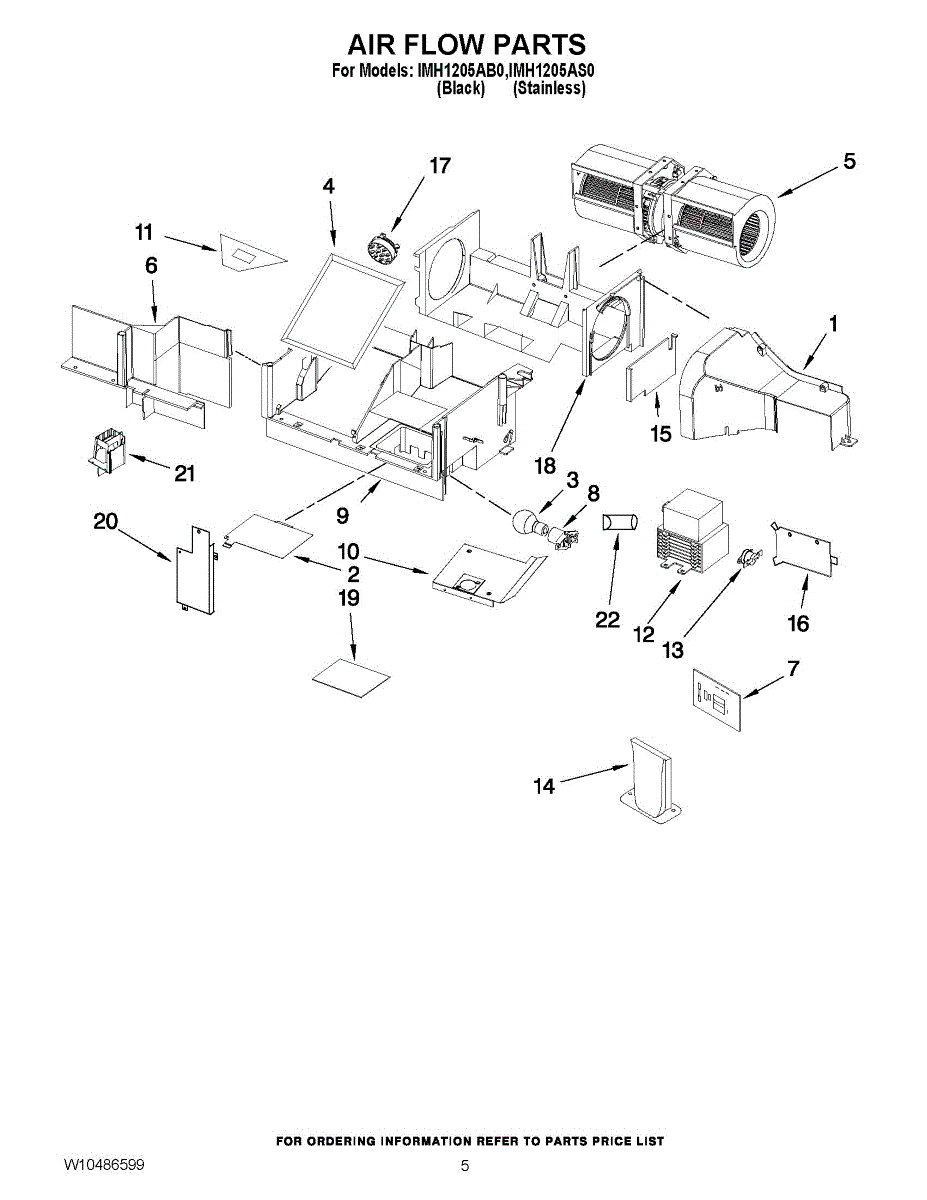

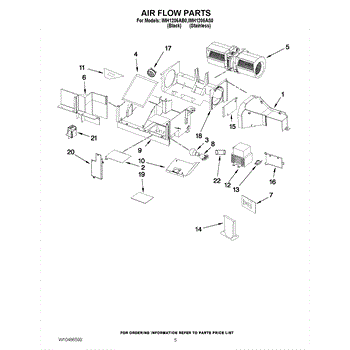

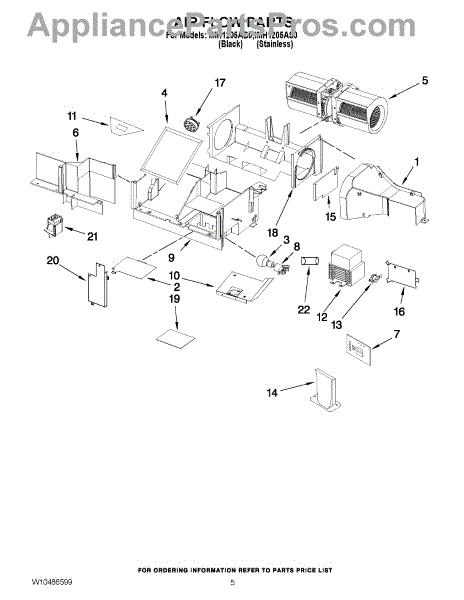

Parts for Whirlpool IMH1205AB0: 04 - Air Flow Parts

This lamp cover is the replacement lens that protects and diffuses your oven's interior light, restoring even illumination while keeping the bulb shielded from heat and food residue. It helps maintain safe, usable oven lighting. What it does:

• Protects the oven light bulb from splashes, crumbs and direct contact.
• Diffuses the bulb for more even interior illumination.
• Replaces a cracked, cloudy, melted or missing lens that can cause dim or exposed lighting.
• Fits over the lamp housing to restore the oven's normal light appearance and function.

• Disconnect power to the appliance before starting and allow the oven to cool completely.
• Handle the cover carefully—wear gloves to protect from sharp edges or broken glass.
• Remove any retaining screws or clips, swap the old cover for the new one, then secure the retainer.
• After installation, restore power and replace the bulb if issues persist.

The 40W Light Bulb is an OEM replacement part for Whirlpool microwave ovens. It is a standard-size bulb designed to provide illumination inside the microwave cavity, allowing you to easily view and monitor the cooking or reheating process.

Symptoms of a faulty microwave light bulb include:

• Dimming or flickering light during operation
• Complete bulb failure or no illumination within the cavity
• Discoloration or physical damage to the bulb itself

Causes of a bad microwave light bulb can include normal wear and tear over time, electrical surges or voltage fluctuations, or physical impact or vibration during use.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave oven models.

This Charcoal Filter is an OEM replacement part for Whirlpool microwaves. The charcoal filter is responsible for improving the air quality in the kitchen by removing impurities and odors from the air. It is used to remove smoke, grease, and cooking odors as it is drawn up through the vent fan. By trapping these particles, the filter helps maintain cleaner air in the kitchen and prevents odors from recirculating and affecting the taste and smell of your food.

Causes of a bad Charcoal Filter include saturation from absorbing smoke and odors over time, accumulation of grease and particles that clog the filter, leading to decreased effectiveness, and physical damage that compromises its ability to filter air properly.

Symptoms of a bad Charcoal Filter include:

• Persistent odors in the kitchen after cooking.
• Smoke not being effectively vented out during microwave use.
• Reduced airflow from the microwave's venting system.

Replacing the charcoal filter at regular intervals or when these symptoms are noticed ensures that your microwave continues to operate efficiently and keeps your kitchen air clean. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Description- Color: metallic. Measures about 5 inches wide by 5 inches deep.

This refrigerator water filter cartridge replaces the installed filter to help restore clear, better-tasting water and improve ice quality. It's a direct-fit replacement designed for compatible Whirlpool refrigeration systems. What it does:

• Filters water to reduce common impurities that can affect taste and clarity
• Helps improve the quality of ice produced by the refrigerator
• Can resolve symptoms like cloudy water, off-taste, or reduced water flow from the dispenser
• Restores proper filtration performance when the original filter is expired or clogged

• Follow the refrigerator manufacturer's instructions for removal and installation.
• Run and discard the recommended amount of water after installation to flush the system before use.
• Turn off the water supply and disconnect power if required by your model before servicing.
• Inspect the new filter for damage; do not use a damaged filter.

This Light Housing secures and protects the interior lamp assembly, helping keep the compartment safely illuminated. Replace a cracked or heat-damaged housing to restore a stable bulb fit and consistent lighting performance. What it does:

• Provides a stable mount for the interior light bulb/socket
• Shields nearby wiring and components around the lamp area
• Helps position the light for proper illumination inside the compartment
• Common signs of wear: cracked or melted housing, loose bulb fit, lens/cover won't stay attached, intermittent lighting from a poor physical connection

• 1 light housing

• Disconnect power to the appliance before servicing
• Remove the lens/cover and bulb, then unfasten the damaged housing
• Transfer the existing socket, wiring, and any hardware from the old housing as needed
• Reinstall the housing, replace bulb/cover, restore power, and test the light

The Magnetron is an OEM part for Whirlpool microwaves. This part generates the microwave energy necessary for cooking and heating food.

Causes of a bad Magnetron can include normal wear and tear over time, power surges or electrical issues, or physical damage from impact or mishandling.

Symptoms of a bad Magnetron include:

• The microwave not heating or cooking food properly
• Arcing or sparking inside the microwave cavity
• Strange noises or buzzing sounds during operation
• Burning smells or smoke coming from the microwave

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement mounting plate secures internal components so the appliance operates quietly and stays aligned. Replacing a damaged or bent plate helps stop rattling, prevent part movement, and restore proper fit between adjoining parts. What it does:

• Provides a stable mounting surface for nearby components and fasteners
• Prevents parts from shifting or vibrating during operation
• Helps eliminate rattling or noise caused by a loose or bent plate
• Restores correct alignment where the original plate was damaged or deformed

• One replacement plate

• Disconnect power (unplug appliance or turn off circuit) before starting any repair
• Wear gloves and eye protection; edges may be sharp
• Use correct fasteners and torque to avoid bending the new plate;
