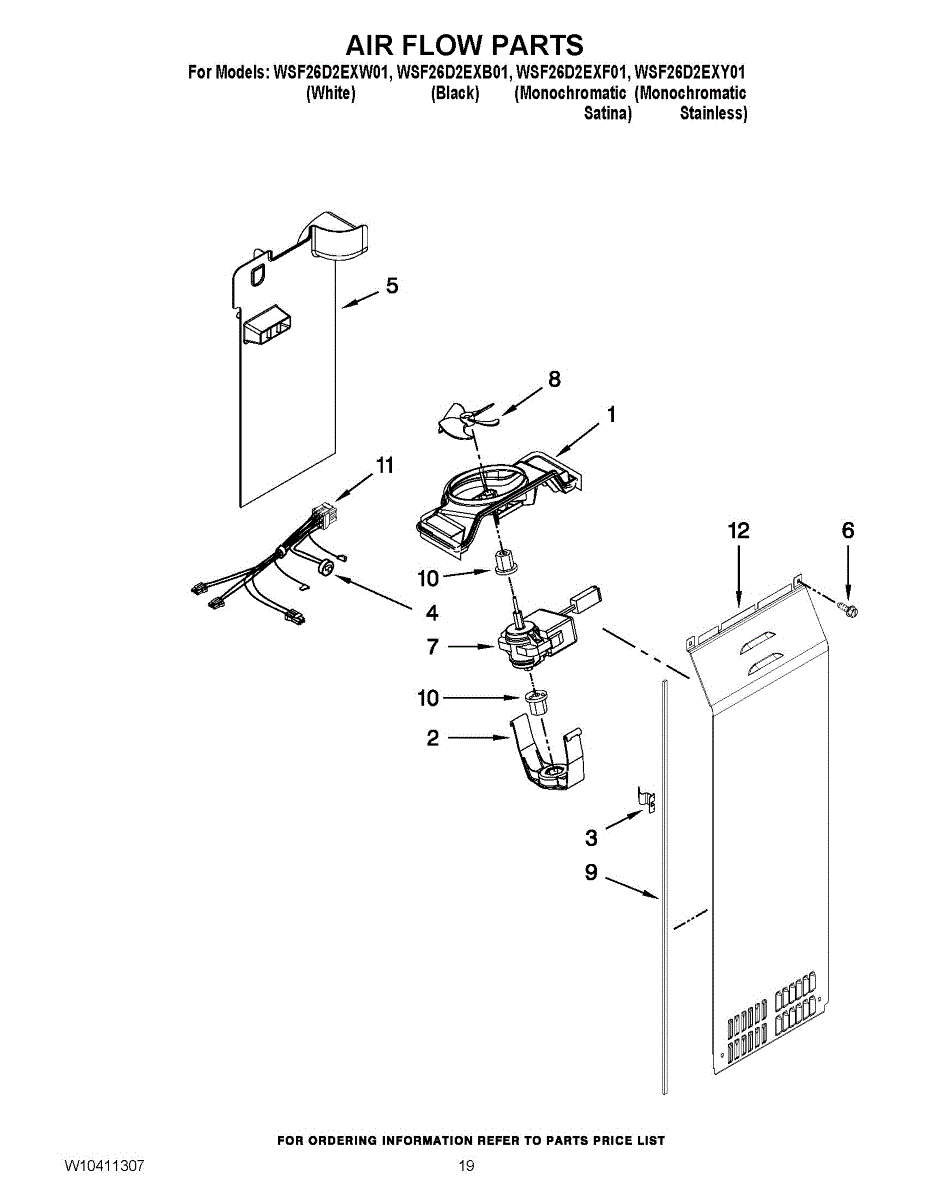

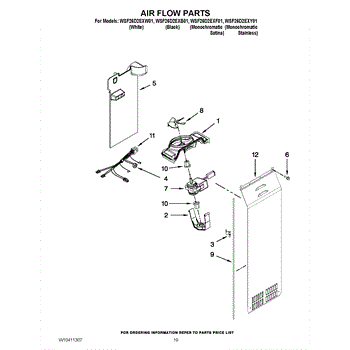

Parts for Whirlpool WSF26D2EXW01: 11 - Air Flow Parts

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

This retainer secures the dryer fan motor to its housing so the blower assembly stays aligned and runs quietly. Replacing a worn retainer restores proper motor mounting and reduces vibration or rubbing noise. What it does:

• Holds the fan motor in place to maintain correct blower alignment
• Prevents the motor or fan from shifting, which can cause noise or rubbing
• Helps avoid airflow loss that can lead to poor drying performance
• Reduces vibration that can stress mounts and fasteners

• One fan motor retainer

• Disconnect power before starting any repair to avoid shock or injury
• Basic hand tools are usually required; retain original fasteners unless replacements are provided
• Inspect surrounding mounts and the blower wheel for damage while accessing the motor

This small retainer clip secures components in place to prevent shifting, vibration, or wire movement during appliance operation. Replacing a fatigued or missing clip restores a firm hold and helps eliminate rattles or intermittent connections.

• Holds parts, panels, or wiring securely to their mounting points
• Helps reduce vibration, noise, and wear from loose components
• Common fix when a panel, trim, or harness won't stay attached
• Symptoms can include rattling, loose wiring, or parts popping free

• Unplug the appliance before servicing; shut off water or gas if applicable
• Note original clip orientation and location before removal
• Use needle-nose pliers if needed to compress/position the clip
• Do not overtension; seat fully without deforming mating parts

The Defrost Thermostat is an OEM part for Whirlpool refrigerators. It is responsible for monitoring the temperature of the evaporator coils. When the coils reach a certain temperature, the thermostat signals the defrost heater to turn on and melt any ice or frost buildup. This ensures proper airflow and prevents excessive ice formation.

Causes of a bad defrost thermostat can be attributed to normal wear and tear over time or electrical malfunctions.

Symptoms of a bad defrost thermostat include:

• Excessive ice buildup in the freezer section.
• Inadequate cooling in the refrigerator compartment.
• Frost or ice accumulating on the evaporator coils.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

The Evaporator Fan Motor is an OEM replacement part for Whirlpool refrigerators. Located inside the refrigerator compartment, it powers the evaporator fan, which circulates air across the cooling coils. This is the motor only. For the blade order part number WP2169142.

Symptoms of a bad evaporator fan motor include:

• No air movement detected coming from vents inside the refrigerator
• Warmer internal temperatures due to inadequate air circulation
• Strange grinding or knocking noises emanating from the rear wall

Causes of failure can be normal wear over time, accumulation of dust obstructing fan blades, or damage to motor windings from moisture penetration.

This OEM part is also compatible with KitchenAid, Jenn-Air, Admiral, and Kenmore refrigerator models.

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Fan Motor Grommet is an OEM part for Whirlpool refrigerators. It is designed to provide a secure and vibration-free mounting for the evaporator fan motor, ensuring proper operation and reducing noise.

Causes of a faulty evaporator fan motor grommet can include wear and tear over time, damage from excessive vibrations or impact, or deterioration due to temperature changes.

Symptoms of a bad evaporator fan motor grommet may include:

• Excessive noise or rattling coming from the refrigerator
• Poor cooling performance or uneven temperatures inside the refrigerator
• Fan motor instability or misalignment

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement wire harness that restores the electrical connections between the appliance control and internal components so controls and motors receive power and signals reliably. Use this harness to repair broken, damaged, or corroded wiring. What it does:

• Connects control board, switches, motors and sensors so the appliance operates correctly
• Replaces frayed or damaged wiring that can cause intermittent operation or loss of function
• Helps eliminate faults caused by broken connector ends or open circuits
• Resolve symptoms like no power to components, intermittent operation, or control communication errors

• One complete wire harness assembly

• Disconnect power before starting any repair to avoid electric shock
• Match connector shapes and colors; route harness along original clips and channels to prevent pinching
• Inspect mating connectors and terminals; replace if corroded or damaged
