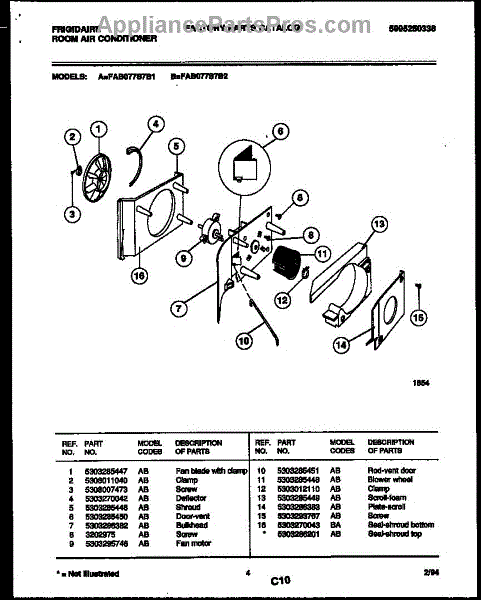

Parts for Frigidaire FAB077S7B2: 03 - Air Handling Parts

This is a Phillips pan head machine screw commonly used to secure panels and components in appliances. It provides a reliable, low-profile head for flush fastening and easy Phillips-driver installation. What it does:

• Fastens trim, panels, or internal components where a pan head screw is required
• Designed for secure grip in metal or threaded inserts compatible with #10-16 threads
• Helps prevent loosening from vibration when installed to correct torque
• Often used in refrigeration and major appliance assemblies in limited quantities

• One Phillips pan head screw (#10-16 x 5/8")

• Use the correct #2 Phillips driver and steady pressure to avoid cam-out or stripping
• Do not overtighten; stop when snug to avoid damaging threads or mating parts
• Replace only with an identical thread size and head style to ensure fit
• Wear safety glasses when working around sharp sheet metal and springs

A small foam insulation pad designed to cushion and insulate the compressor scroll assembly, helping reduce vibration and noise while keeping the compressor secured. Fits the OEM compressor mounting area to maintain quiet operation. What it does:

• Cushions the compressor scroll to reduce vibration and rattling during operation
• Provides insulation to help isolate compressor noise from the cabinet
• Helps maintain correct compressor positioning to prevent abrasion or wear
• Commonly replaced when foam is torn, compressed, or missing and causing extra noise

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove access panels and support the compressor per OEM guidance before replacing padding
• Seat foam fully around the compressor scroll area; do not compress excessively
• Replace with identical part number to ensure proper fit and function

A small metal mounting screw used to secure appliance panels and internal components. Simple replacement that restores proper fit and reduces rattling or loose parts when the original fastener is missing or damaged. What it does

• Secures panels, brackets, or trim pieces to the appliance chassis
• Holds internal components in place to maintain alignment and function
• Helps prevent vibration noise and movement from loose parts
• Suitable where the OEM listed screw size and thread match the original

• Disconnect power and water before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Keep any removed screws organized to ensure correct reassembly
