Parts for Whirlpool ATE09: 03 - Airflow And Control Patrs, Optional Parts (Not Included) Parts

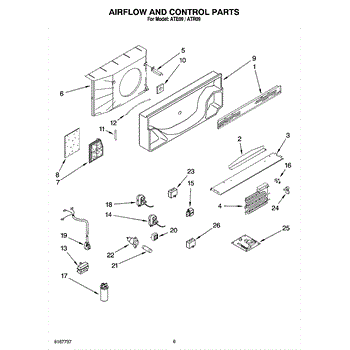

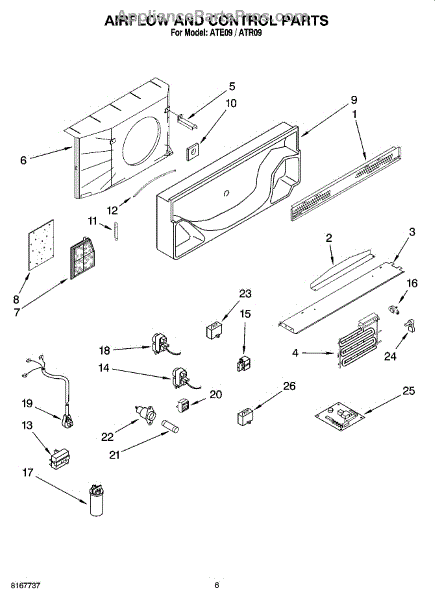

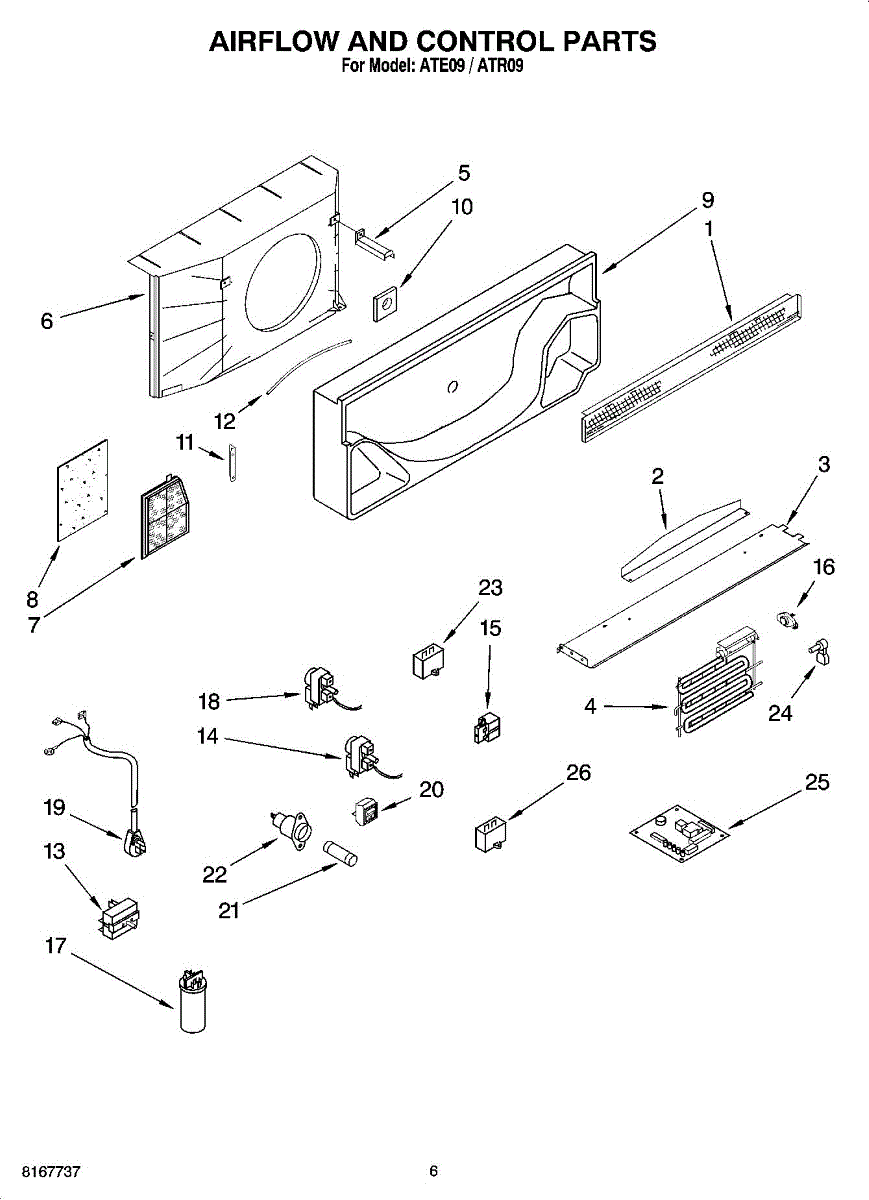

03 - Airflow And Control Patrs, Optional Parts (Not Included)
Air Conditioners Packaged Terminal

Parts for Whirlpool ATE09: 03 - Airflow And Control Patrs, Optional Parts (Not Included) Parts

Location on Diagram
Part Description
Price & Availability
1

Discharge Screen

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2

Air Baffle

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3

Heater Cover

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4

Heater

By: Whirlpool

5.0KW, 265 VOLT

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4

Heater

By: Whirlpool

3.4KW, 230 VOLT

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4

Heater

By: Whirlpool

2.5KW, 230 VOLT

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4

Heater

By: Whirlpool

3.4KW, 265 VOLT

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4

Heater

By: Whirlpool

5.0KW, 230 VOLT

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4

Heater

By: Whirlpool

2.5KW, 265 VOLT

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5

Support Brace

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6

Condenser Shroud

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7

Fresh Air Door

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

8

Fresh Air Door Insulation

By: Whirlpool

More
$7.95
Compare At:
$8.46
You Save:
$0.51

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
9

Scroll

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

10

Motor Seal

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11

Fresh Air Door Latch

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

12

Fresh Air Cable

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13

Rotary Switch

By: Whirlpool

Cooling only

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13
Product photo

Rotary Switch

By: Whirlpool

Heating and cooling

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

14

Thermostat

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15

Hot Start Relay

By: Whirlpool

265 Volt

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15

Hot Start Relay

By: Whirlpool

230 Volt

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15

Hot Start Relay

By: Whirlpool

24 Volt

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

16

Hot Start Sensor

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

17

Capacitor

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

17
Product photo

Capacitor

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

18

Defrost Thermostat

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

19

Power Cord

By: Whirlpool

30 Amp, 5.0Kw-230V

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

19

Power Cord

By: Whirlpool

20 Amp, 3.4Kw-230V

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

19

Power Cord

By: Whirlpool

15 Amp, 2.5Kw-230V

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

20

Switch-Rkr

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

21

Time Delay Fuse

By: Whirlpool

20 Amp, 3.4Kw

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

21

Time Delay Fuse

By: Whirlpool

15 Amp, 2.5Kw

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

21

Time Delay Fuse

By: Whirlpool

20 AMP, 3.4KW

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

22

Fuse Holder

By: Whirlpool

15 Amp, 2.5Kw

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

22

Socket

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

22

Fuse Holder

By: Whirlpool

30 Amp, 5.0Kw

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

23

Relay

By: Whirlpool

Remote for heat pump units

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

24

Limit Switch

By: Whirlpool

One shot

More
$120.27
Compare At:
$141.91
You Save:
$21.64

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
24

Limit Switch

By: Whirlpool

Resettable

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

25

Terminal Board

By: Whirlpool

Low voltage for remote control units

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

26

Transformer

By: Whirlpool

265 Volt

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

26

Transformer

By: Whirlpool

230 Volt

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Transformer (Overpack, Canadian Chassis)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Transformer (Overpack, Canadian Sleeve)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Transformer (Label, Single Outlet)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Box

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Label

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Label

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Box

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Box

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Label

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Box

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Label

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Box

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Label

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Wire-Elect

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Label

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Wire-Elect

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Box

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Label

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Label

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Box

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Label

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Box

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Box

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Label

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Box

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Transformer (Overpack, Canadian Chassis)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Transformer (Overpack, Canadian Sleeve)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

Transformer (Label, Single Outlet)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
