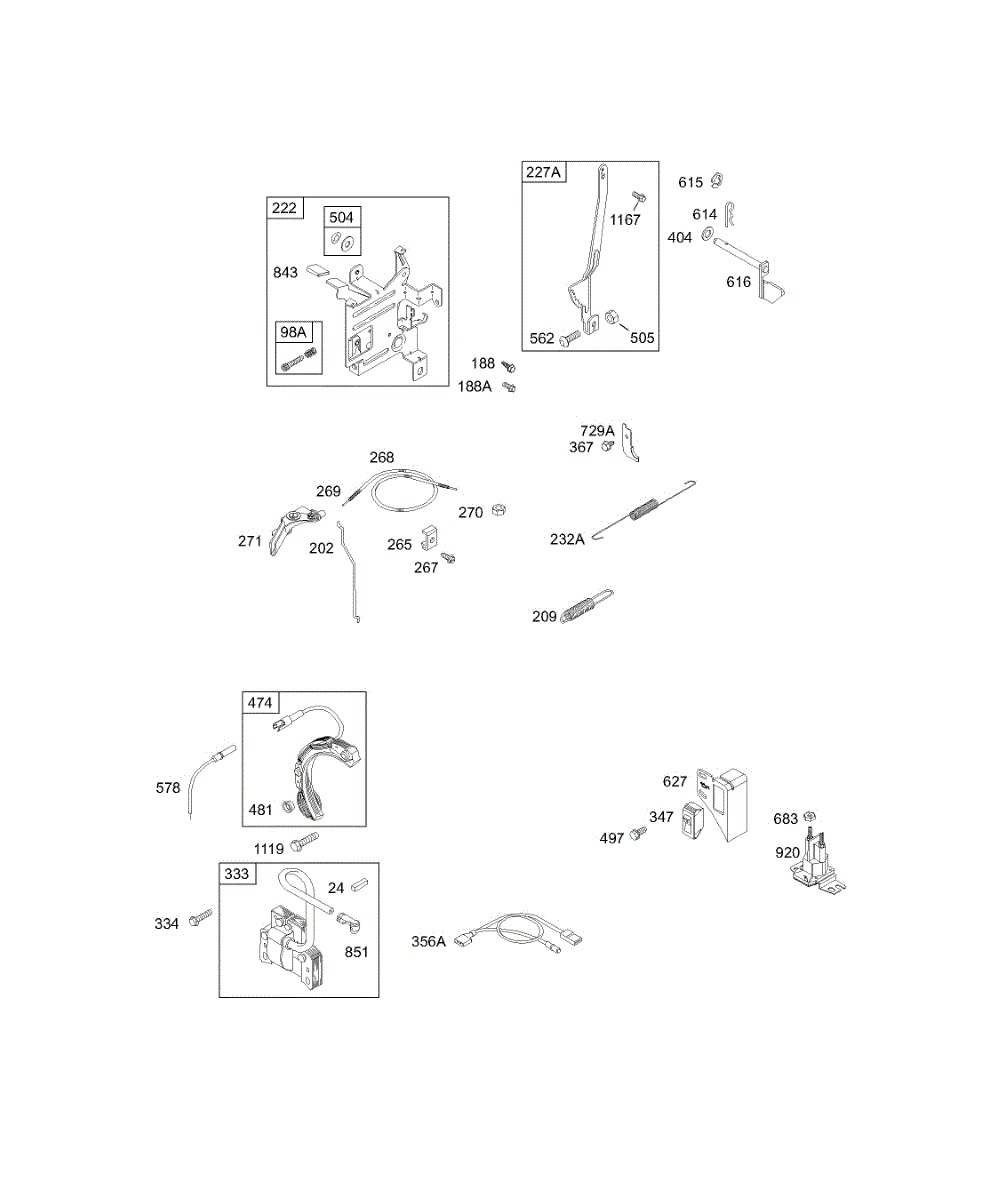

Parts for Briggs & Stratton 133437-1050-E2: Alternator, Controls, Governor Spring, Ignition Parts

The flywheel key is the component on outdoor equipment that keeps the flywheel connected to the crankshaft. Over time, this key may become damaged or broken, particularly if the engine experiences a forceful stop, like hitting a large stationary object. If the flywheel key breaks, the engine will not start. A slightly damaged flywheel key is noticeable through symptoms like misfiring, backfiring, or having no power. If any of these are occurring, the flywheel key should be replaced to prevent complete engine failure.A flywheel puller tool is required for this repair. Make sure the engine is cool before working on the flywheel. Wear safety gear, including gloves and eye protection. Disconnect the spark plug and remove the blower housing. Remove the flywheel mounting nut and set it aside. Take the recoil starter cup off the mower. Use the flywheel puller to remove the flywheel and access the flywheel key. Remove the broken flywheel and replace it with the new flywheel. Reverse the steps to put the mower back together.This flywheel key is made of an aluminum alloy and is sold as an individual part. It is designed for use in lawnmowers, lawn tractors, and other small engines manufactured by Briggs and Stratton, Toro, Lawn-Boy, Simplicity, MTD, and others.

This is a replacement part for the ignition coil on the small engine of outdoor power equipment. The magneto will generate electricity using magnets in the flywheel, which then produces high voltage to power the spark plugs. The parts of a magneto include the armature and the ignition. Primary and secondary coils are wrapped around the armature. Over time, many things could go wrong with the ignition coil. The capacitor or the rotating magnets could have issues or the wire between the magneto and the spark plug may have corroded. If there are problems starting the engine, it could be due to the magneto. This OEM ignition coil, also called a magneto armature, will work with many different types of outdoor power equipment. This includes generators, engines, pressure washers, tillers, and blowers. The part is compatible with many brands, including Cub Cadet, Toro, Simplicity, MTD, and Briggs & Stratton.

This is an authentic muffler deflector screw that is found in small engines for outdoor power equipment from Briggs & Stratton. This metal screw is designed to secure the muffler deflector to the flywheel. In select models, it may also be used to secure the starter clutch to the flywheel. The screw is durable but exposed to high heat and constant wear, which means that it can become damaged or worn with regular use. If the screw is lost or damaged, it will need to be replaced. It should always be replaced with a genuine OEM part. This OEM muffler deflector screw is manufactured by Briggs & Stratton to exact standards and is compatible with several models of small engines. It can be used with various models of blowers, pressure washers, generators, and snow throwers from Toro, Murray, and Briggs & Stratton. It is sold as an individual replacement part. To replace this screw, the flywheel cover will need to be removed. Then, if it is still present, the old screw will need to be removed and the new one can be installed. This screw requires a hex or Torx screwdriver to install. Always wear gloves and disconnect the spark plug for safety when performing engine repairs.

This screw is designed to be used on all sorts of lawn and garden equipment. The metal screw is durable and attaches to the muff guard bracket to keep it in place and stable while the equipment is being used. This screw can become damaged through overuse or wear and tear. It can also break or become stripped, which will require it to be replaced.Visually inspecting the area with the muff guard bracket is connected to the rest of the equipment will give information about whether the screw is broken or damaged. The screws can also be cleaned to be more visible so small problems are easier to pick up on. Sometimes the screws can become loose, which is another situation where a replacement is needed. Simply use a screwdriver to take out the old screw and replace it with a new one.This screw is a genuine OEM replacement part that is directly sourced from the manufacturer. It comes as an individual part. The screw can be used on snowblowers, lawnmowers, lawn tractors, tillers, pressure washers, leaf blowers, edgers, generators, wood chippers, and log splitters made by MasterCut, Simplicity, MTD, Snapper, Lawn-Boy, Wheel Horse, Cub Cadet, Toro, Craftsman, and Briggs & Stratton.

This genuine OEM replacement part is a spark plug terminal for a wide variety of small combustion engines. In a combustion engine, the spark plug generates a small electrical charge that creates enough power to start up the ignition and engage combustion. The plug connects to the ignition through the terminal. Spark plugs generate and then pass a small electrical current through to the ignition. Usually, the main issue with spark plugs is that this current hyper-extends and ends up frying the spark plug. However, if the terminal is damaged, the charge will not pass into the ignitor, and the engine will not turn. If the spark plug can carry a charge but the engine still won't turn, it's likely the terminal that needs replacing. This is an easy repair because the terminal should just snap on and off. If stuck, a pair of needle-nose pliers should make it easier. This high-quality replacement part is compatible with engines from Murray, Toro, Lawn Boy, and Briggs & Stratton. It is sourced from the original manufacturer and ships individually.

This genuine starter solenoid transfers electrical current from the battery to the starter during the engine starting process, allowing the engine to engage. This part could become worn over time or develop electrical malfunctions, which could eventually lead to a need for a full replacement. In the event that the solenoid goes bad, it could result in poor engine performance or not permit the engine to start at all. This replacement part could provide an exact fit for compatible lawn and garden units. This genuine OEM solenoid from Briggs & Stratton is manufactured to exact specifications. It is compatible with engines used in select models of generators and other lawn and garden equipment made by the brand. This genuine OEM part is sold individually and does not include any hardware or additional components. It is imperative to disengage the spark plug and allow the engine to cool before performing engine repairs like replacing the starter solenoid. A wrench or socket set will be required to disconnect the old solenoid and install the new unit and gloves should be worn for hand protection.
