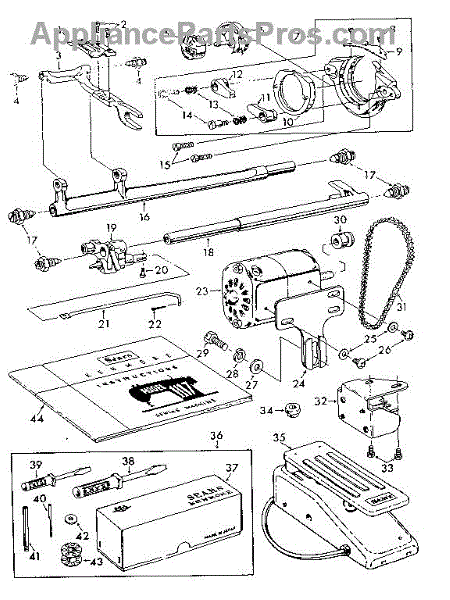

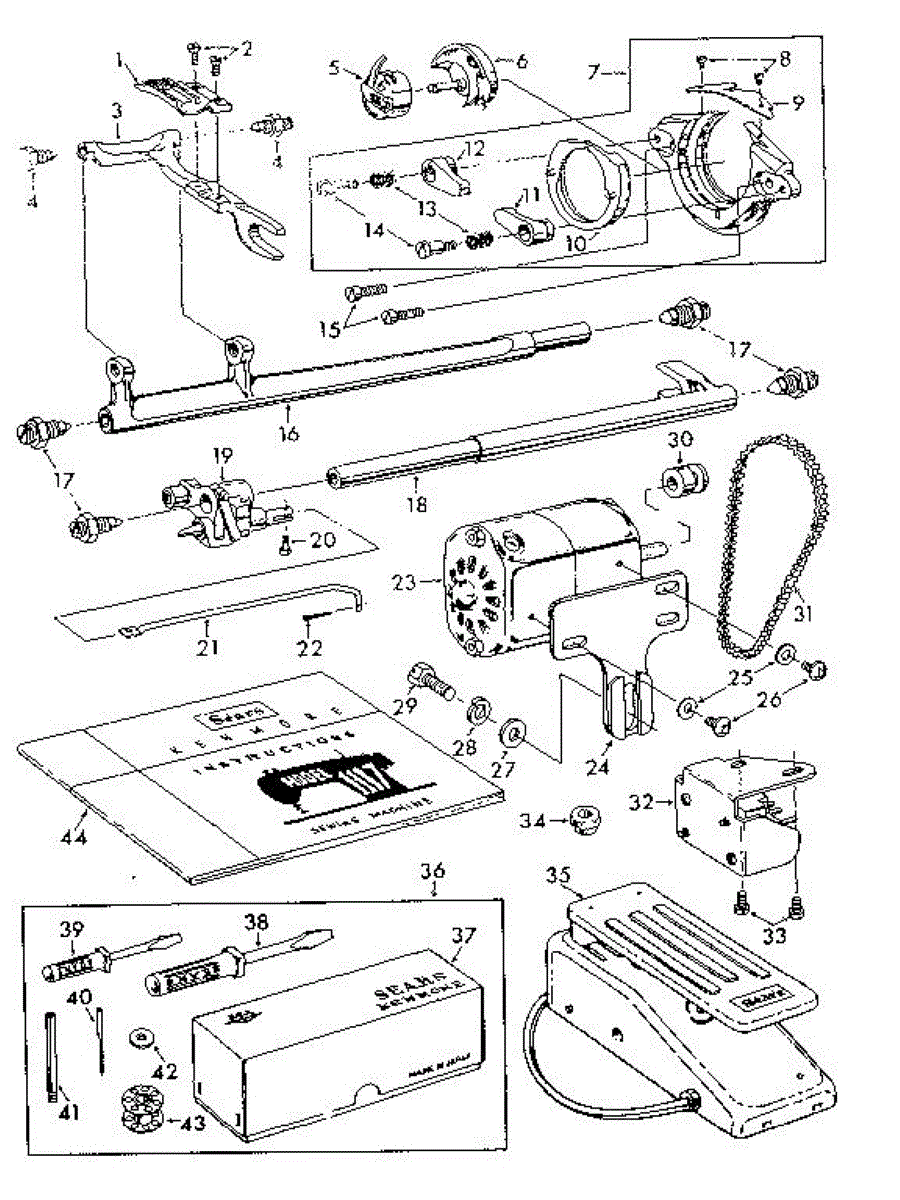

Parts for Kenmore 148.11170 (14811170, 148 11170): Attachment / Shuttle And Motor Parts

This part has been discontinued by the manufacturer and is no longer available.

This electromechanical timer controls washer cycle sequencing on compatible commercial machines, restoring timed wash, rinse and spin advances for reliable operation. Designed to match OEM function and mounting. What it does:

• Steps and times wash, rinse and spin intervals so the machine advances through cycles as designed
• Replaces a worn or non-advancing timer that causes cycles to stop or not progress
• Restores timed control of motor and valve circuits tied to cycle selection
• Works with 230V 50 Hz electrical systems and 3-cycle timer configurations

• One replacement timer assembly (as pictured)

• Disconnect power before servicing to avoid shock or injury
• Verify voltage and timer orientation match your machine before installation
• Handle wiring carefully; reconnect wires to the same terminals and secure mounting
