Parts for Kenmore 628.6417360 (6286417360, 628 6417360): Backguard & Cooktop Assembly Parts

Backguard & Cooktop Assembly
Electric Range

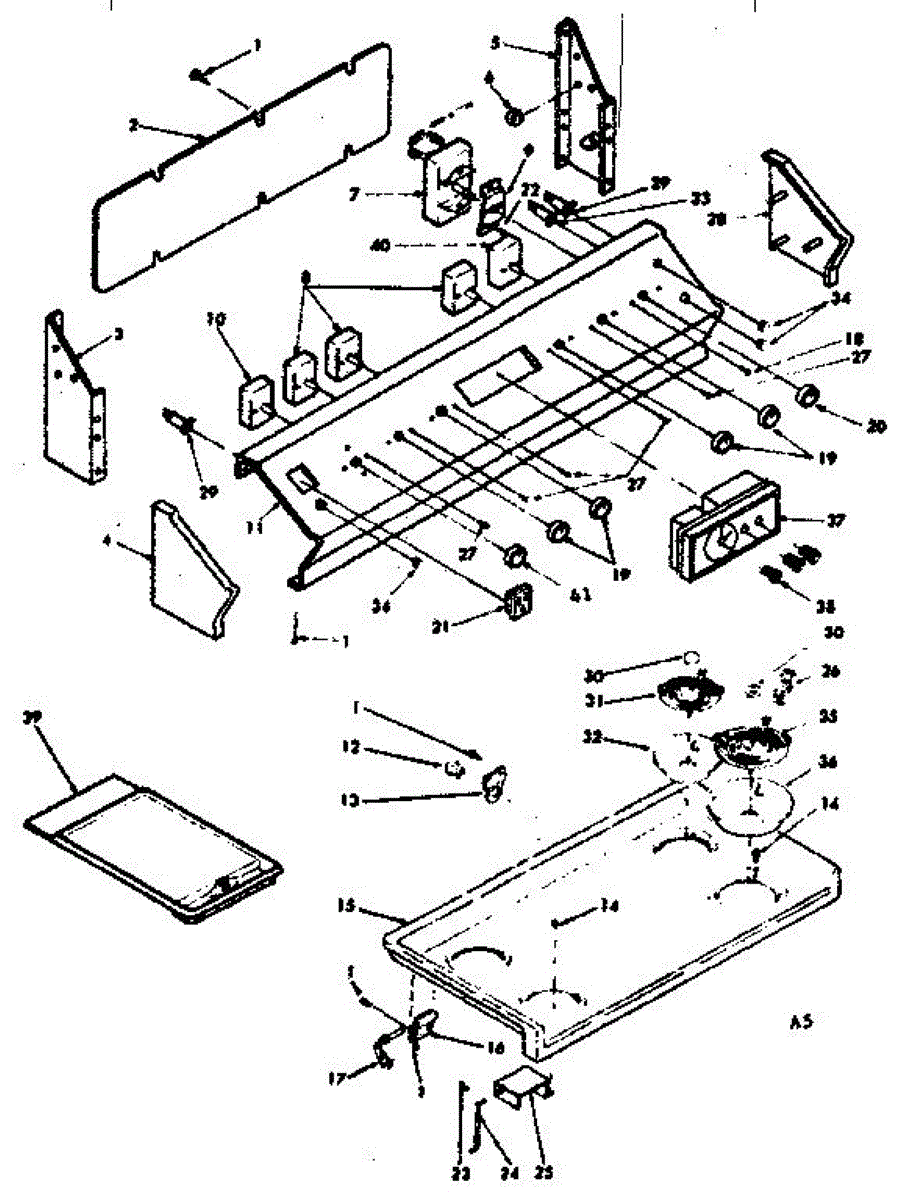

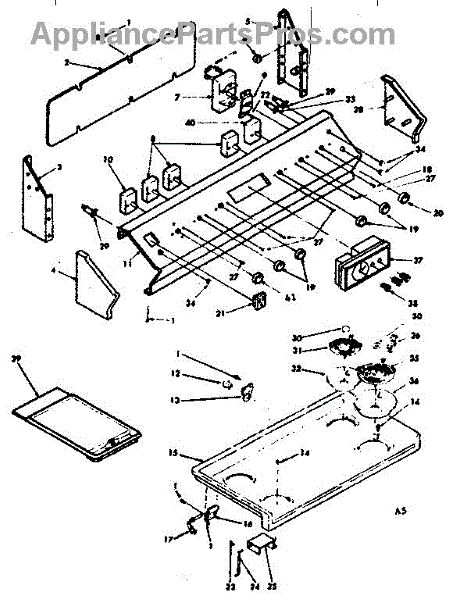

Parts for Kenmore 628.6417360 (6286417360, 628 6417360): Backguard & Cooktop Assembly Parts

Location on Diagram
Part Description
Price & Availability
1

Screw

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2

Wiring Cover

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3

Support

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4

End Cap

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5

Support

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6

Nut

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

8

Infinite Switch Top Burner Control Switch

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

9

Bracket

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

12

Relief

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13

Bracket

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

14

Screw

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15A

Cooktop

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15B

Cooktop

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15C

Cooktop

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15D

Cooktop

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

16

Retainer

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

17

Hinge Pin

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

18

Screw

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

19

Knob

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

20

Thermostat Knob

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

21

Outlet

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

22

Wing Nut

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

23

Pin 8Pk

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

24

Support

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

25

Bracket

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

26

Terminal Block

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

27

Screw 8Pk

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

28

End Cap

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

29

Light

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

30

Escutcheon

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

31A

Element

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

31B

Sm Top Unit

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

32

Surface Pan

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

32A

Pan And Ring Kit Complete

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

33

Pilot

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

34

Indicator

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

35A

Element

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

35B

Lg Top Unit

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

36

8" Drip Pan

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

37D

Motor 60 C

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

37E

Motor 50 C

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

38A

Bracket, Control

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

38

Knob

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

39

Griddle

By: Roper

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

40

Infinite Switch Top Burner Control Switch

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

NI

Cook Book

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

NI

Plate - Defrost

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
