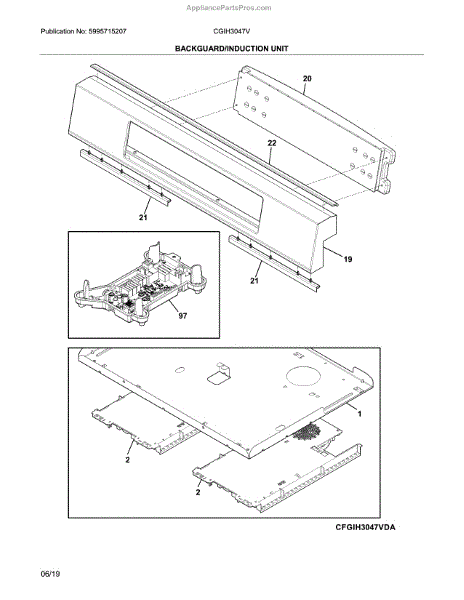

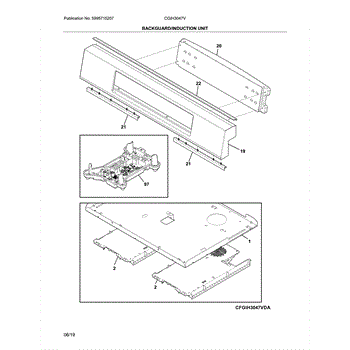

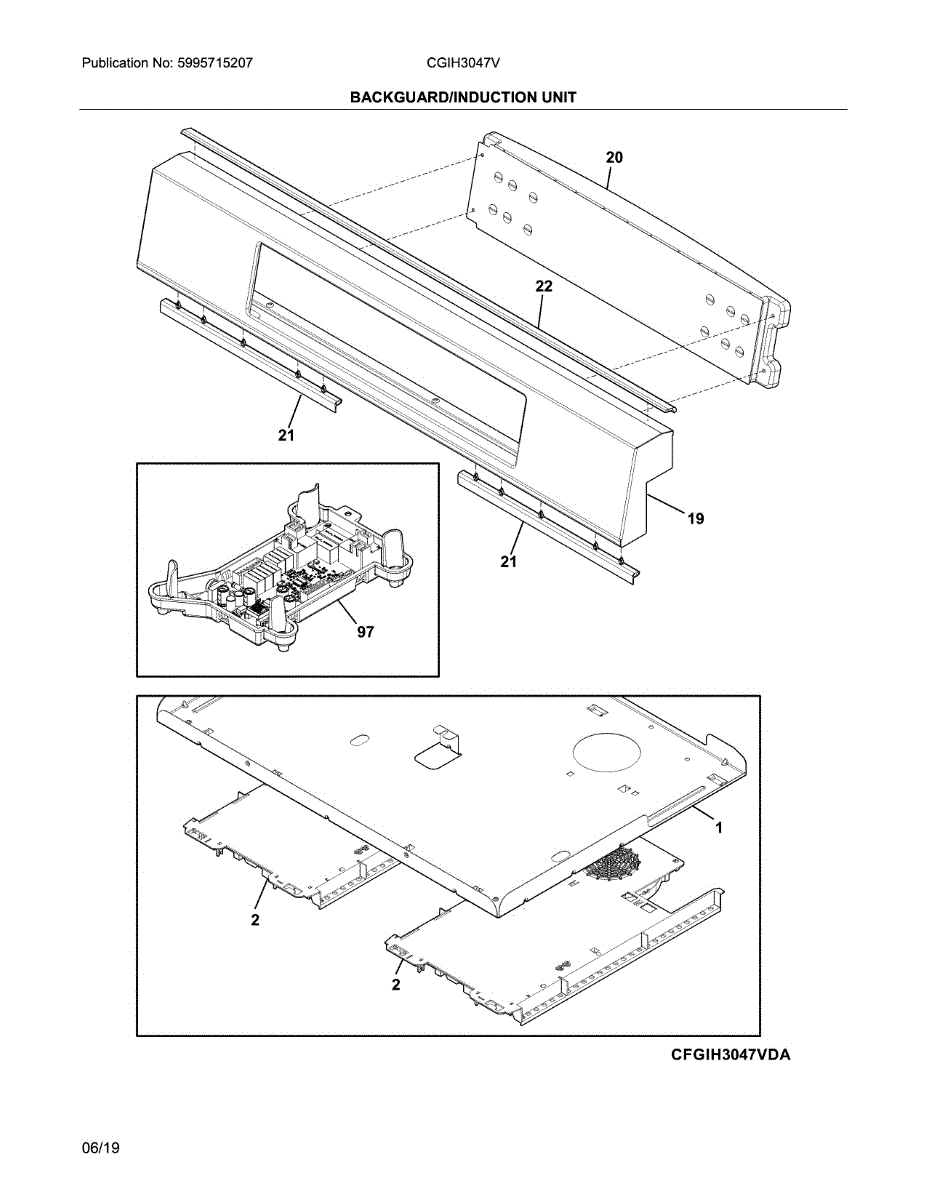

Parts for Frigidaire CGIH3047VFA: Backguard / Induction Unit Parts

This control panel console overlay replaces a worn or damaged front control surface to restore your appliance's user interface and button labels for accurate selection and easier cleaning. Fits the original front console area and interfaces with the range's control assembly. What it does

• Provides the labeled button/keypad surface used to select cook settings, timers, and oven functions.
• Restores worn, faded, or cracked button markings so controls are readable and responsive.
• Helps eliminate false presses or misreads caused by damaged overlay material.
• Works with the existing electronic control board and mounting hardware to maintain normal operation.

• One control panel console overlay

• Disconnect power at the breaker before starting to avoid shock or damage to electronics.
• Installation typically requires removing the console trim and detaching the old panel from the control board—handle connectors gently.
• Keep small screws and clips organized; test function before fully reassembling the appliance.

This electronic control board replaces the appliance's main control module to restore operational control and user interface functions. It manages cycle timing, user inputs and display signals to help return normal operation. What it does:

• Regulates timing and power to appliance cycles and functions.
• Interprets user commands from the console or keypad and operates relays.
• Sends/receives signals to displays, sensors and other control components.
• Common symptom: blank or unresponsive display, no cycle starts, or erratic operation.

• Always disconnect power at the breaker or unplug the appliance before servicing.
• Handle the board carefully; avoid static discharge and contact with circuitry.
• Verify wire locations with the wiring diagram or take a photo before disconnecting.

The Seal is an OEM part for Frigidaire ranges. It creates an airtight seal between the oven and cooktop surfaces to contain heat and contain spills. Located around the edges of the oven cavity and cooktop surfaces, the pliable and flexible seal conforms precisely to fit the contours and gaps.

Symptoms of a bad Range Seal include:

• Excess heat escaping from oven cavity around edges
• Discolored or melted seal from continuous heat exposure
• Gaps allowing spills to leak underneath surfaces
• Increased energy costs from heat loss

This replacement is also compatible with some Electrolux, Gibson, Kelvinator, and Kenmore models.

The Relay Board is an OEM part for Frigidaire ranges. It is an electronic component that controls the operation of various range functions and components by directing electrical currents through a network of relays.

Causes of a bad relay board include failure of electronic components over time due to continuous use, component fatigue, water damage, or surges/spikes in electrical current.

Symptoms of a bad range relay board include:

• Inoperable or unreliable oven/range functions such as bake, broil, warm, etc.
• Issues with cooktop burner ignition or flame level control
• Inconsistent or inaccurate temperature readings
• Error codes or diagnostic trouble codes appearing

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This is a replacement mounting screw used to secure the appliance power/control board, restoring a solid electrical board connection and preventing vibration or loose contacts. Ideal for repairs where the original screw is missing or damaged. What it does:

• Fastens the power/control board to the appliance chassis to keep connections stable
• Helps prevent board movement that can cause intermittent electrical issues or noise
• Restores proper mounting after service or component replacement

• Turn off and unplug the appliance before starting any repair
• Use appropriate screwdriver and avoid over-tightening to prevent board or thread damage
• Wear eye protection and keep small parts away from children and pets

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
