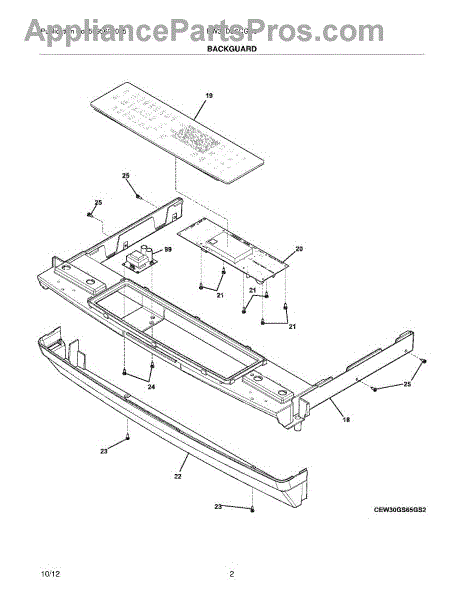

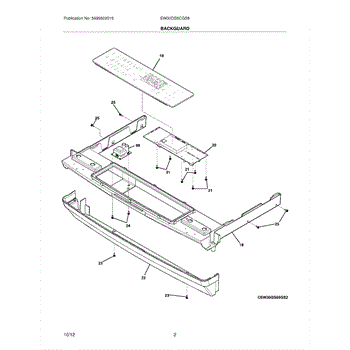

Parts for Electrolux EW30DS6CGS8: 03 - Backguard Parts

This electronic control board manages oven functions and display features so your range responds to temperature, timer and cooking commands. It replaces a failed console board to restore normal front-panel control and oven operation. What it does:

• Regulates oven functions including temperature input, bake/broil selection, timers and touchpad/display signals
• Processes user commands from the front console and sends signals to heating elements, relays or sensors
• Common symptom: unresponsive or erratic front-panel display, stuck or non-working controls
• Also used when oven settings won't change or timed cycles fail to start

• High-voltage component — disconnect power at the breaker before servicing
• Handle board by edges and avoid touching circuitry; ground yourself to prevent ESD damage
• Verify all wiring is reconnected to original terminals; secure mounting before restoring power

A single replacement mounting screw used to secure appliance panels, trim, or small brackets. Restores proper fastening so parts stay aligned and eliminates loose or rattling components. What it does:

• Fastens panels, brackets, or trim pieces to the appliance frame
• Secures components that vibrate or shift during normal use
• Helps stop rattling, misalignment, or gaps caused by a missing or loose screw
• Works as a direct hardware replacement where the OEM screw is required

• One screw

• Use the correct driver and size to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread damage
• Disconnect power or follow appliance safety procedures before accessing internal components
• Replace all like fasteners for best fit

This electronic control board replaces the oven's primary control module to restore timing, display, and bake/broil cycle control. It fixes issues where the range won't start, displays errors, or has unresponsive touch controls. What it does:

• Manages oven temperature settings, timed bake cycles, and user interface commands
• Controls relays and sends signals to heating elements and sensors
• Helps stop incorrect displays, unresponsive buttons, or intermittent operation
• Works with safety interlocks and diagnostics to maintain normal oven functions

• One electronic control board as shown

• Disconnect power at the breaker before accessing the control panel to avoid shock
• Handle the board by edges and avoid touching components to prevent ESD damage
• Confirm connector locations match before installing; secure mounting screws and connectors

This wire harness connects the refrigerator's control board to internal components, restoring electrical pathways so controls, lights and motors receive power. It replaces a damaged or worn harness to help bring circuits back to normal operation. What it does:

• Routes power and signals between the control board and components such as fans, lights and compressors
• Replaces frayed, burned or broken wiring that can cause intermittent or no operation
• Commonly used when the fridge has no power to certain functions or exhibits electrical faults
• Helps stop shorts or erratic behavior caused by damaged connectors or wiring

• One factory-style wire harness as shown

• Verify power is disconnected at the breaker before starting work
• Inspect connectors and routing; match terminals before reconnecting
• Keep wiring clear of sharp edges and moving parts; secure with existing clips or ties
