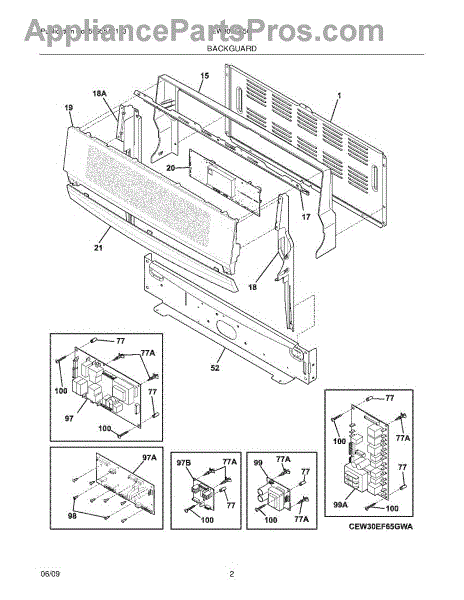

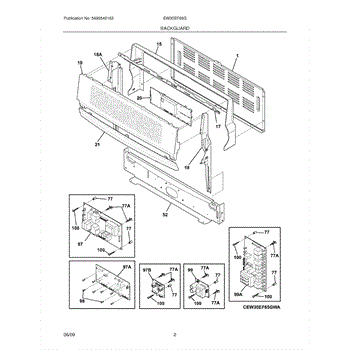

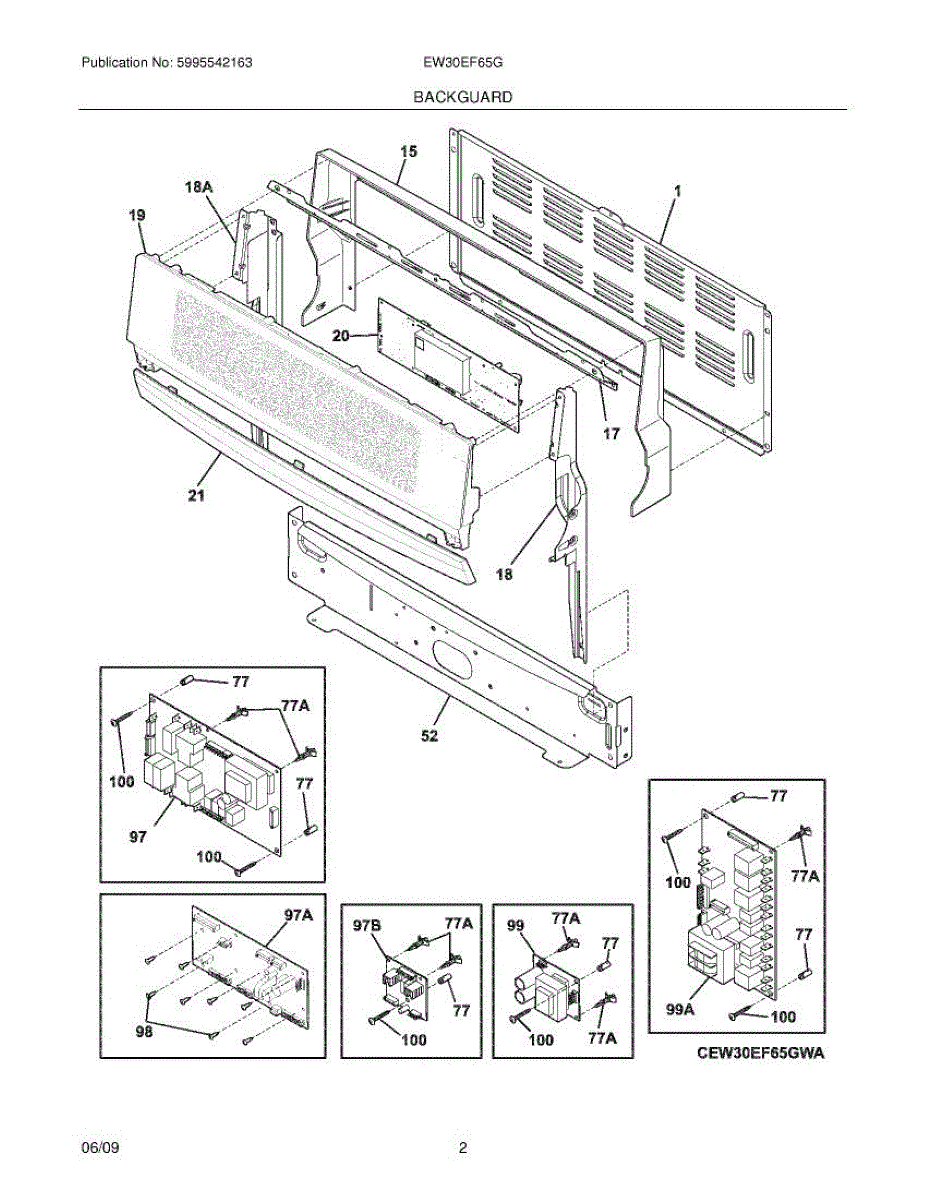

Parts for Electrolux EW30EF65GWD: 03 - Backguard Parts

This is a replacement oven control board from Frigidaire. The oven control board is responsible for controlling all aspects of oven operation and for carrying out user commands, such as setting timers, adjusting temperature, changing bake/cook cycles, and more. It also includes a digital display where the clock and timer are shown. As an electronic component, internal faults can develop over time.Symptoms of a failing control board include being unable to operate the oven, being unable to set a timer, incorrect or erratic operation, and more. Replacing the control board is relatively easy. The user will need to unplug the oven, and then pull it out from the wall. Remove the top access panel to reveal the back of the control board. Remove the mounting screws, disconnect the wires, and remove the old board. Install the new board.This genuine OEM part is sold individually. It is designed to fit Electrolux ovens.

This shield is a molded protective trim piece that helps cover and protect internal components from debris and moisture while keeping the surrounding cabinet areas neat. It restores the appliance's original fit-and-finish. What it does:

• Covers and protects internal cabinet components from spills, dust, and debris
• Helps direct water away from sensitive parts to reduce risk of corrosion or shorting
• Restores proper trim alignment and appearance after damage or wear
• Commonly replaced when cracked, warped, missing, or causing interference/noise

• One shield

• Disconnect power to the appliance before beginning any repair
• Remove any fasteners or clips holding the old shield; trim may be secured with screws or snap clips
• Handle edges carefully; use gloves to avoid cuts and protect the finish
• Reinstall in the original orientation and test operation before returning the appliance to service

This electronic control board regulates the refrigerator's functions and user interface, restoring reliable operation when the original board fails. Replacing a faulty board can stop erratic behavior and restore normal temperature and display control. What it does:

• Manages compressor, fan, defrost and other timed cycles to maintain proper cooling
• Processes user inputs and controls the display/LEDs
• Can stop erratic cycling, unresponsive controls, or incorrect temperature behavior
• Helps resume normal operation when the original board is damaged by power surges or component failure

• Disconnect power to the appliance before starting any work
• Handle the board by the edges and avoid static discharge; use an anti-static wrist strap if available
• Confirm connectors match and seat fully; do not force plugs

This electronic control board is the "brain" of the oven, managing cooking modes, temperature regulation, and the clock/timer display. Replacing a failed board restores proper heating and responsive controls for reliable day-to-day cooking.

• Controls bake/broil relays and regulates oven temperature using sensor feedback
• Powers and updates the clock, timer, and oven display
• Interprets keypad inputs for mode selection and temperature settings
• Common failure symptoms: oven won't heat or start a cycle, temperature is erratic, display is blank/flickering, buttons unresponsive, or beeping/error codes

• Disconnect power at the breaker before servicing; verify no voltage is present
• Use ESD precautions and handle the board by the edges
• Photograph wire connections and transfer any brackets/overlay from the original as required
• After installation, run a test bake to ensure proper operation and clear any stored errors

This is the electronic clock/timer that controls the oven. It manages bake and broil functions and provides the display and timing, helping restore proper heating and responsive controls when the original board fails. What it does:

• Controls oven heating by sending power to the bake and broil circuits based on user selections
• Drives the clock, temperature, and status display
• Interfaces with the keypad to run timed baking and other oven functions
• Common failure symptoms can include no display, unresponsive buttons, error codes, or an oven that won't start or heat consistently

• Electronic control board (clock/timer) module

• Disconnect power at the breaker before servicing
• Access the control through the console/control panel; remove mounting screws to reach the board
• Label or photograph wiring and move connectors one at a time to the new board
• Handle by the edges to avoid static damage; secure all mounts and test operation after reassembly

This electronic oven control board governs your range's heating functions and displays the time and timer. Replacing a failed board restores reliable bake/broil operation, accurate temperature control, and a responsive clock/timer interface. What it does:

• Controls bake/broil circuits to run selected cooking modes
• Monitors the oven temperature sensor and regulates heat to the set temperature
• Drives the time-of-day and countdown timer display
• Interprets keypad inputs for mode selection and settings
• Failure symptoms can include no heat or erratic heat, a blank or flickering display, or unresponsive buttons

• One electronic control board assembly

• Disconnect power at the breaker before servicing; verify no voltage is present
• Use anti-static precautions and handle the board by its edges
• Photograph wiring and transfer connectors one at a time to the same positions
• Reuse the existing mounting hardware and any faceplate/overlay as required; set the clock after restoring power

This is a replacement mounting screw used to secure the appliance power/control board, restoring a solid electrical board connection and preventing vibration or loose contacts. Ideal for repairs where the original screw is missing or damaged. What it does:

• Fastens the power/control board to the appliance chassis to keep connections stable
• Helps prevent board movement that can cause intermittent electrical issues or noise
• Restores proper mounting after service or component replacement

• Turn off and unplug the appliance before starting any repair
• Use appropriate screwdriver and avoid over-tightening to prevent board or thread damage
• Wear eye protection and keep small parts away from children and pets

A single replacement mounting screw used to secure appliance panels, trim, or small brackets. Restores proper fastening so parts stay aligned and eliminates loose or rattling components. What it does:

• Fastens panels, brackets, or trim pieces to the appliance frame
• Secures components that vibrate or shift during normal use
• Helps stop rattling, misalignment, or gaps caused by a missing or loose screw
• Works as a direct hardware replacement where the OEM screw is required

• One screw

• Use the correct driver and size to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread damage
• Disconnect power or follow appliance safety procedures before accessing internal components
• Replace all like fasteners for best fit

This wiring harness connects electrical components to restore reliable power and signal paths inside the appliance. It replaces damaged or worn wiring to help eliminate intermittent operation and restore proper function. What it does:

• Carries power and control signals between components so switches, lights, motors and sensors can operate
• Helps stop intermittent or lost power to controls and lights caused by damaged wiring
• Prevents arcing or shorts from frayed or broken conductors
• Supports safe, consistent operation of motors, fans, valves and other electrical parts

• Always disconnect power to the appliance before beginning work
• Match connector shapes and routing to the original harness; avoid pinching or sharp bends
• Secure harness away from moving parts and heat sources using existing clips or ties

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
