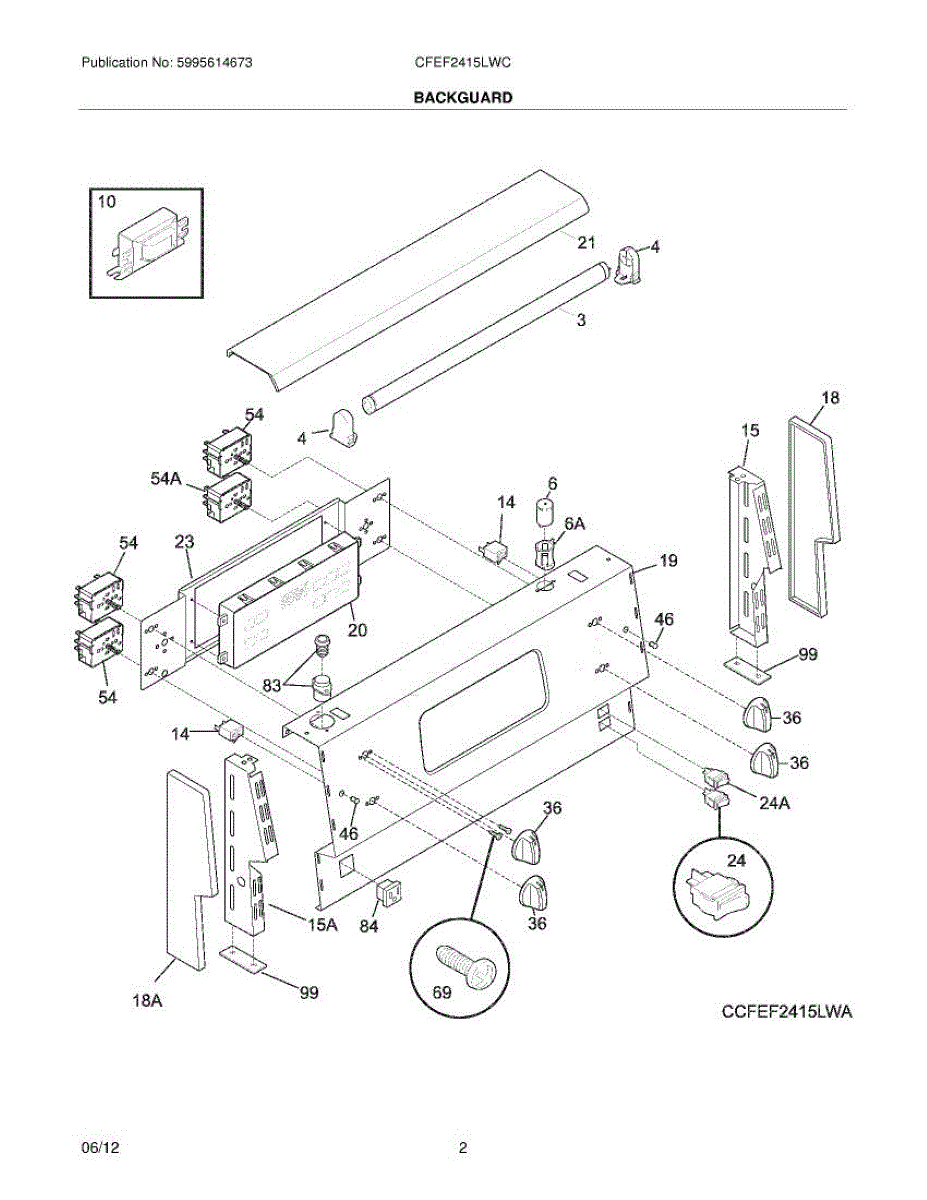

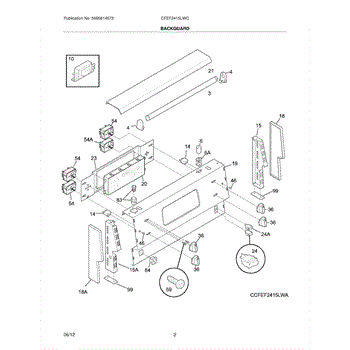

Parts for Frigidaire CFEF2415LWC: 03 - Backguard Parts

This electronic clock timer assembly restores timed cooking and the front-panel clock display on your range or wall oven. It provides clear timekeeping and enables timed functions like cook time and delay-start for consistent results. What it does:

• Runs the oven clock display so you can see current time and set timers.
• Controls timed cooking functions such as cook time and delay-start.
• Enables audible timer alerts for finished cycles or reminders.
• Replaces a failed or unresponsive console clock/timer to restore normal timed operation.

• One clock timer assembly (console control)

• Disconnect power to the appliance before starting any work to avoid shock.
• Access typically requires removing the control panel/console; handle the glass and trim carefully.
• Match the part number and connector type before installation; secure all wire harnesses and grounding.

This replacement light lens covers and protects an interior appliance light, restoring a finished look and shielding the bulb from spills and debris. It helps maintain proper light diffusion and prevents direct contact with the bulb. What it does:

• Protects the interior light bulb from food, water and impact
• Diffuses light for more even illumination inside the appliance
• Prevents direct contact with a hot bulb to reduce burn risk
• Replaces cracked, cloudy or missing lenses that cause glare or poor lighting

• One light lens (single piece)

• Disconnect power or unplug the appliance before servicing to avoid shock
• Handle the lens carefully to avoid cracking; use a soft cloth when installing
• If the lens is held by screws or clips, save and reuse the fasteners unless replacement is required

A push-button switch that restores user control functions by completing or breaking electrical circuits. Replaces a worn or failed control switch to help restore normal operation and user input response. What it does:

• Acts as the user-operated control input to start or stop a function when pressed
• Opens or closes the electrical circuit that enables the associated control or feature
• Common symptom: unresponsive controls or functions that do not start when buttons are pressed
• May cause intermittent operation or no response if contacts are worn or corroded

• One replacement push-button switch

• Disconnect power to the appliance before attempting any service
• Use appropriate tools and basic electrical safety; avoid bending terminals or forcing the new part into place

This replacement switch restores reliable on/off control for a specific function in the appliance, helping the selected feature respond consistently when operated.

• Controls electrical power to a designated circuit or component when actuated
• Sends an on/off signal to the control or directly to the component it operates
• Failure symptoms can include no response, intermittent operation, or a switch that feels loose, sticks, or is hard to press
• May show signs of heat damage, arcing, or a burning smell near the control area when faulty

• Disconnect power at the breaker before servicing to avoid electrical shock
• Access location varies by model; remove the control panel, backguard, or front panel as needed
• Label or photograph wire positions and transfer them one at a time to the new switch
• After reassembly, restore power and test operation of the associated function

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts
