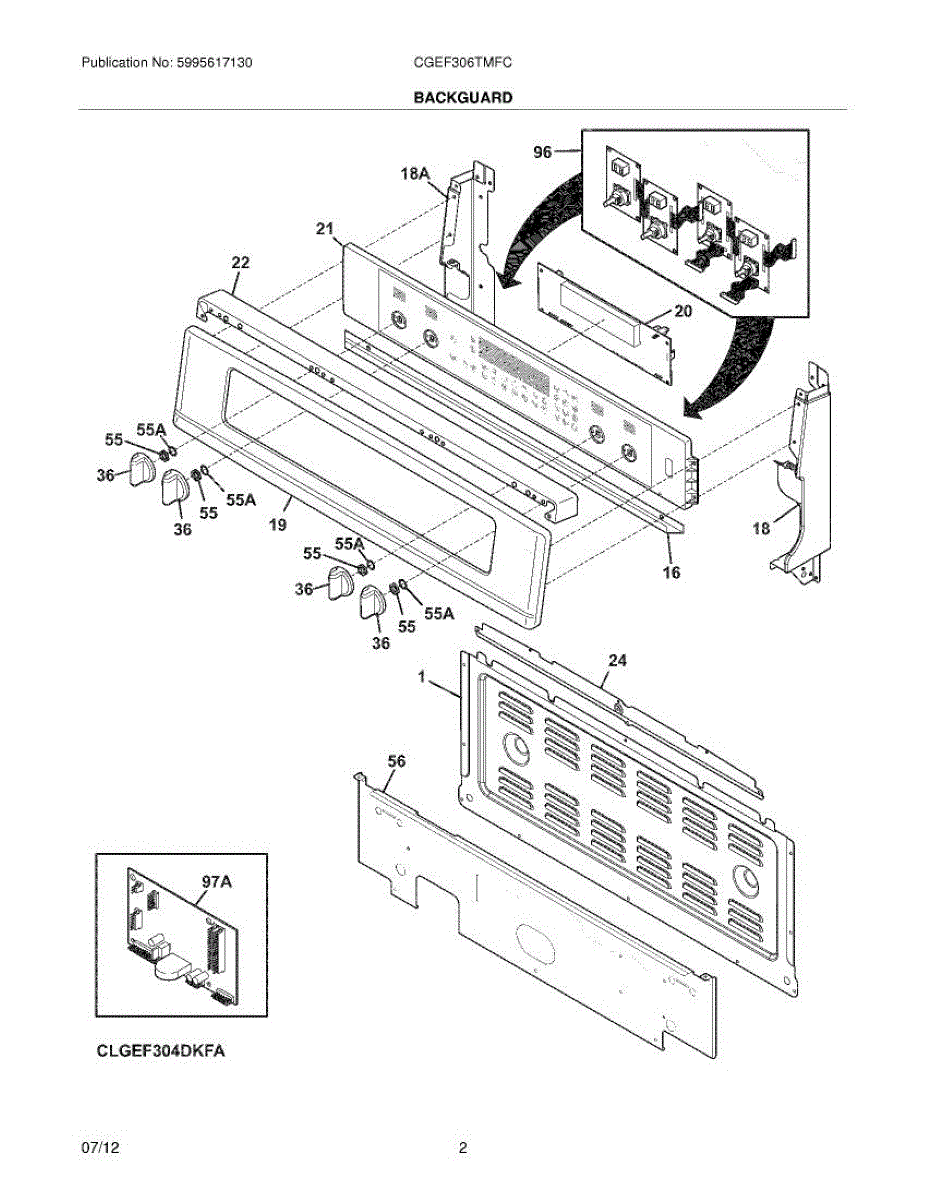

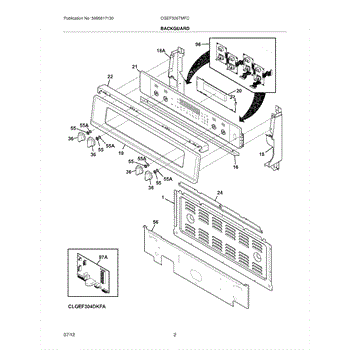

Parts for Frigidaire CGEF306TMFC: 03 - Backguard Parts

This electronic control board manages the oven's front console functions so your range responds correctly to touchpad commands, displays status, and controls timed cycles. It restores normal operation of the user interface and control functions. What it does:

• Processes touchpad/knob inputs and sends signals to heating and timing systems
• Drives the front display so time, temperature, and cycle info are visible
• Enables start/stop and timed-cook features tied to the console
• Helps resolve symptoms like unresponsive controls, blank or erratic display, or inability to start cycles

• One electronic control board / console control assembly as shown

• Disconnect power at the breaker or unplug the appliance before servicing
• Handle the board by its edges and avoid touching components; use anti-static precautions if available
• Reuse existing mounting hardware and connectors unless damaged—confirm fit before final assembly

This control mounting lock secures the washer control or door latch area so the machine runs safely and reliably. It replaces a worn or broken mounting lock to restore proper control-panel or latch stability during cycles. What it does:

• Holds the washer control or latch assembly firmly in place to prevent movement and intermittent connections
• Helps maintain reliable electronic or mechanical engagement during start and spin cycles
• Common symptom: control panel or door area feels loose, intermittently unseated, or causes error codes related to a loose latch/control
• Prevents excess vibration or shifting of the control/latch that can lead to premature wear

• One control mounting lock

• Disconnect power and water before servicing to avoid shock or injury
• Access may require removing the cabinet or control panel; follow for safe disassembly
• Inspect surrounding clips and connectors; replace any damaged fasteners for a secure fit

This control mounting hex nut secures the burner or oven control to the control panel, keeping the shaft stable so the knob turns smoothly and the switch stays properly aligned.

• Threads onto the control/infinite switch or thermostat bushing to fasten it to the panel
• Prevents the control from rotating or shifting when the knob is turned
• Replace if the original nut is missing, stripped, rounded, or corroded
• Common signs: loose or wobbly knob, switch spins in the panel, or misaligned knob indexing

• Disconnect power; for gas appliances, also shut off gas before servicing
• Pull off the knob and any trim; support the control body from behind the panel while removing/installing the nut
• Start the new nut by hand to avoid cross-threading; tighten snugly with the correct-size wrench—do not overtighten
• The control sits square in the panel and the knob operates smoothly before restoring power

This wire harness is the factory replacement wiring assembly that reconnects electrical components for reliable power and signal flow. It restores proper connections where damaged or worn wiring causes intermittent or failed operation. What it does:

• Carries power and control signals between appliance components so circuits work as designed
• Replaces damaged, frayed, or burnt wiring that can cause intermittent operation or component failure
• Helps resolve symptoms such as no power to a component, intermittent operation, or fault/error codes related to open or shorted circuits
• Maintains factory connector fit and routing to prevent loose connections and arcing

• Always disconnect power to the appliance before starting work to avoid shock or damage
• Compare the new harness to the old one to confirm connector types, lengths, and clip locations before installation
• Route and secure wiring per the OEM routing to avoid chafing, pinching, or contact with hot surfaces

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts
